NS-Z8-02
The NS-Z8-02 is a high-precision capacitive sensor designed for Z-axis motion control, offering exceptional resolution and linearity for demanding applications.
Save to Favorites
Overview

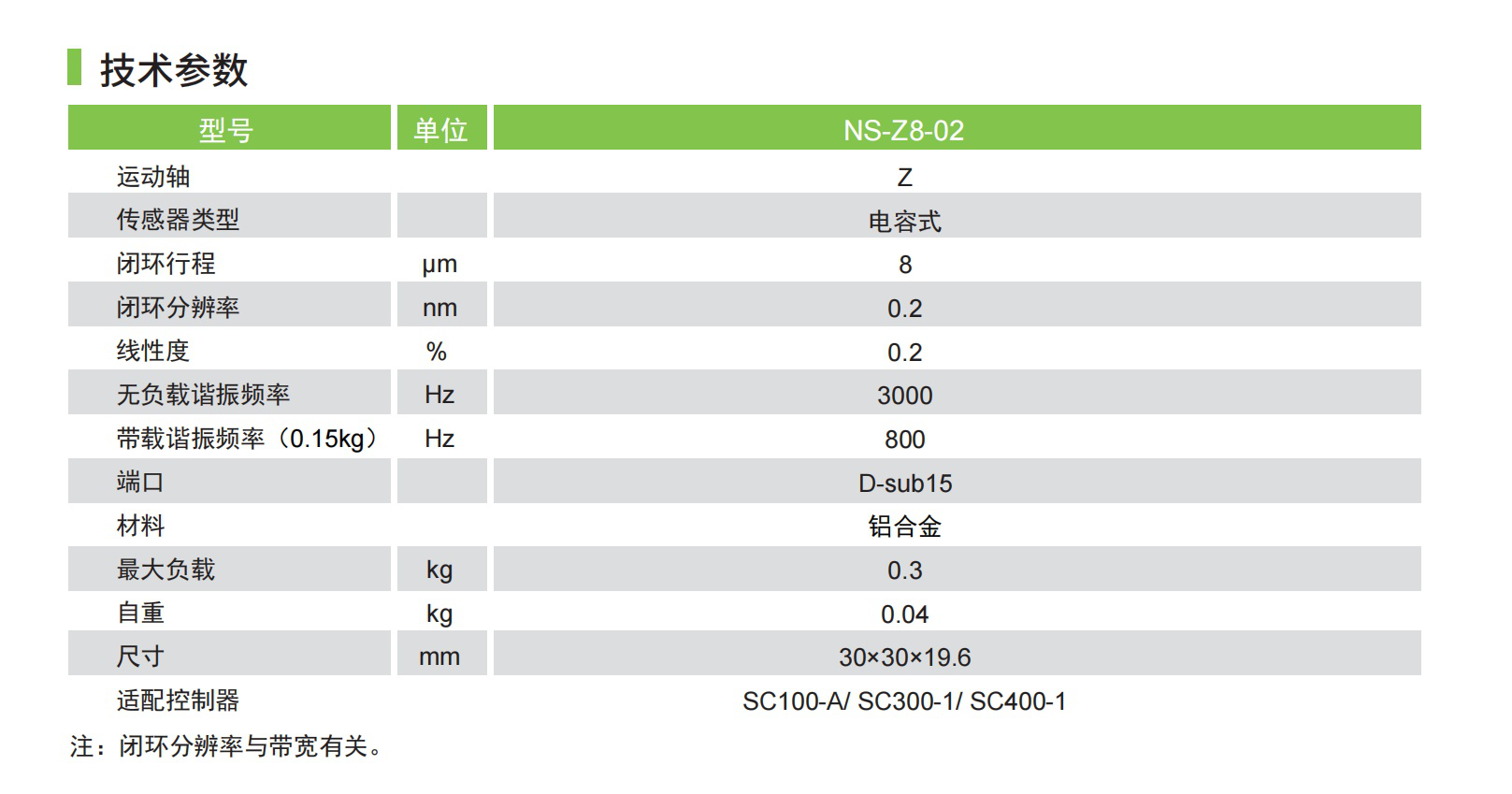

Specifications
| Parameter | Value |
|---|---|
| Motion Axis | Z |
| Sensor Type | Capacitive |
| Closed-loop Travel (μm) | 8 |
| Closed-loop Resolution (nm) | 0.2 |
| Linearity (%) | 0.2 |
| No-load Resonant Frequency (Hz) | 3000 |
| Loaded Resonant Frequency (Hz) | 800 |
| Port | D-sub15 |
| Material | Aluminum Alloy |
| Maximum Load (kg) | 0.3 |
| Weight (kg) | 0.04 |

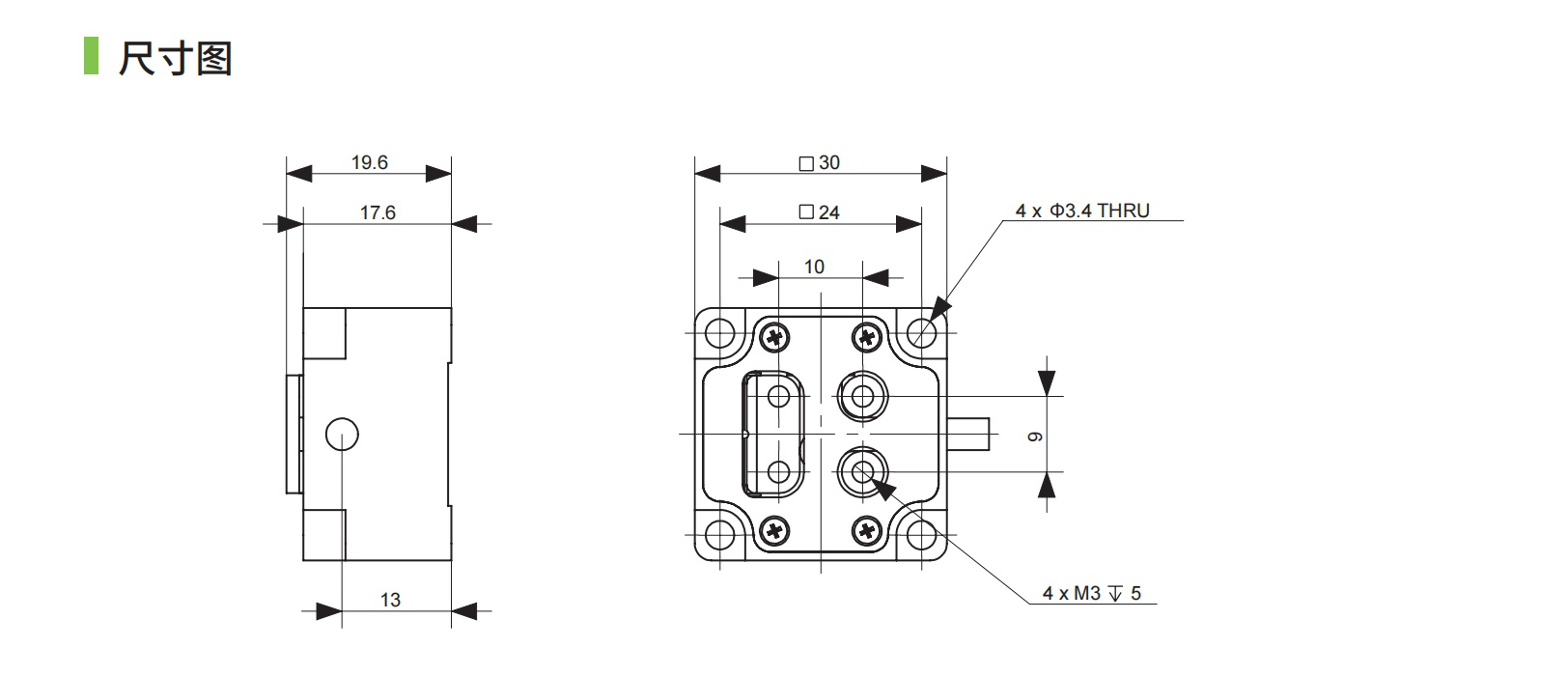

| Dimensions (mm) | 30×30×19.6 |
