NS-Z5-01
The NS-Z5-01 is a high-precision capacitive sensor designed for Z-axis motion control, offering exceptional resolution and stability for various applications.
Save to Favorites
Overview

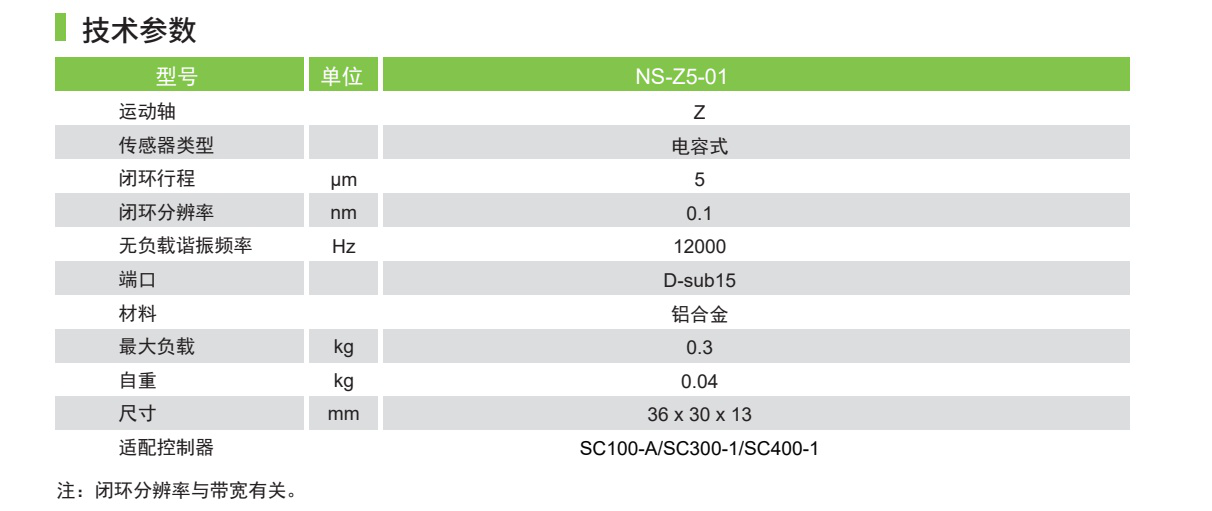

Specifications
| Parameter | Value |
|---|---|
| Motion Axis | Z |
| Sensor Type | Capacitive |
| Closed-loop Travel (μm) | 5 |
| Closed-loop Resolution (nm) | 0.1 |
| No-load Resonant Frequency (Hz) | 12000 |
| Port | D-sub15 |
| Material | Aluminum alloy |
| Maximum Load (kg) | 0.3 |
| Self Weight (kg) | 0.04 |

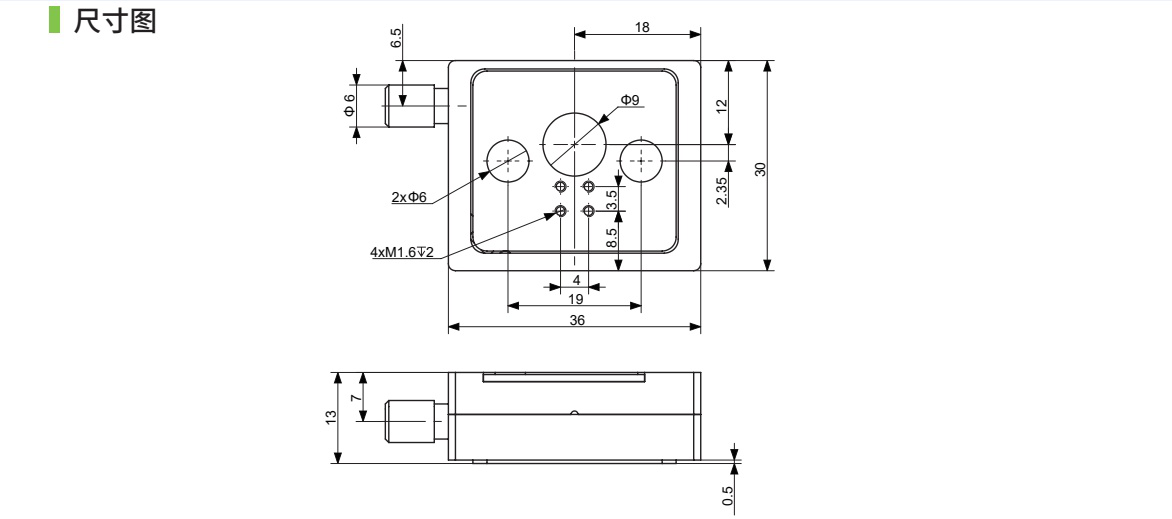

| Dimensions (mm) | 36x30x13 |
| Compatible Controller | SC100-A/SC300-1/SC400-1 |
