NS-Z25-01
The NS-Z25-01 is a high-precision capacitive sensor actuator designed for Z-axis movement, offering exceptional resolution and linearity for precise applications.
Save to Favorites
Overview

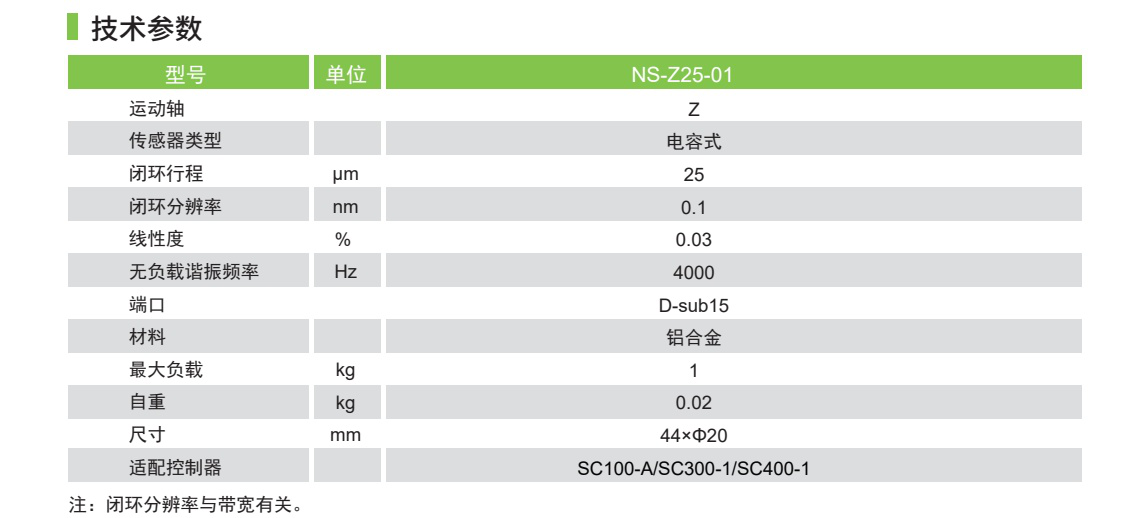

Specifications
| Parameter | Value |
|---|---|
| Motion Axis | Z |
| Sensor Type | Capacitive |
| Closed-loop Travel (μm) | 25 |
| Closed-loop Resolution (nm) | 0.1 |
| Linearity (%) | 0.03 |
| No-load Resonance Frequency (Hz) | 4000 |
| Port | D-sub15 |
| Material | Aluminum Alloy |
| Maximum Load (kg) | 1 |
| Self-weight (kg) | 0.02 |

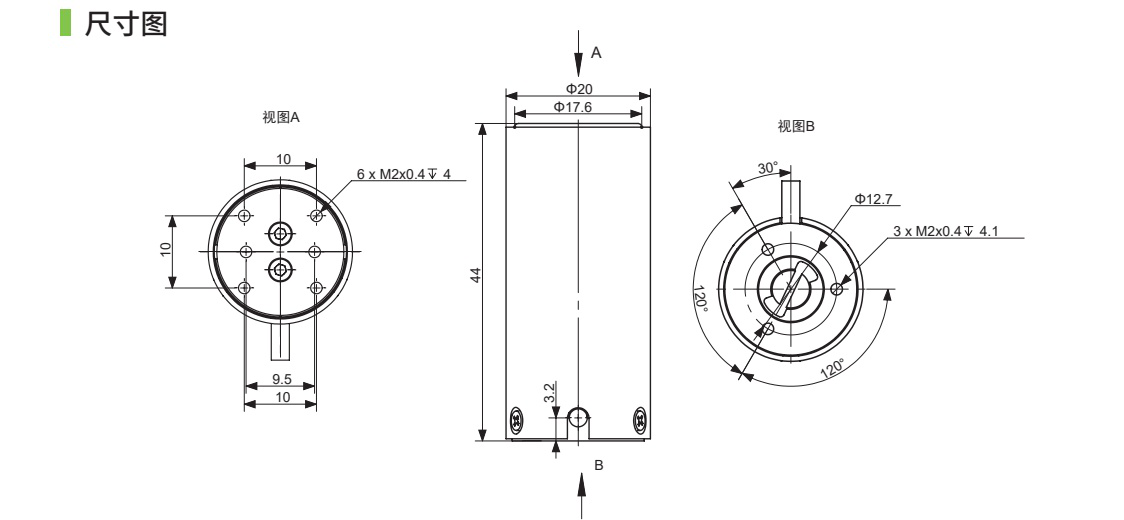

| Dimensions (mm) | 44×Φ20 |
| Compatible Controller | SC100-A/SC300-1/SC400-1 |
