NS-XY400-01
The NS-XY400-01 is a high-precision XY-axis motion platform designed for applications requiring accurate positioning and stable performance. It features a capacitive sensor type and is constructed with aluminum alloy for durability.
Save to Favorites
Overview

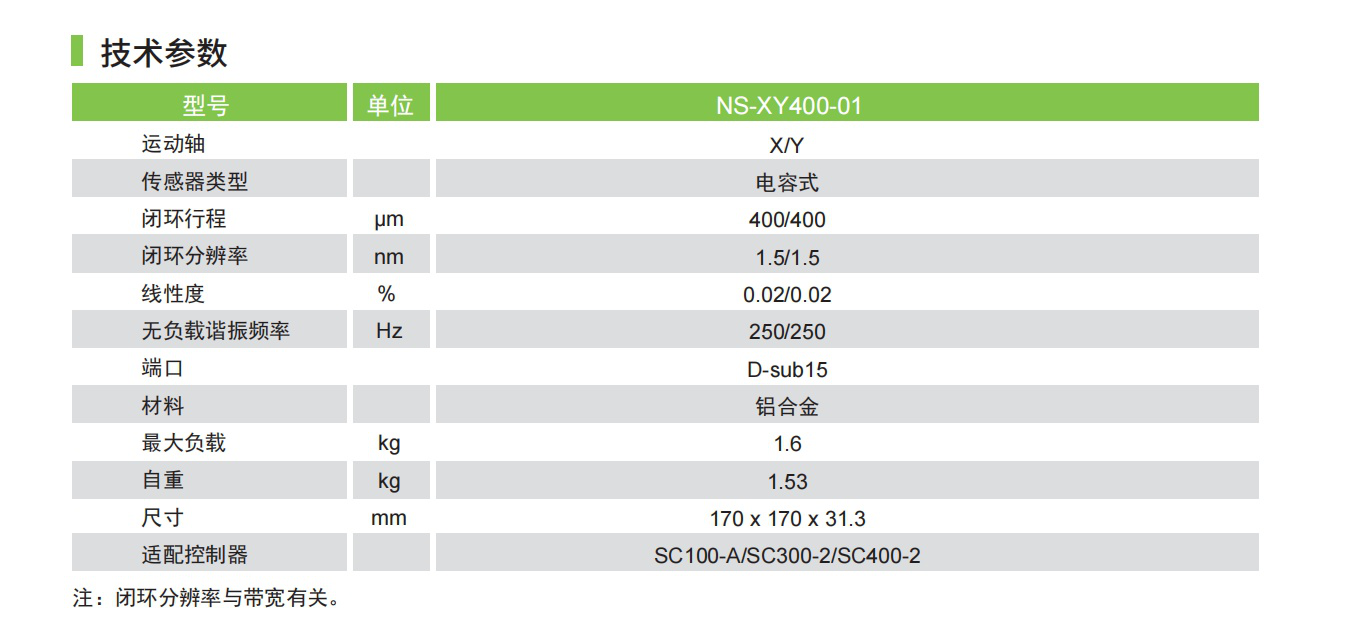

Specifications
| Parameter | Value |
|---|---|
| Motion Axis | X/Y |
| Sensor Type | Capacitive |
| Closed-loop Travel (μm) | 400/400 |
| Closed-loop Resolution (nm) | 1.5/1.5 |
| Linearity (%) | 0.02/0.02 |
| No-load Resonant Frequency (Hz) | 250/250 |
| Port | D-sub15 |
| Material | Aluminum Alloy |
| Maximum Load (kg) | 1.6 |
| Weight (kg) | 1.53 |

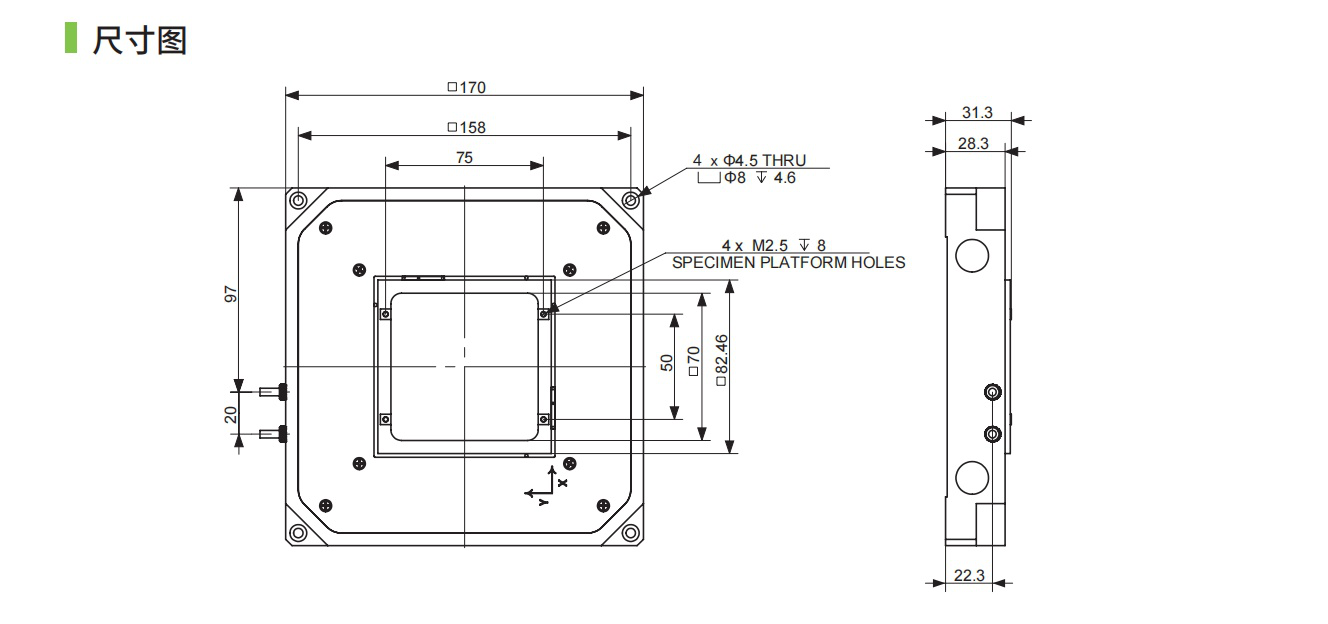

| Dimensions (mm) | 170×170×31.3 |
| Compatible Controller | SC100-A/SC300-2/SC400-2 |
