NS-XY25-01
The NS-XY25-01 is a high-precision XY motion platform designed for applications requiring accurate positioning and stability. It features a compact design and advanced capacitive sensors for precise control.
Save to Favorites
Overview

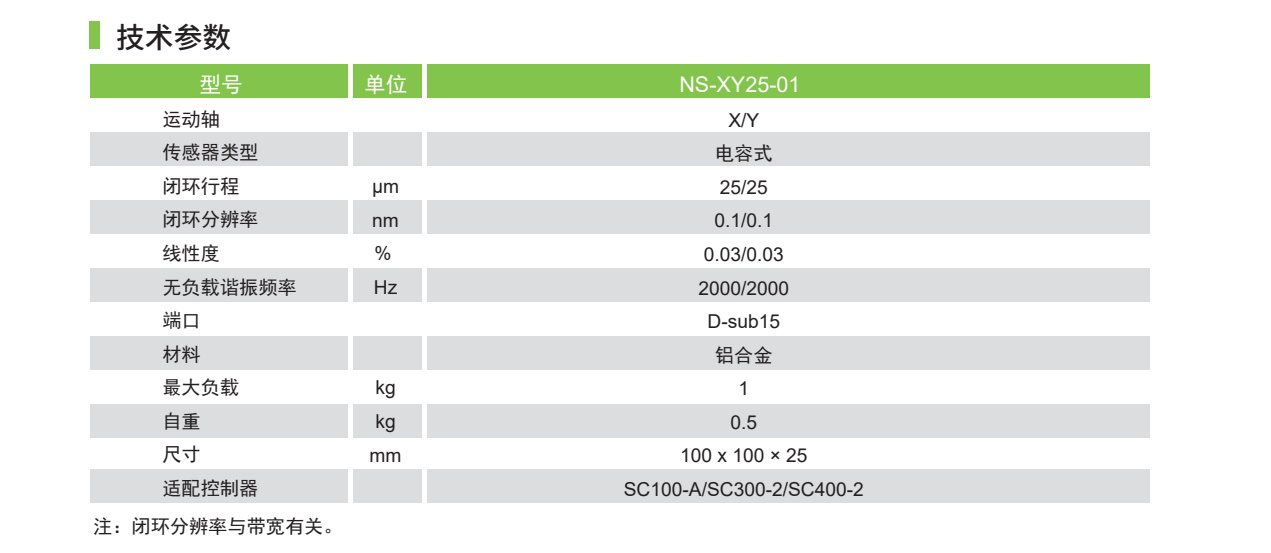

Specifications
| Parameter | Value |
|---|---|
| Motion Axis | X/Y |
| Sensor Type | Capacitive |
| Closed-loop Travel (μm) | 25/25 |
| Closed-loop Resolution (nm) | 0.1/0.1 |
| Linearity (%) | 0.03/0.03 |
| No-load Resonant Frequency (Hz) | 2000/2000 |
| Port | D-sub15 |
| Material | Aluminum alloy |
| Maximum Load (kg) | 1 |
| Self Weight (kg) | 0.5 |

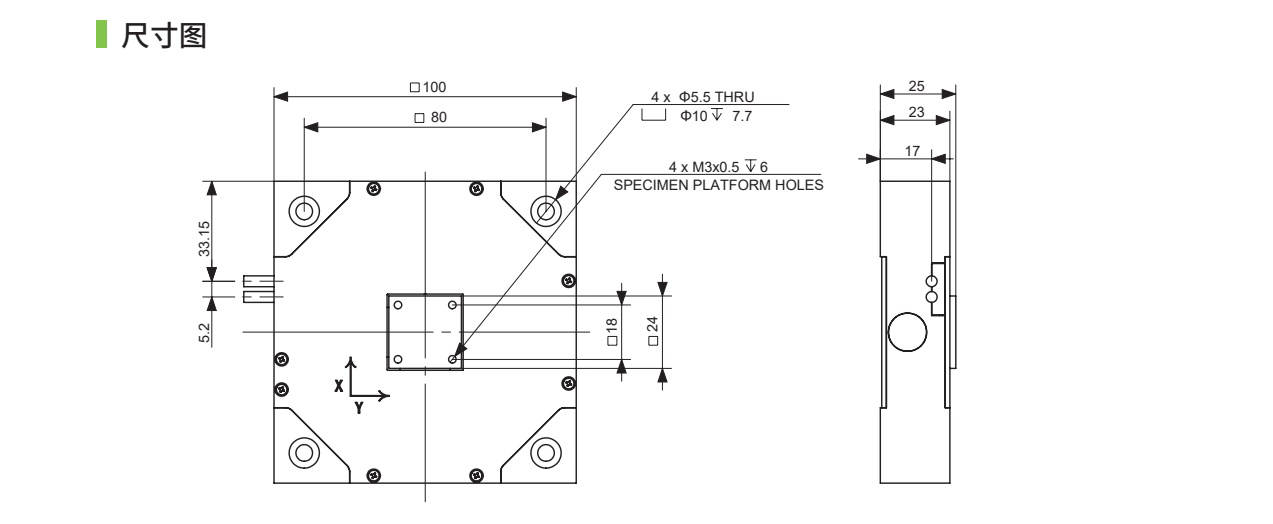

| Dimensions (mm) | 100×100×25 |
| Compatible Controllers | SC100-A/SC300-2/SC400-2 |
