NNS-XY200-02
The NNS-XY200-02 is a precision XY motion platform designed for high-accuracy positioning applications. It features capacitive sensors and a robust aluminum alloy construction, ensuring reliable performance in demanding environments.
Save to Favorites
Overview

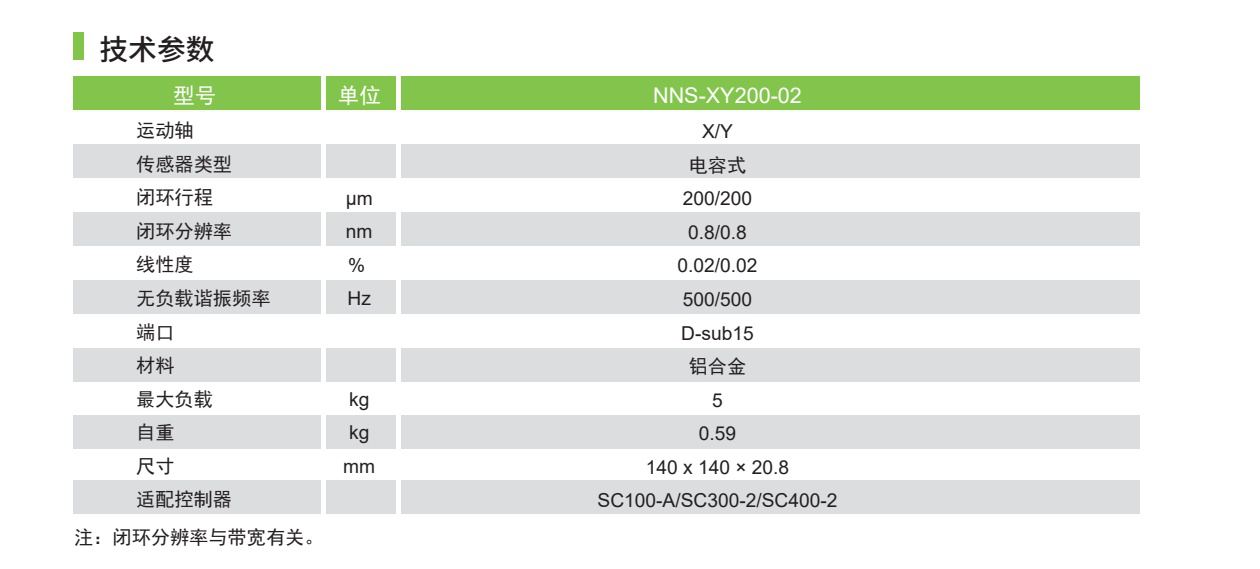

Specifications
| Parameter | Value |
|---|---|
| Motion Axis | X/Y |
| Sensor Type | Capacitive |
| Closed-loop Travel (μm) | 200/200 |
| Closed-loop Resolution (nm) | 0.8/0.8 |
| Linearity (%) | 0.02/0.02 |
| No-load Resonant Frequency (Hz) | 500/500 |
| Port | D-sub15 |
| Material | Aluminum Alloy |
| Maximum Load (kg) | 5 |
| Weight (kg) | 0.59 |

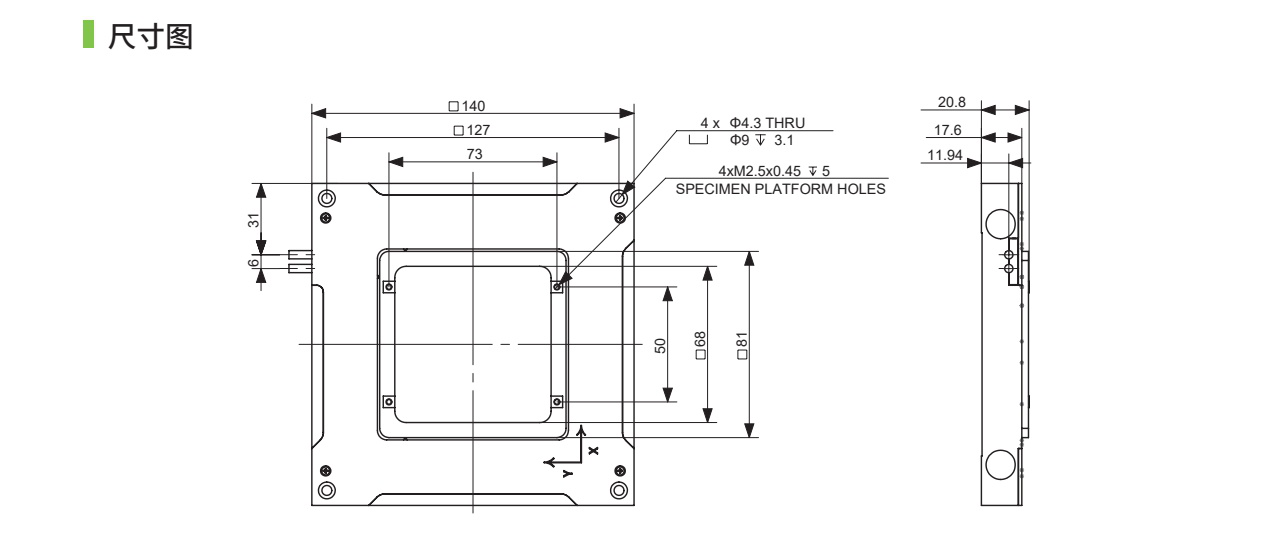

| Dimensions (mm) | 140×140×20.8 |
| Compatible Controller | SC100-A/SC300-2/SC400-2 |
