NS-XY100Z20-01
The NS-XY100Z20-01 is a precision motion platform designed for XYZ axis movement, featuring high resolution and stability for applications requiring precise positioning.
Save to Favorites
Overview
Specifications

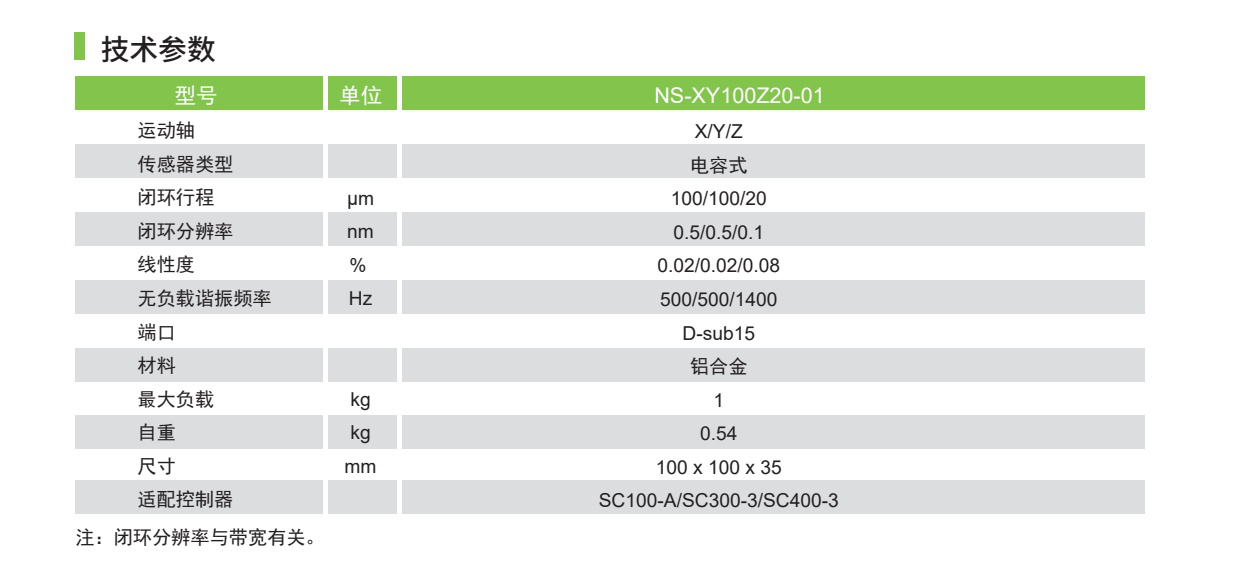

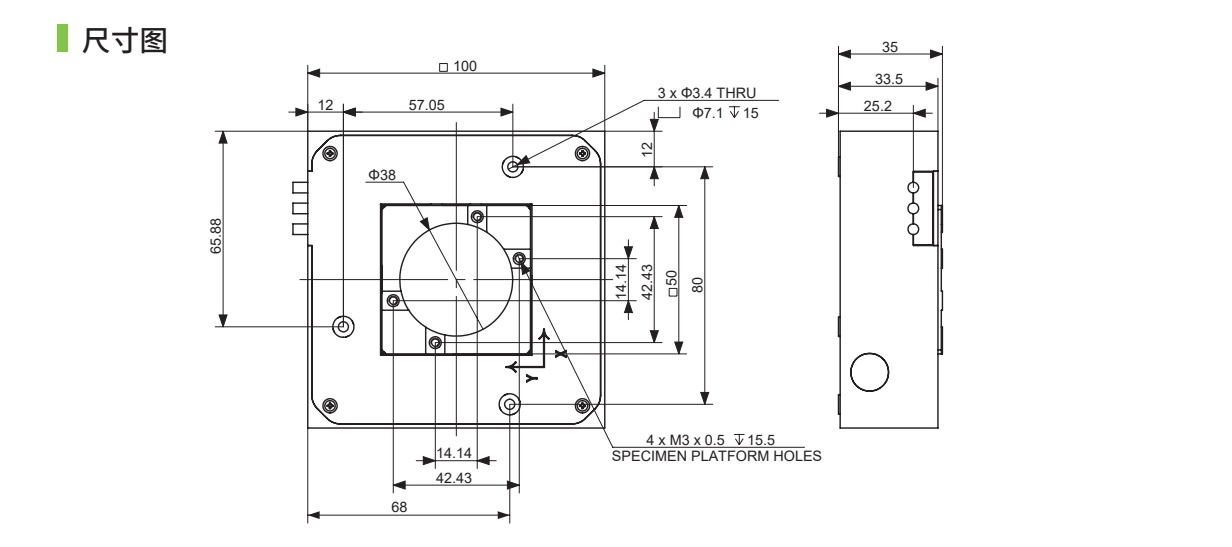

| Parameter | Value |
|---|---|
| Motion Axis | X/Y/Z |
| Sensor Type | Capacitive |
| Closed-loop Travel (μm) | 100/100/20 |
| Closed-loop Resolution (nm) | 0.5/0.5/0.1 |
| Linearity (%) | 0.02/0.02/0.08 |
| No-load Resonant Frequency (Hz) | 500/500/1400 |
| Port | D-sub15 |
| Material | Aluminum alloy |
| Maximum Load (kg) | 1 |
| Self Weight (kg) | 0.54 |
| Dimensions (mm) | 100×100×35 |
| Compatible Controller | SC100-A/SC300-3/SC400-3 |
