NS-XY100Z100-01
The NS-XY100Z100-01 is a precision motion control platform designed for high-accuracy applications. It features a compact design and advanced electrical sensors for precise movement along the X, Y, and Z axes.
Save to Favorites
Overview

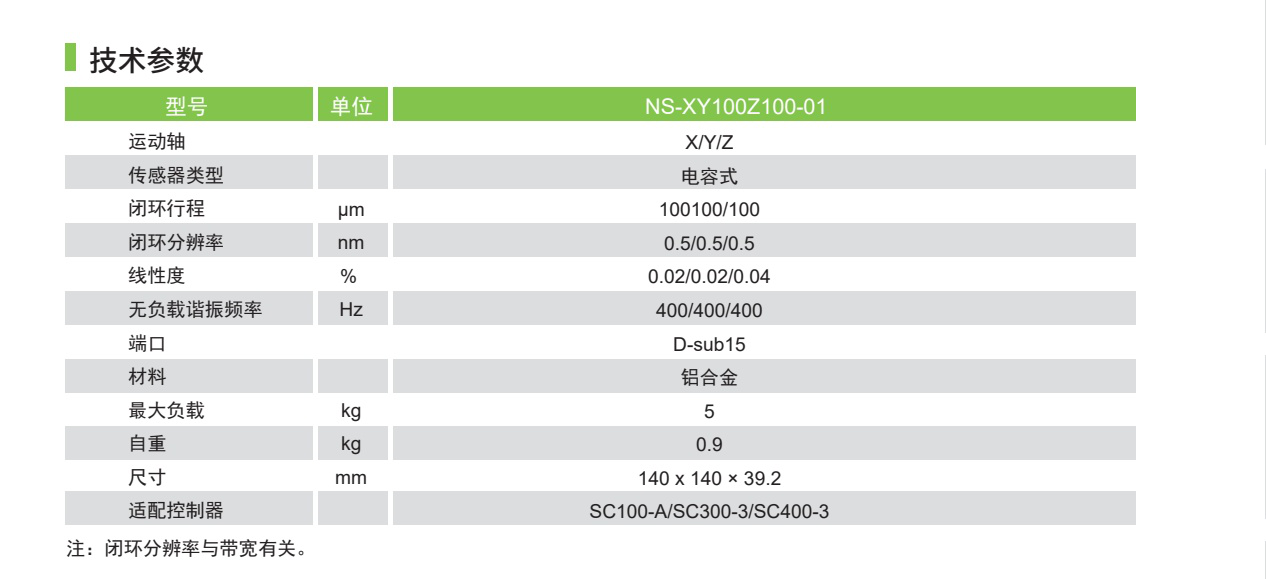

Specifications
| Parameter | Value |
|---|---|
| Motion Axes | X/Y/Z |
| Closed-loop Travel (μm) | 100100/100 |
| Closed-loop Resolution (nm) | 0.5/0.5/0.5 |
| Linearity (%) | 0.02/0.02/0.04 |
| No-load Resonant Frequency (Hz) | 400/400/400 |
| Port | D-sub15 |
| Maximum Load (kg) | 5kg |
| Self Weight (kg) | 0.9kg |

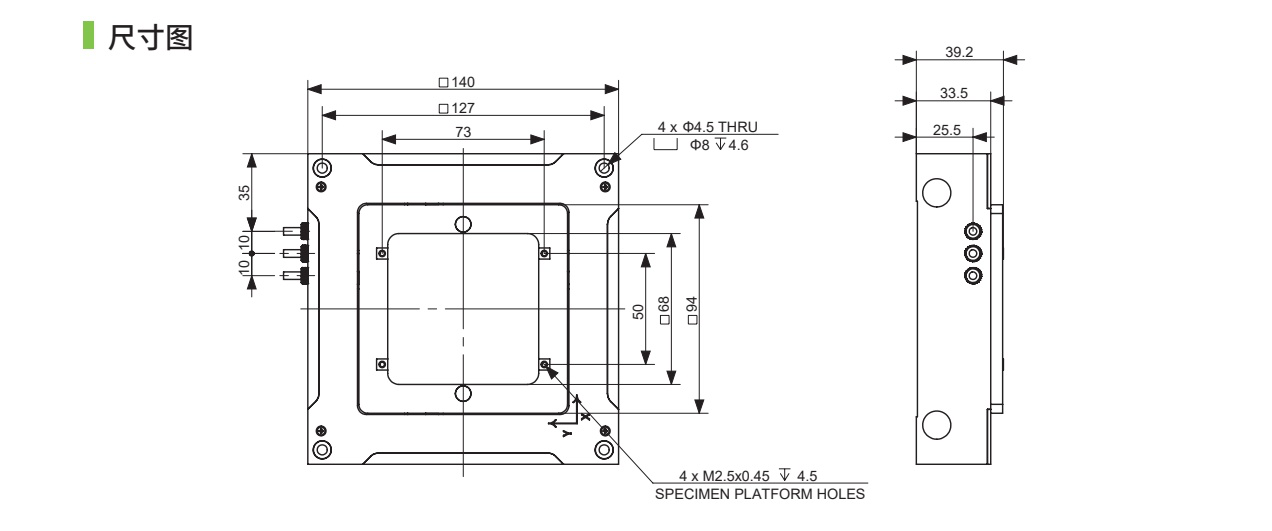

| Dimensions (mm) | 140×140×39.2 |
| Compatible Controller | SC100-A/SC300-3/SC400-3 |
