NS-XY100-02
The NS-XY100-02 is a high-precision XY motion stage designed for applications requiring accurate positioning and smooth operation. It features a compact design and advanced capacitive sensor technology.
Save to Favorites
Overview

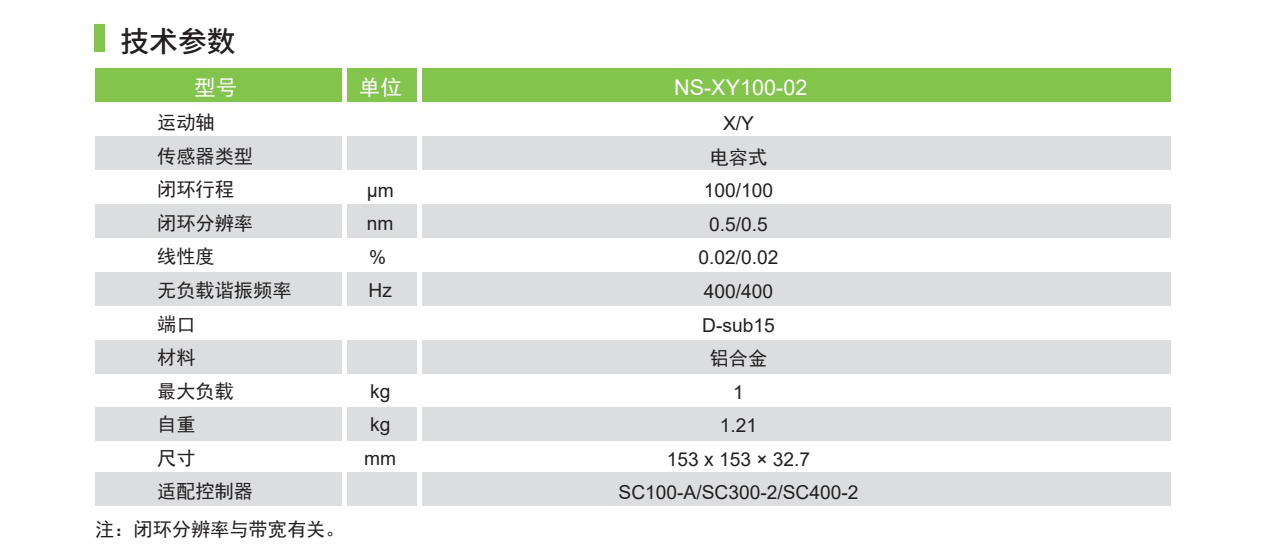

Specifications
| Parameter | Value |
|---|---|
| Motion Axis | X/Y |
| Sensor Type | Capacitive |
| Closed-loop Travel (μm) | 100/100 |
| Closed-loop Resolution (nm) | 0.5/0.5 |
| Linearity (%) | 0.02/0.02 |
| No-load Resonant Frequency (Hz) | 400/400 |
| Port | D-sub15 |
| Material | Aluminum alloy |
| Maximum Load (kg) | 1 |
| Self Weight (kg) | 1.21 |

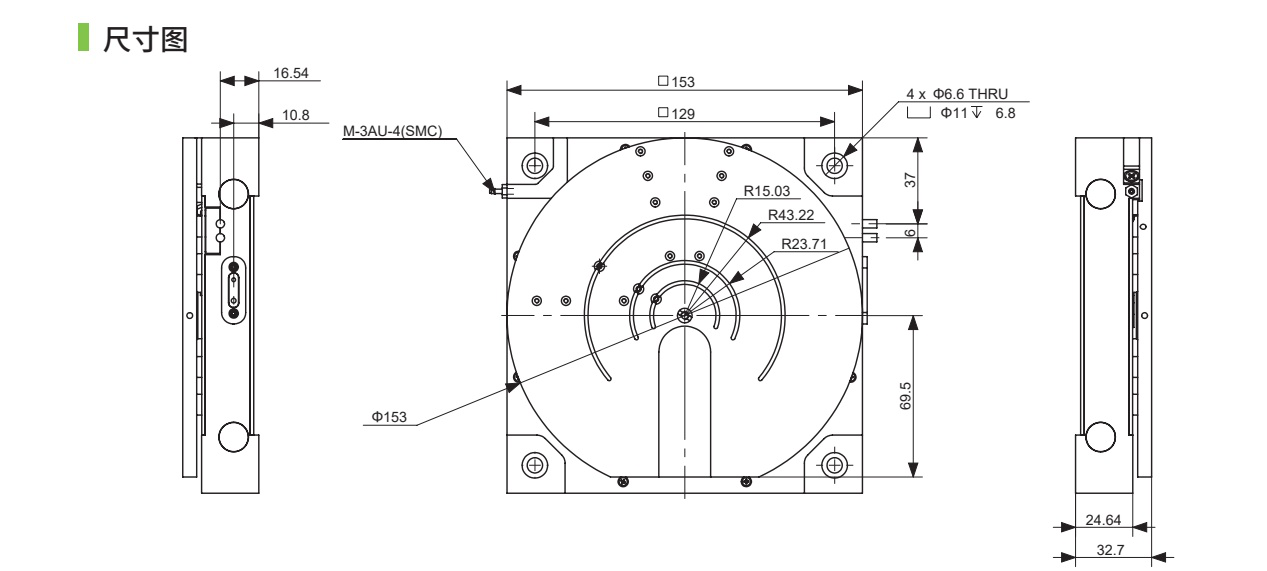

| Dimensions (mm) | 153×153×32.7 |
| Compatible Controller | SC100-A/SC300-2/SC400-2 |
