NS-RB4-03
The NS-RB4-03 is a precision rotary stage designed for high-accuracy applications, featuring advanced sensor technology and robust aluminum alloy construction.
Save to Favorites
Overview

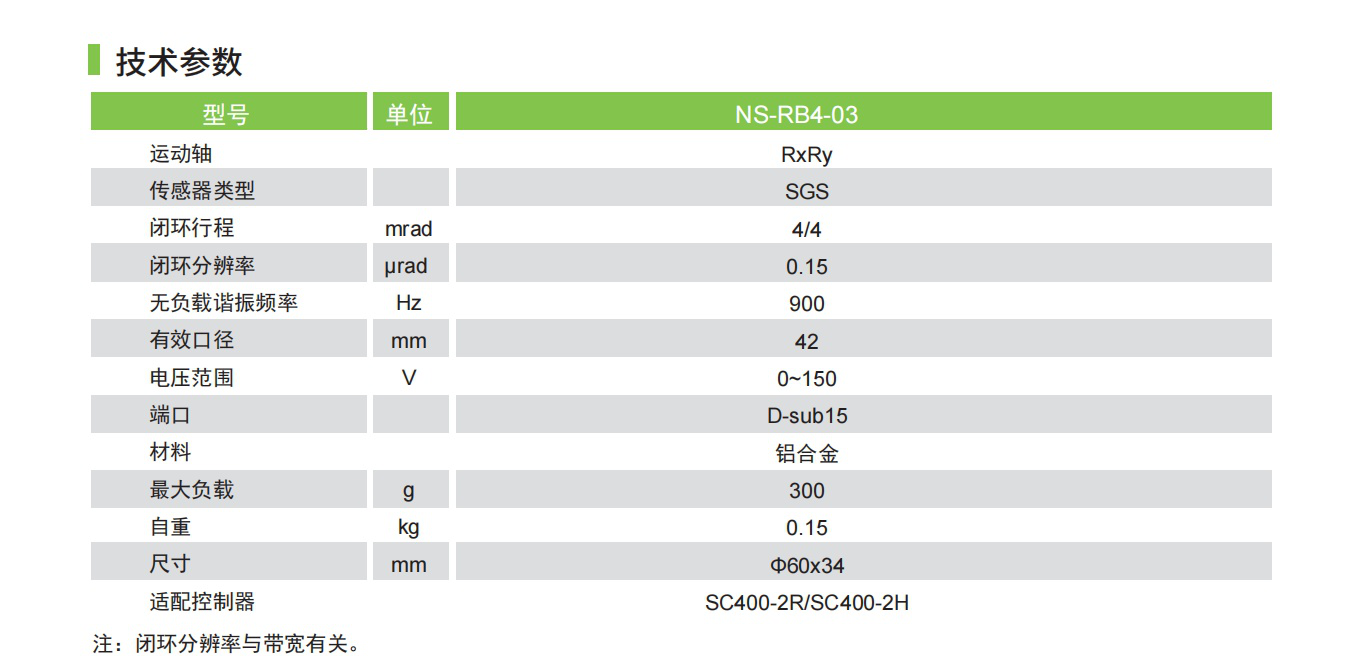

Specifications
| Parameter | Value |
|---|---|
| Motion Axis | RxRy |
| Sensor Type | SGS |
| Closed-loop Travel (mrad) | 4/4 |
| Closed-loop Resolution (μrad) | 0.15 |
| No-load Resonance Frequency (Hz) | 900 |
| Effective Aperture (mm) | 42 |
| Voltage Range (V) | 0~150 |
| Port | D-sub15 |
| Material | Aluminum Alloy |
| Maximum Load (g) | 300 |
| Weight (kg) | 0.15 |

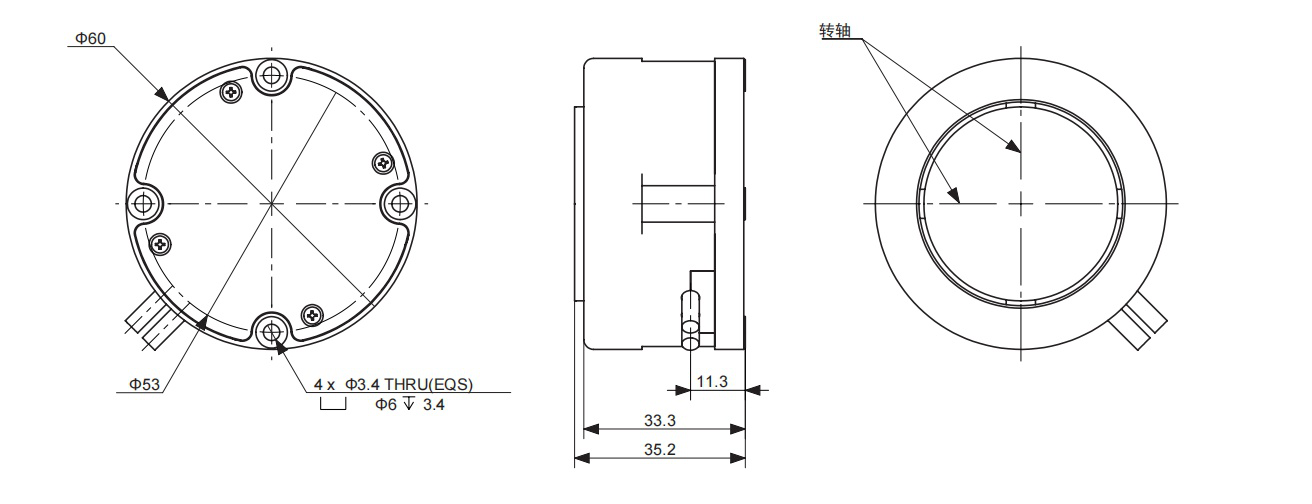

| Dimensions (mm) | Φ60x34 |
Applications
Key Features
Datasheet
