Scientific Grade Capacitive Displacement Sensor System
The scientific grade capacitive displacement sensor system is designed for high-precision displacement measurement, offering excellent resolution and linearity. It is suitable for various industrial and research applications.
Save to Favorites

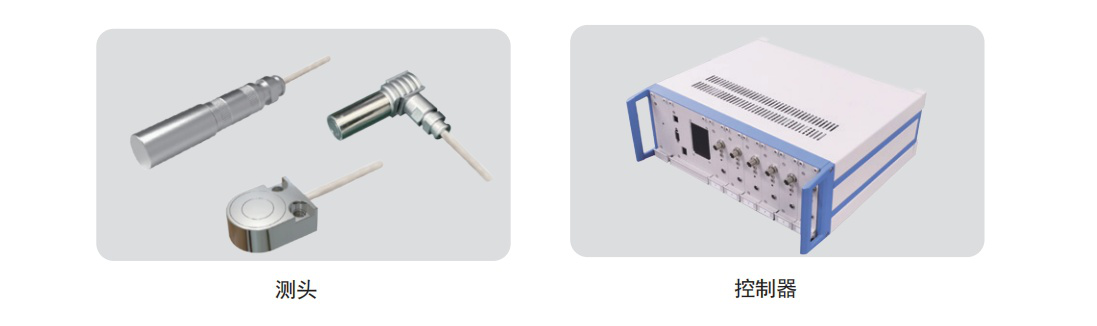

Overview

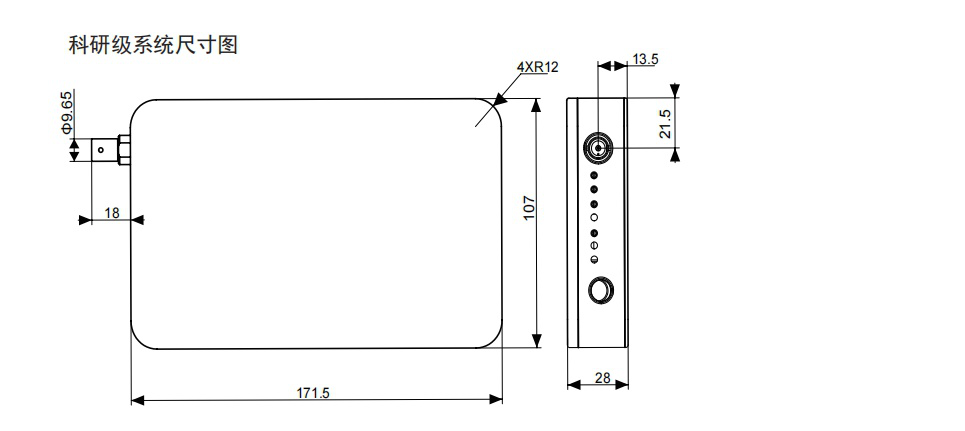

Specifications
| Parameter | Value |
|---|---|

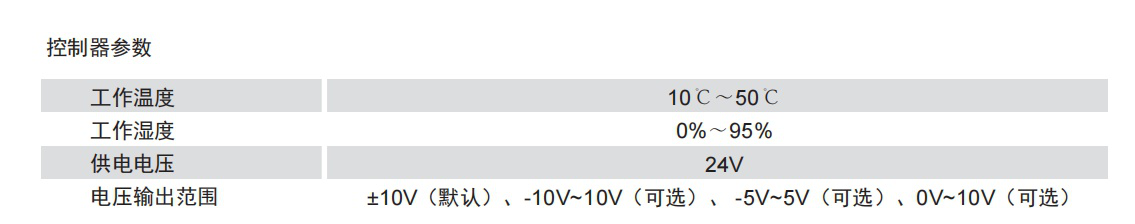

| Operating Temperature | 10°C~50°C |
| Supply Voltage | 24V |
| Voltage Output Range | ±10V (default), -10V~10V (optional), -5V~5V (optional), 0V~10V (optional) |

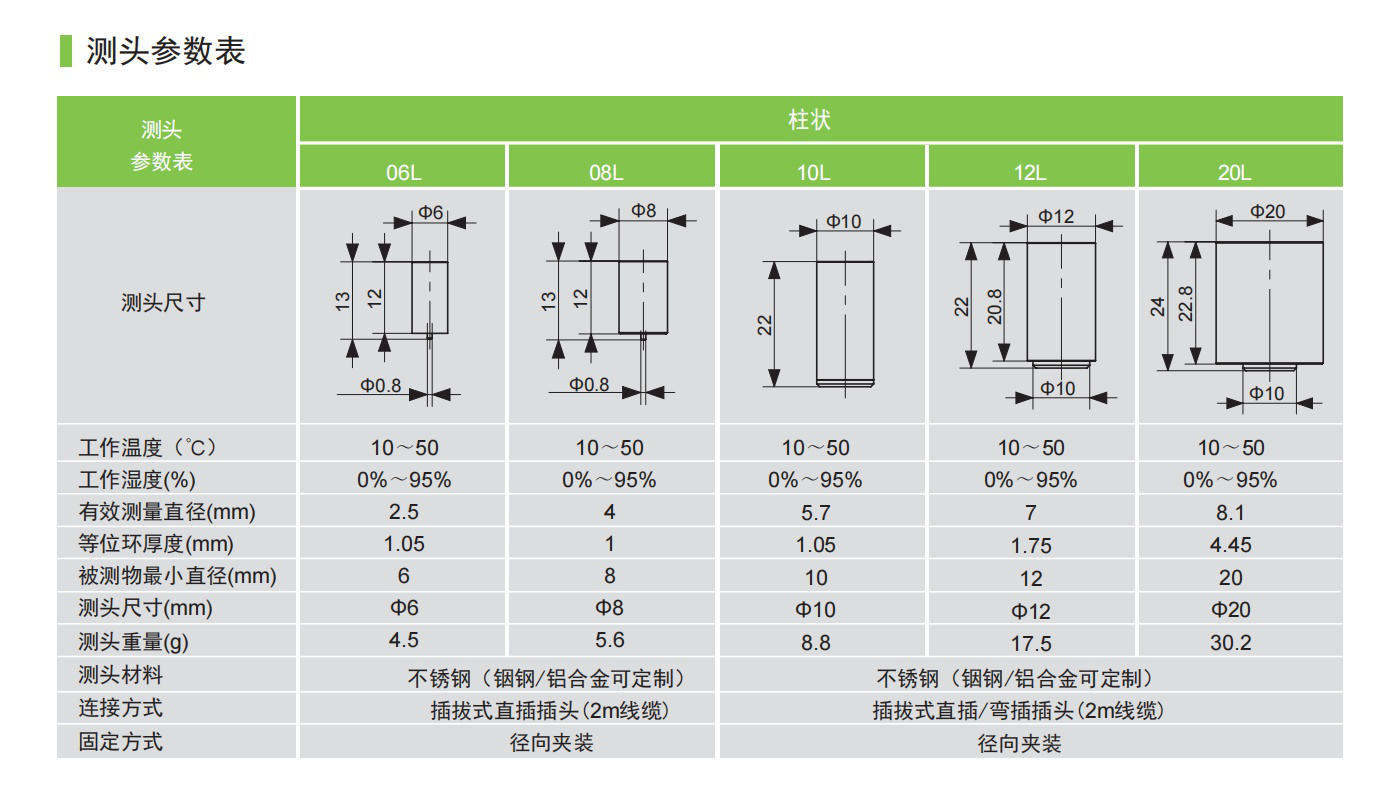

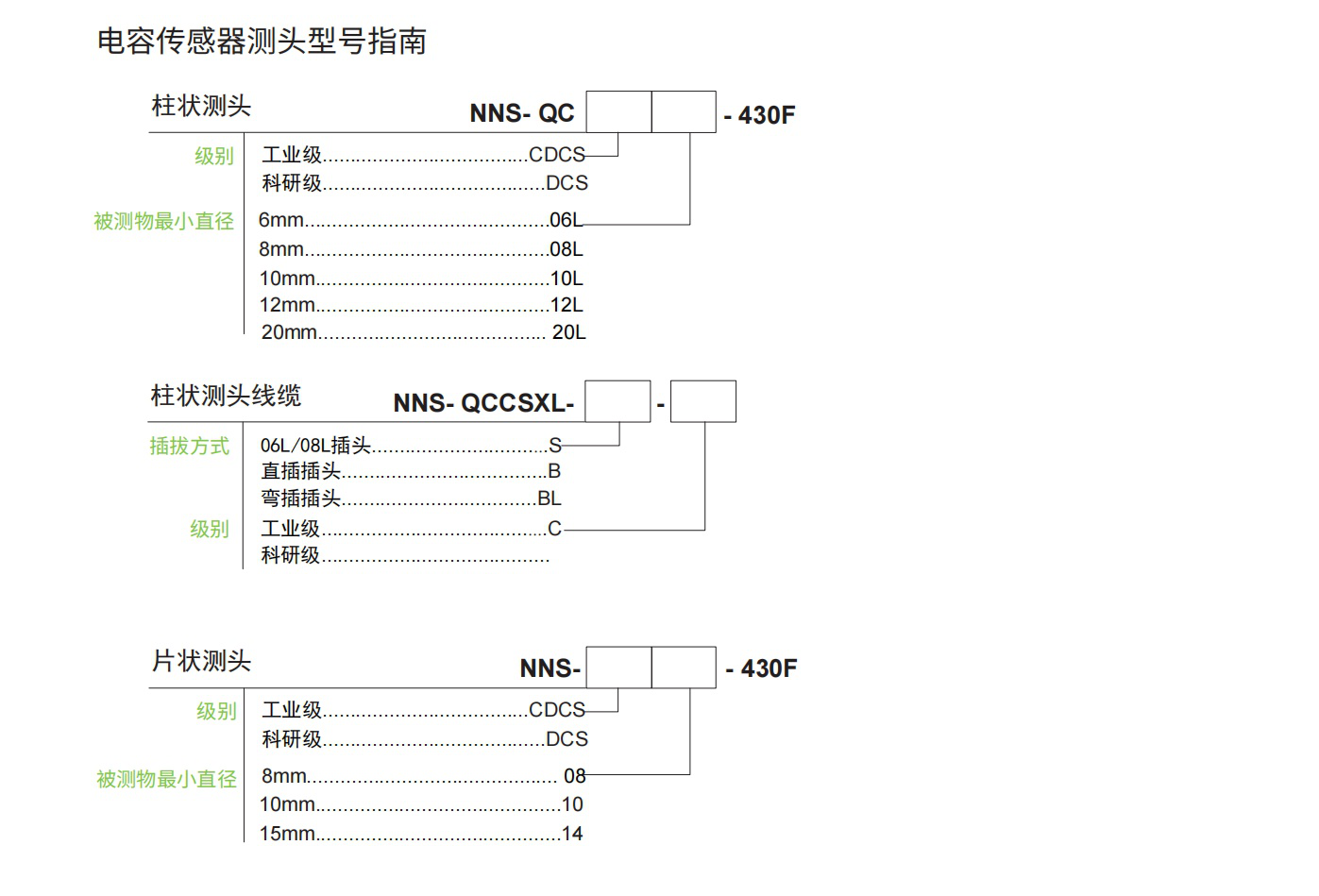

| Probe Dimensions 06L | Φ6×13 |
| Probe Dimensions 08L | Φ8×13 |
| Probe Dimensions 10L | Φ10×22 |
| Probe Dimensions 12L | Φ12×22.8 |
| Probe Dimensions 20L | Φ20×24 |

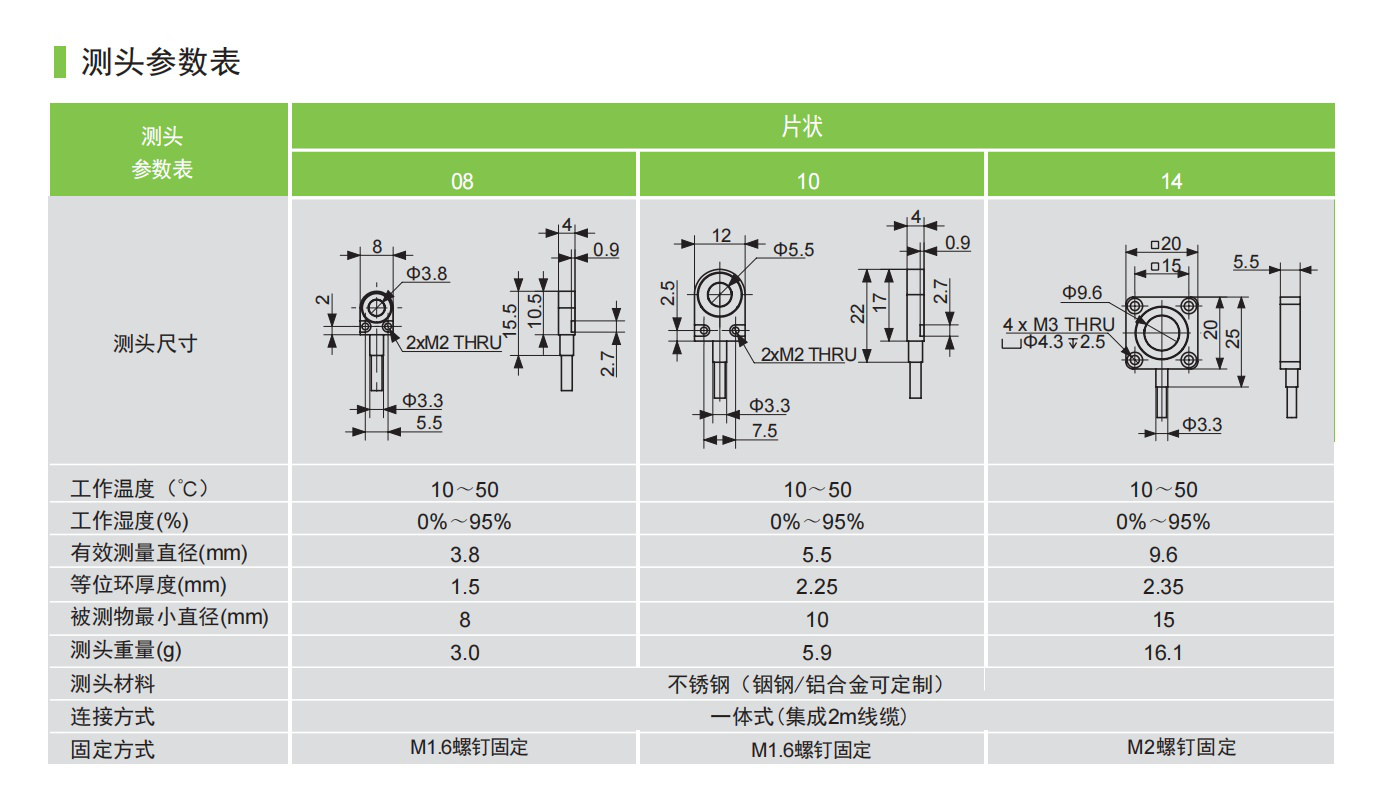

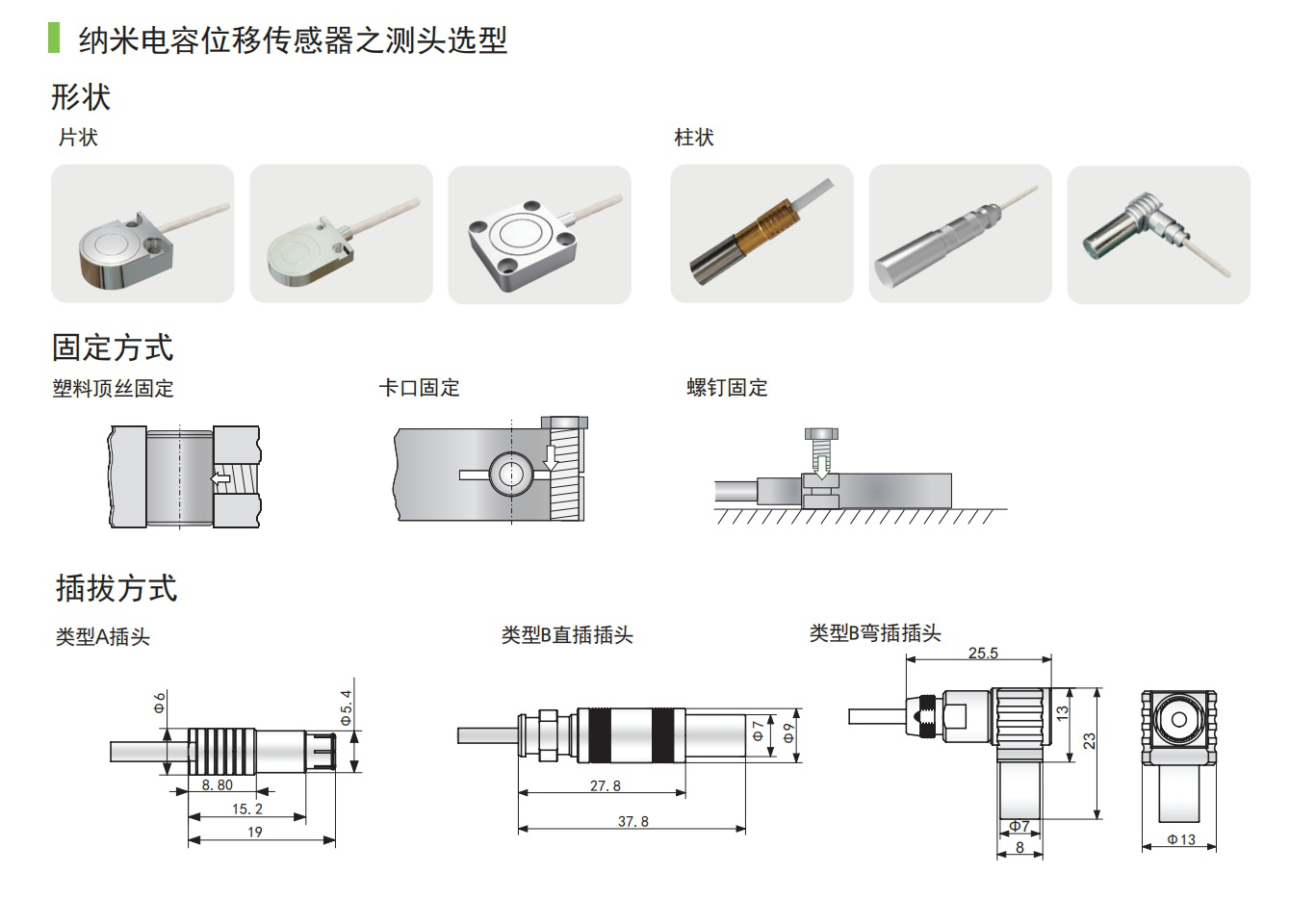

| Probe Dimensions 08 | Φ3.8×8 |
| Probe Dimensions 10 | Φ5.5×12 |
| Probe Dimensions 14 | Φ9.6×20 |
| Effective Measurement Diameter 06L | 2.5mm |
| Effective Measurement Diameter 08L | 4mm |
| Effective Measurement Diameter 10L | 5.7mm |
| Effective Measurement Diameter 12L | 7.5mm |
| Effective Measurement Diameter 20L | 17.5mm |
| Effective Measurement Diameter 08 | 3.8mm |
| Effective Measurement Diameter 10 | 5.5mm |
| Effective Measurement Diameter 14 | 9.6mm |
| Equipotential Ring Thickness 06L | 1.05mm |
| Equipotential Ring Thickness 08L | 1.05mm |
| Equipotential Ring Thickness 10L | 1.75mm |
| Equipotential Ring Thickness 12L | 4mm |
| Equipotential Ring Thickness 20L | 4mm |
| Equipotential Ring Thickness 08 | 1.5mm |
| Equipotential Ring Thickness 10 | 2.25mm |
| Equipotential Ring Thickness 14 | 2.25mm |
| Minimum Measured Object Diameter 06L | Φ6 |
| Minimum Measured Object Diameter 08L | Φ8 |
| Minimum Measured Object Diameter 10L | Φ10 |
| Minimum Measured Object Diameter 12L | Φ12 |
| Minimum Measured Object Diameter 20L | Φ20 |
| Minimum Measured Object Diameter 08 | Φ3.8 |
| Minimum Measured Object Diameter 10 | Φ5.5 |
| Minimum Measured Object Diameter 14 | Φ9.6 |
| Probe Weight 06L | 4.5g |
| Probe Weight 08L | 5.6g |
| Probe Weight 10L | 15.2g |
| Probe Weight 12L | 17.5g |
| Probe Weight 20L | 30.2g |
| Probe Weight 08 | 3g |
| Probe Weight 10 | 5.9g |
| Probe Weight 14 | 16.1g |
| Probe Material | Stainless steel (customizable with copper/aluminum alloy) |
| Connection Method 06L, 08L | Plug-in type straight plug (2m cable) |
| Connection Method 10L, 12L, 20L | Plug-in type straight plug/bent plug (2m cable) |
| Connection Method 08, 10 | Integrated (built-in 2m cable) |
| Connection Method 14 | Integrated (built-in 2m cable) |
| Fixing Method 06L, 08L, 10L, 12L, 20L | Axial installation |
| Fixing Method 08 | M1.6 screw fixing |
| Fixing Method 10 | M1.6 screw fixing |
| Fixing Method 14 | M2 screw fixing |

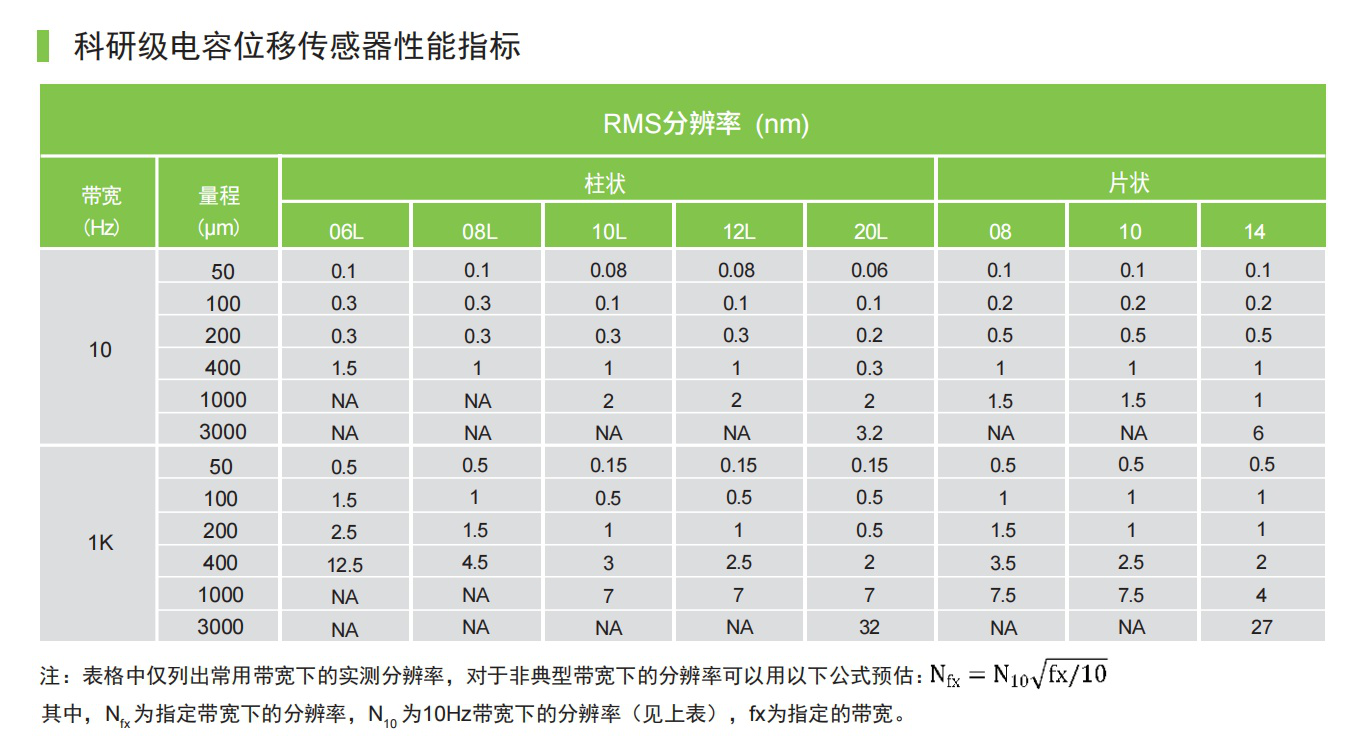

| RMS Resolution 06L 50Hz | 0.1nm |
| RMS Resolution 08L 50Hz | 0.1nm |
| RMS Resolution 10L 50Hz | 0.08nm |
| RMS Resolution 12L 50Hz | 0.06nm |
| RMS Resolution 20L 50Hz | 0.1nm |
| RMS Resolution 08 50Hz | 1nm |
| RMS Resolution 10 50Hz | 0.1nm |
| RMS Resolution 14 50Hz | 0.1nm |

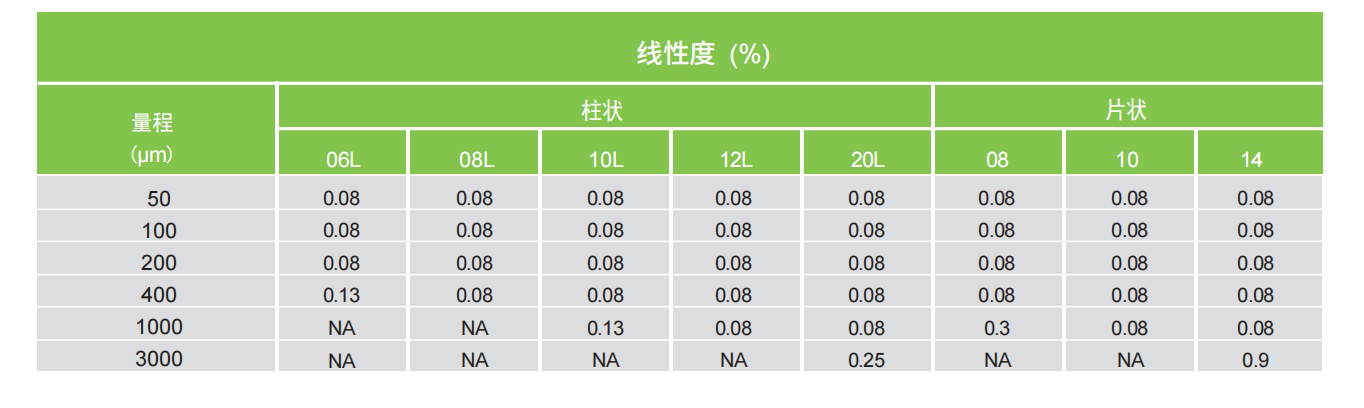

| Linearity 06L 50μm | 0.08% |
| Linearity 08L 50μm | 0.08% |
| Linearity 10L 50μm | 0.08% |
| Linearity 12L 50μm | 0.08% |
| Linearity 20L 50μm | 0.08% |
| Linearity 08 50μm | 0.08% |
| Linearity 10 50μm | 0.08% |
| Linearity 14 50μm | 0.08% |
