PSS OPS1X121光纤开关
PSS OPS1X121 is a high-performance optical switch designed for precise fiber optic signal routing and management.
Save to Favorites
Overview

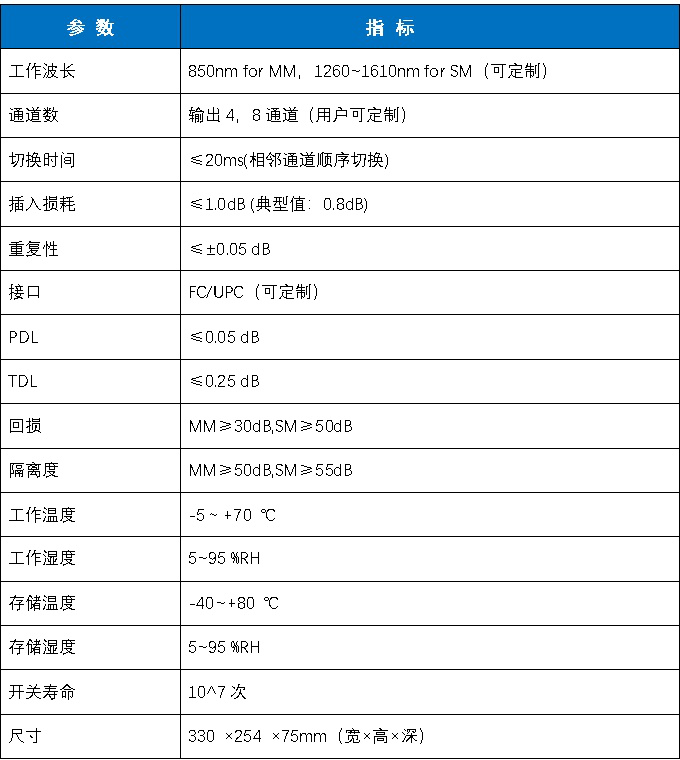

Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength | 850nm for MM, 1260~1610nm for SM (customizable) |
| Number of Channels | Output 4, 8 channels (user customizable) |
| Switching Time | ≤20ms (sequential channel switching) |
| Insertion Loss | ≤1.0dB (typical value: 0.8dB) |

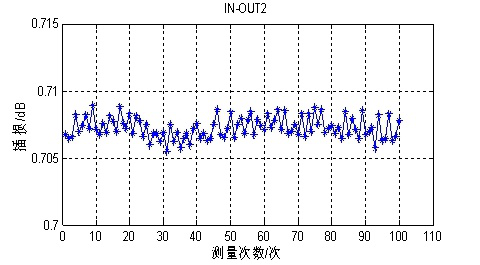

| Repeatability | ±0.05dB |
| Interface | FC/UPC (customizable) |
| Polarization Dependent Loss | ≤0.05dB |
| Temperature Dependent Loss | ≤0.25dB |
| Return Loss | MM≥30dB, SM≥50dB |
| Isolation | MM≥50dB, SM≥55dB |
| Operating Temperature | -5~+70°C |
| Operating Humidity | 5~95%RH |
| Storage Temperature | -40~+80°C |
| Storage Humidity | 5~95%RH |
| Switch Lifetime | 10^7 cycles |
| Dimensions | 330×254×75mm (W×H×D) |
