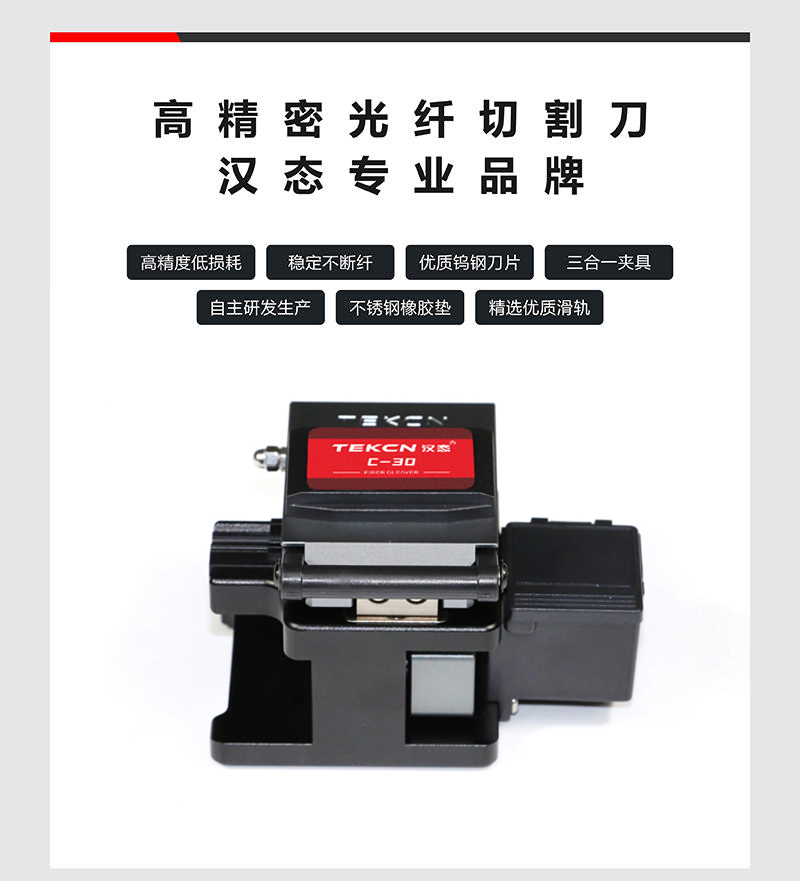

C-30 Fiber Cleaver
The TEKCN C-30 Fiber Cleaver is a high-precision tool designed for cutting optical fibers with exceptional accuracy and stability. It features advanced materials and cutting-edge technology to ensure smooth and precise fiber cleaving.
Save to Favorites
Overview

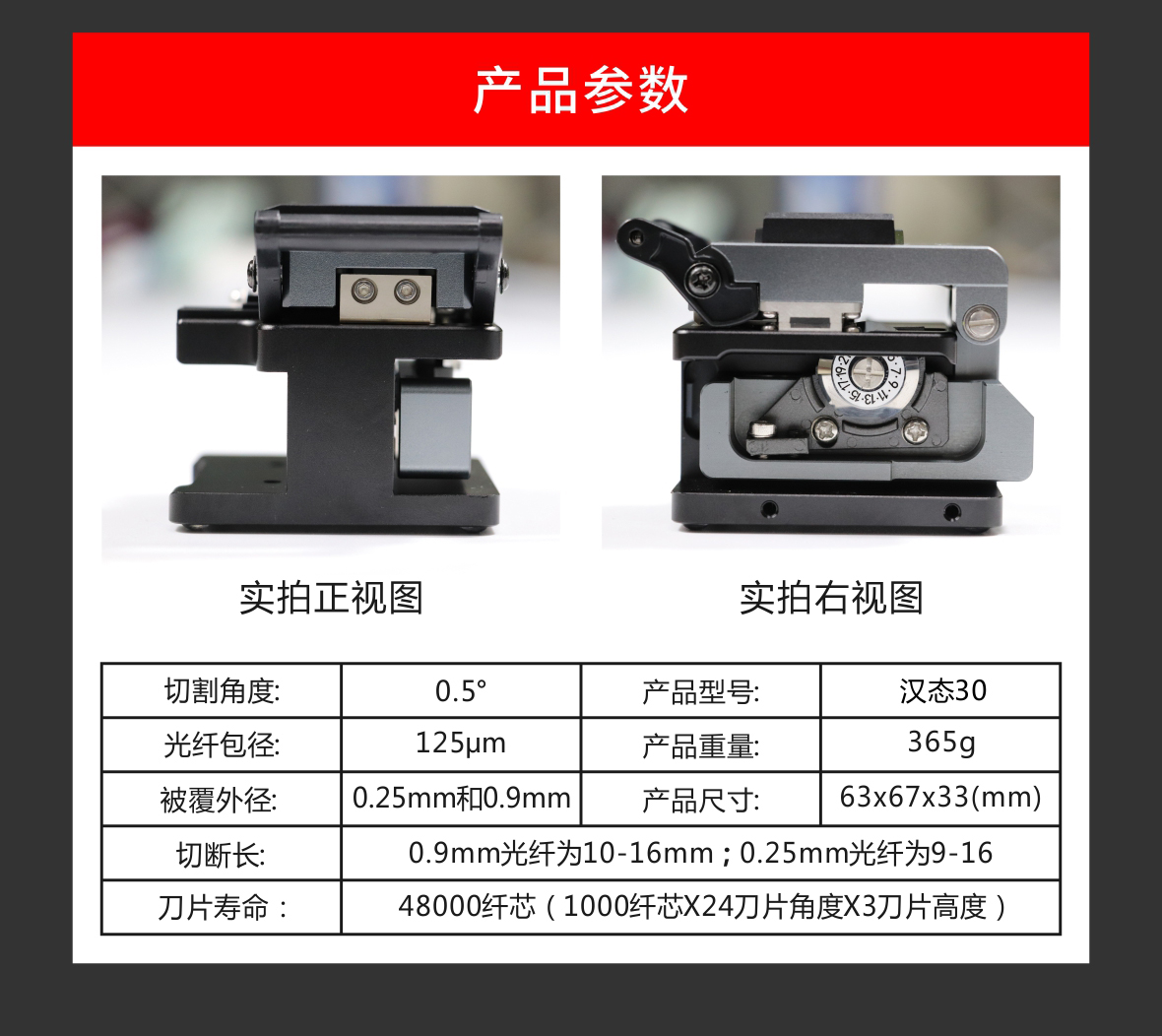

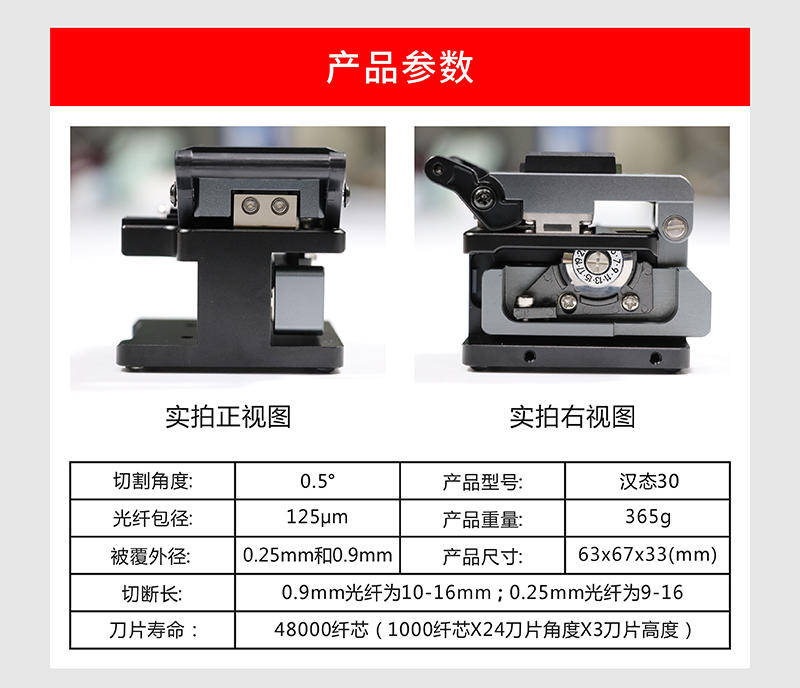

Specifications
| Parameter | Value |
|---|---|
| Cutting Angle | 0.5° |
| Fiber Cladding Diameter | 125μm |
| Product Weight | 365g |
| Coating Diameter | 0.25mm and 0.9mm |
| Product Dimensions | 63x67x33mm |
| Cutting Length | 0.9mm fiber: 10-16mm; 0.25mm fiber: 9-16mm |

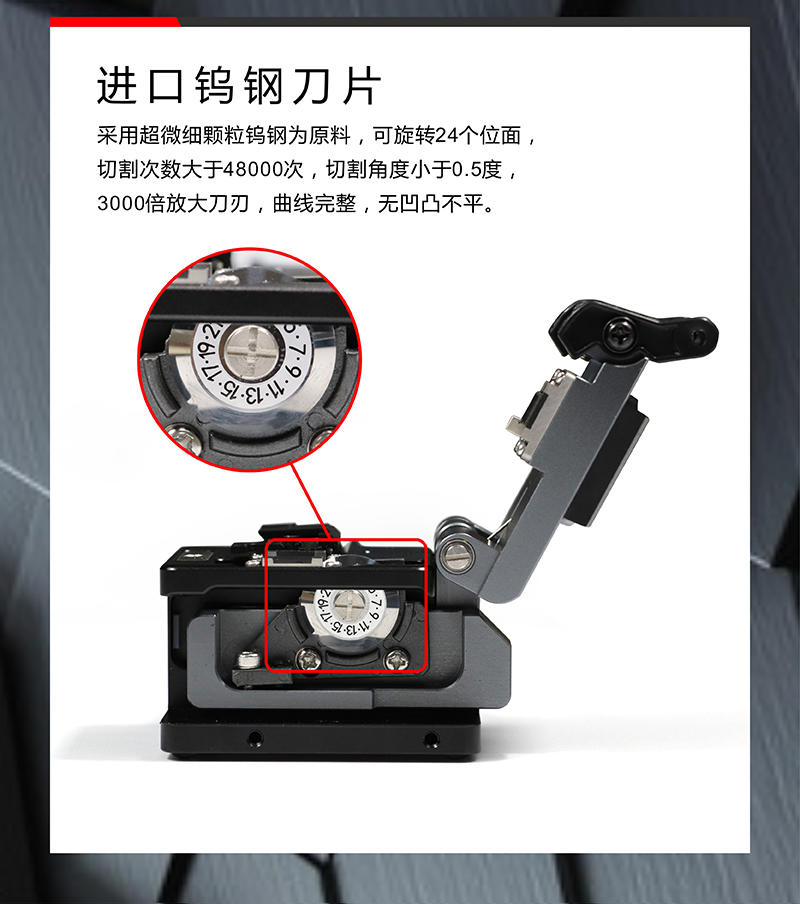

| Blade Lifetime | 48000 fibers (1000 fibers x 24 blade positions x 3 blade heights) |
