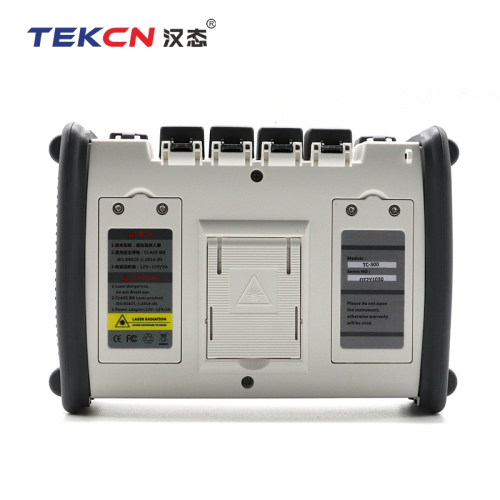

TC-300 OTDR光纤测试仪_page4_001.png)
TC-300 OTDR光纤测试仪_page5_001.png)
TC-300 OTDR光纤测试仪_page6_001.png)
TC-300 OTDR光纤测试仪_page7_001.png)
TC-300 OTDR光纤测试仪_page8_001.png)
TC-300 OTDR光纤测试仪_page9_001.png)
TC-300 OTDR光纤测试仪_page10_001.png)
TC-300 OTDR光纤测试仪_page11_001.png)

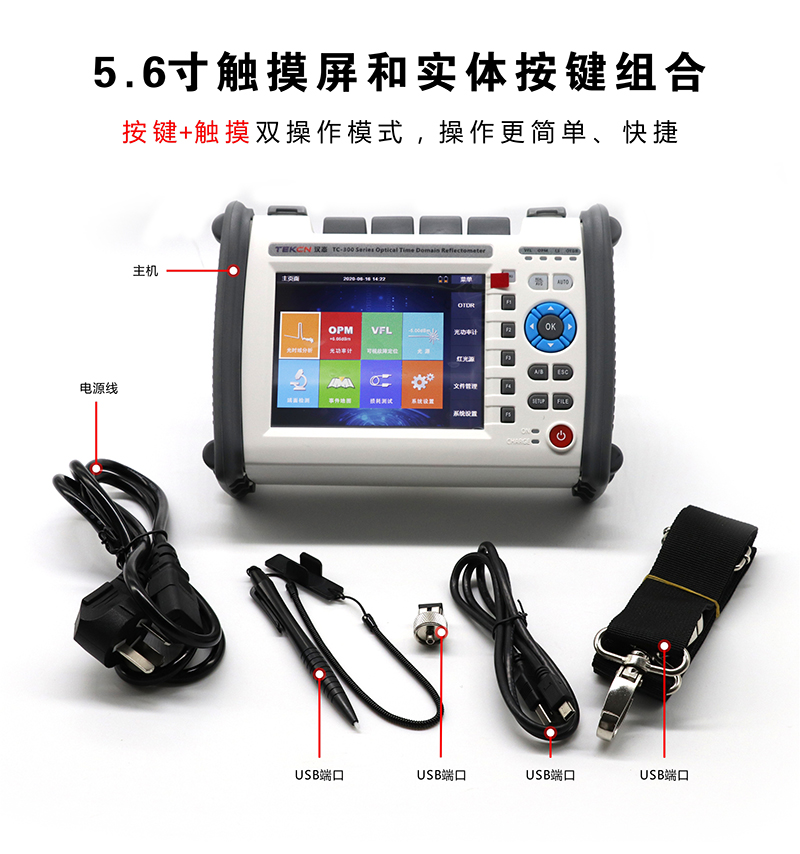

TC-300 OTDR光纤测试仪_page12_001.png)

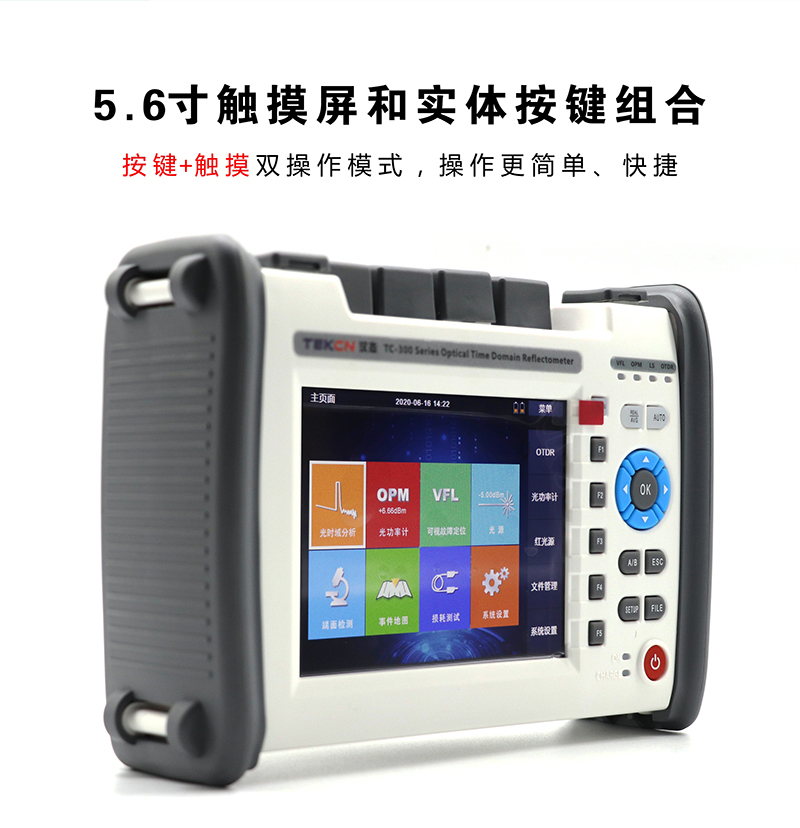

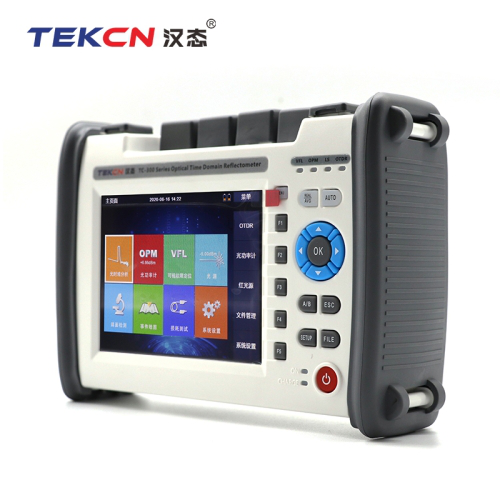

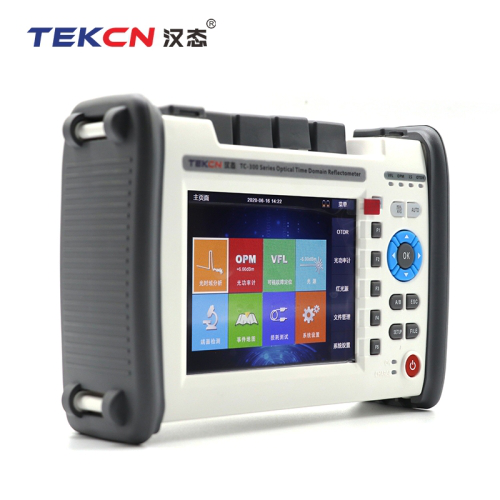

TC-300 Series Optical Time Domain Reflectometer

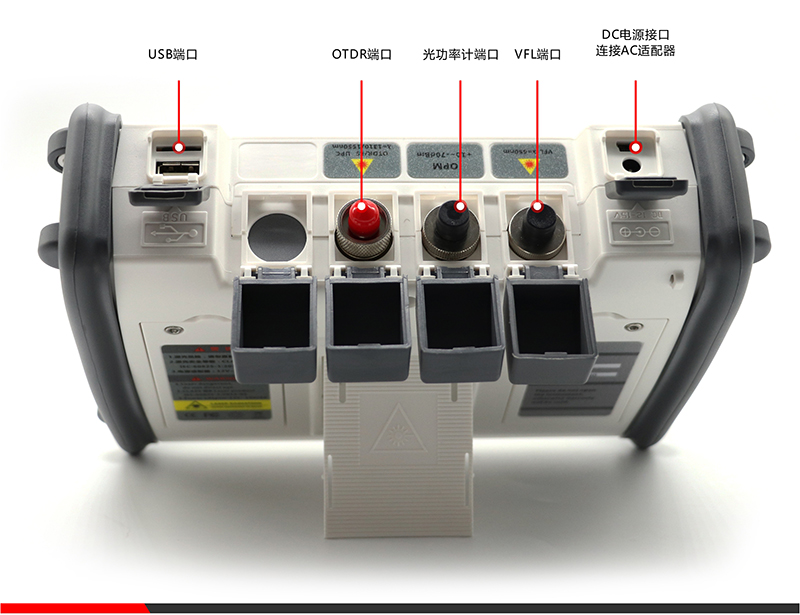

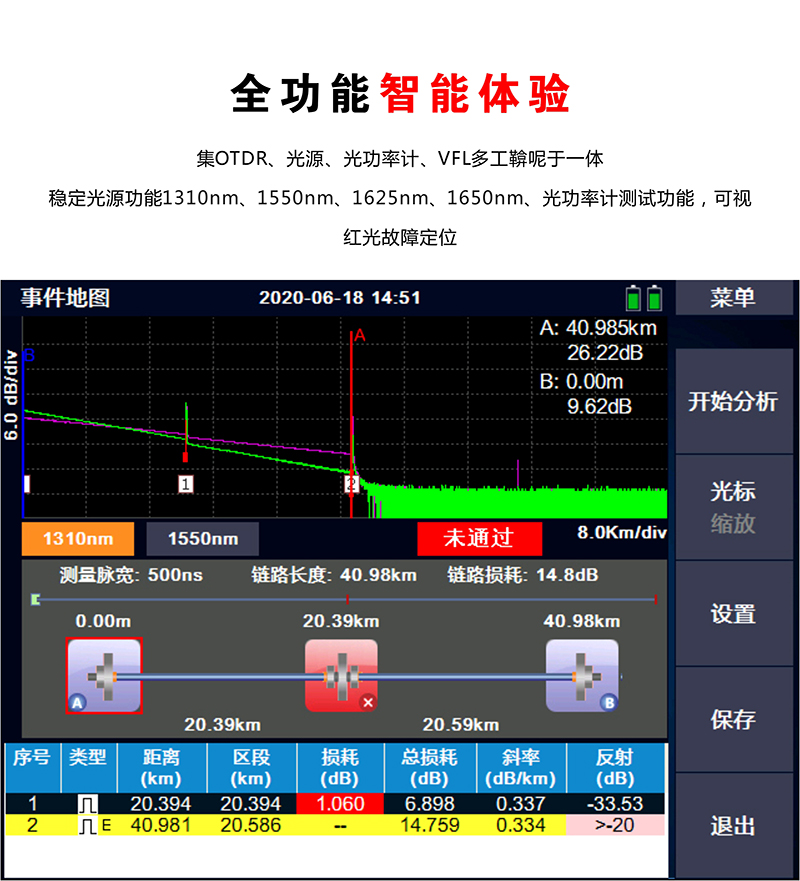

The TC-300 Series Optical Time Domain Reflectometer (OTDR) is a comprehensive fiber optic testing device developed by TEKCN. It integrates multiple functions such as OTDR, optical power meter, light source, and VFL into one device, providing efficient and accurate fiber measurement solutions.
Save to Favorites
Overview

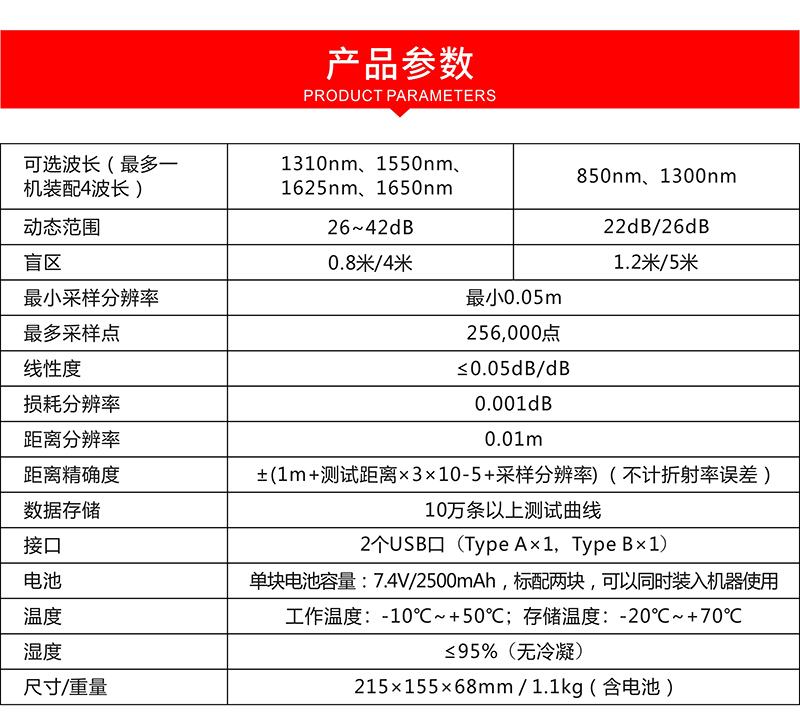

Specifications
| Parameter | Value |
|---|---|
| Selectable Wavelengths | 1310nm, 1550nm, 1625nm, 1650nm; 850nm, 1300nm |
| Dead Zone | 0.8m/4m; 1.2m/5m |
| Minimum Sampling Resolution | 0.05m |
| Maximum Sampling Points | 256,000 points |
| Linearity | ≤0.05dB/dB |
| Distance Accuracy | ±(1m+test distance×3×10-5+sampling resolution) |
| Dimensions/Weight | 215×155×68mm/1.1kg (including battery) |
