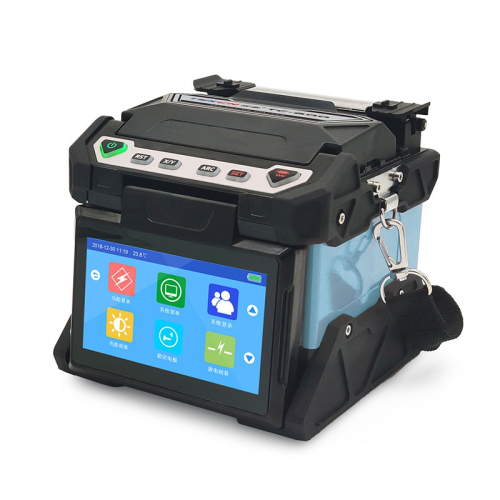

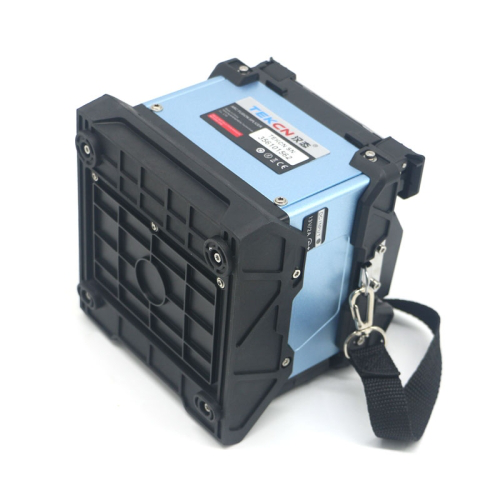

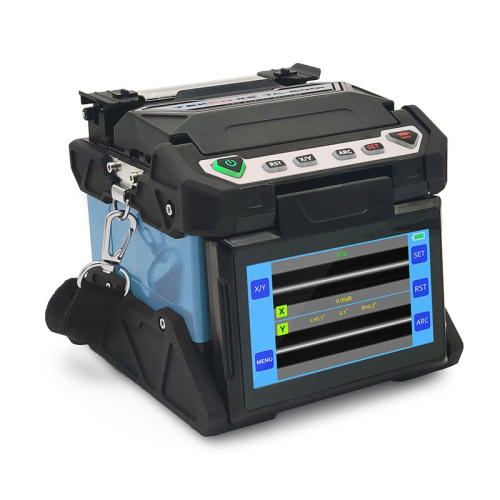

TC-400 Fiber Fusion Splicer
The TC-400 Fiber Fusion Splicer is a compact and lightweight device designed for efficient fiber optic splicing. It features advanced AI technology, quick splicing and heating capabilities, and robust protection against environmental factors.
Save to Favorites
Overview

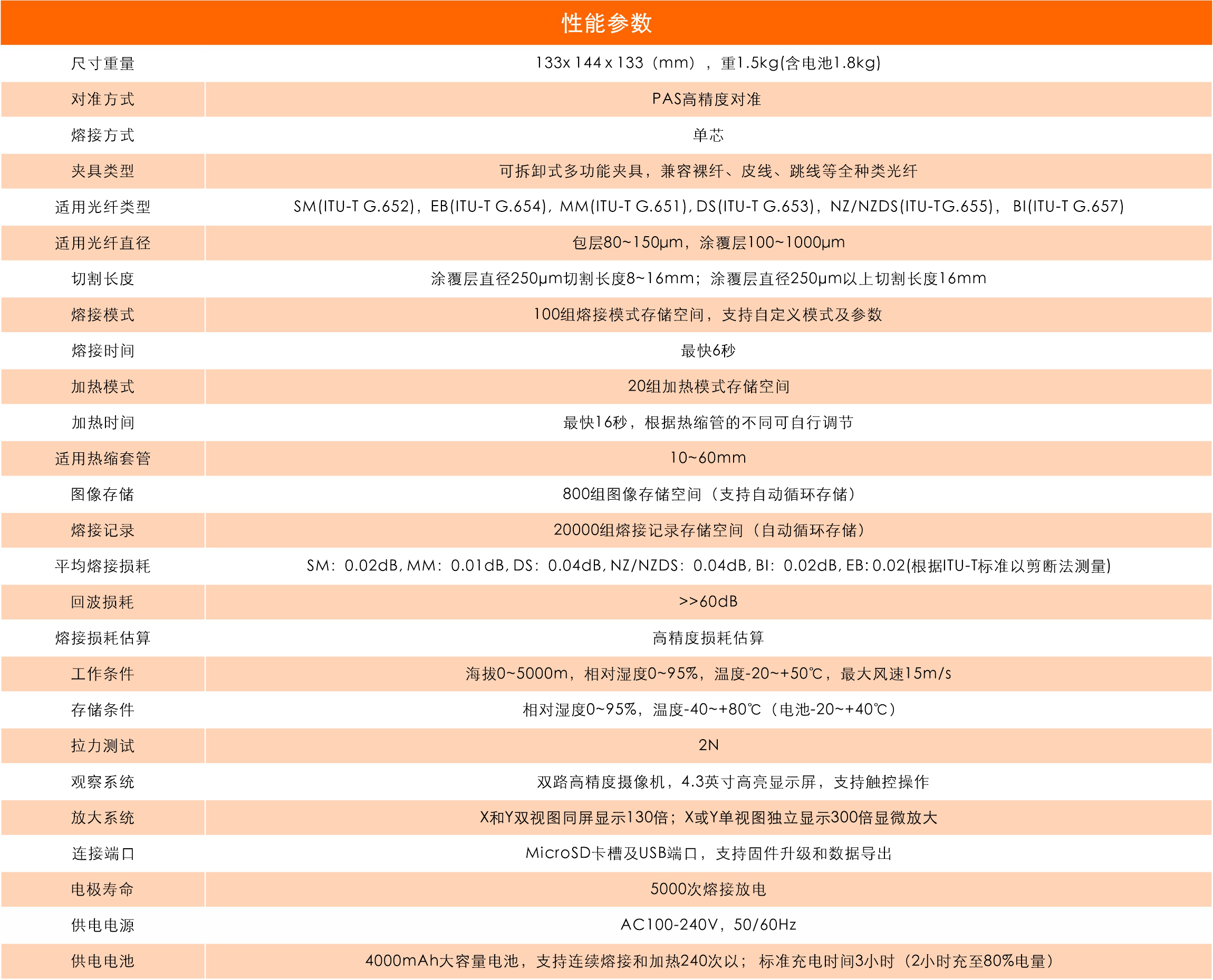

Specifications
| Parameter | Value |
|---|---|
| Dimensions and Weight | 133x144x133mm, 1.5kg (with battery 1.8kg) |
| Alignment Method | PAS precision alignment |
| Clamping Method | Clamp |
| Fixture Type | Adaptable to various types of fiber optic cables |
| Fixture Type | including bare fiber |
| Fixture Type | pigtail |
| Fixture Type | leather cable |
| Fixture Type | and jumpers |
| Splicing Mode | 100 preset modes and customizable modes |
| Splicing Time | 6s |
| Heating Mode | 20 preset heating modes and customizable modes |
| Applicable Heat Shrink Tubes | 10-60mm |
| Image Storage | 800 images (internal storage) |
| Splicing Records | 20000 records (internal storage, automatic saving) |
| Average Splicing Loss | SM: ≤0.02dB, MM: ≤0.01dB, DS: ≤0.04dB, NZ/NZDS: ≤0.04dB, EB: 0.02dB |
| Return Loss | ≥60dB |
| Splicing Result Calculation | High precision calculation |
| Working Conditions | Altitude: 0-5000m, temperature: -10°C to +50°C, max wind speed: 15m/s |
| Storage Conditions | Relative humidity ≤95%, temperature: -40°C to +80°C (-20°C to +40°C) |
| Tensile Test | 2N |
| Magnification System | X/Y dual-axis magnification: 4.3x high resolution, supports image storage |
| Connection Port | MicroSD card slot, USB interface, supports 300x image storage expansion |
| Battery Parameters | 5000mAh rechargeable battery |
| Power Supply | AC100-240V, 50/60Hz |
| Battery Power Supply | 4000mAh lithium battery, supports external power supply, continuous splicing and heating for 200 cycles |
