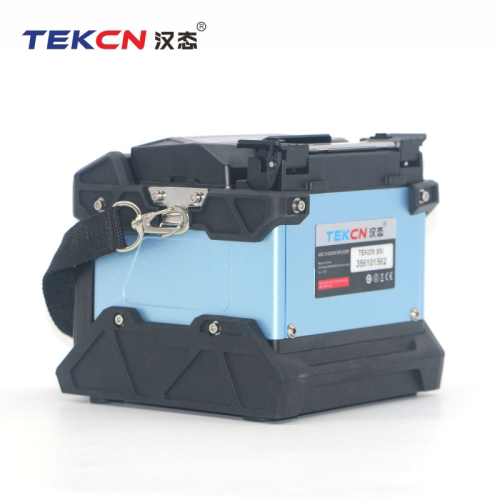

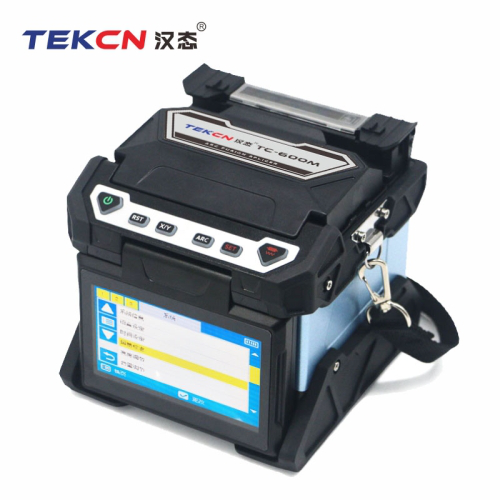

TC-600M
The TC-600M is a high-precision PAS alignment single fiber arc fusion splicer designed for efficient and reliable fiber optic splicing. It features advanced AI technology, a user-friendly touch screen, and a compact design for portability.
Save to Favorites
Overview

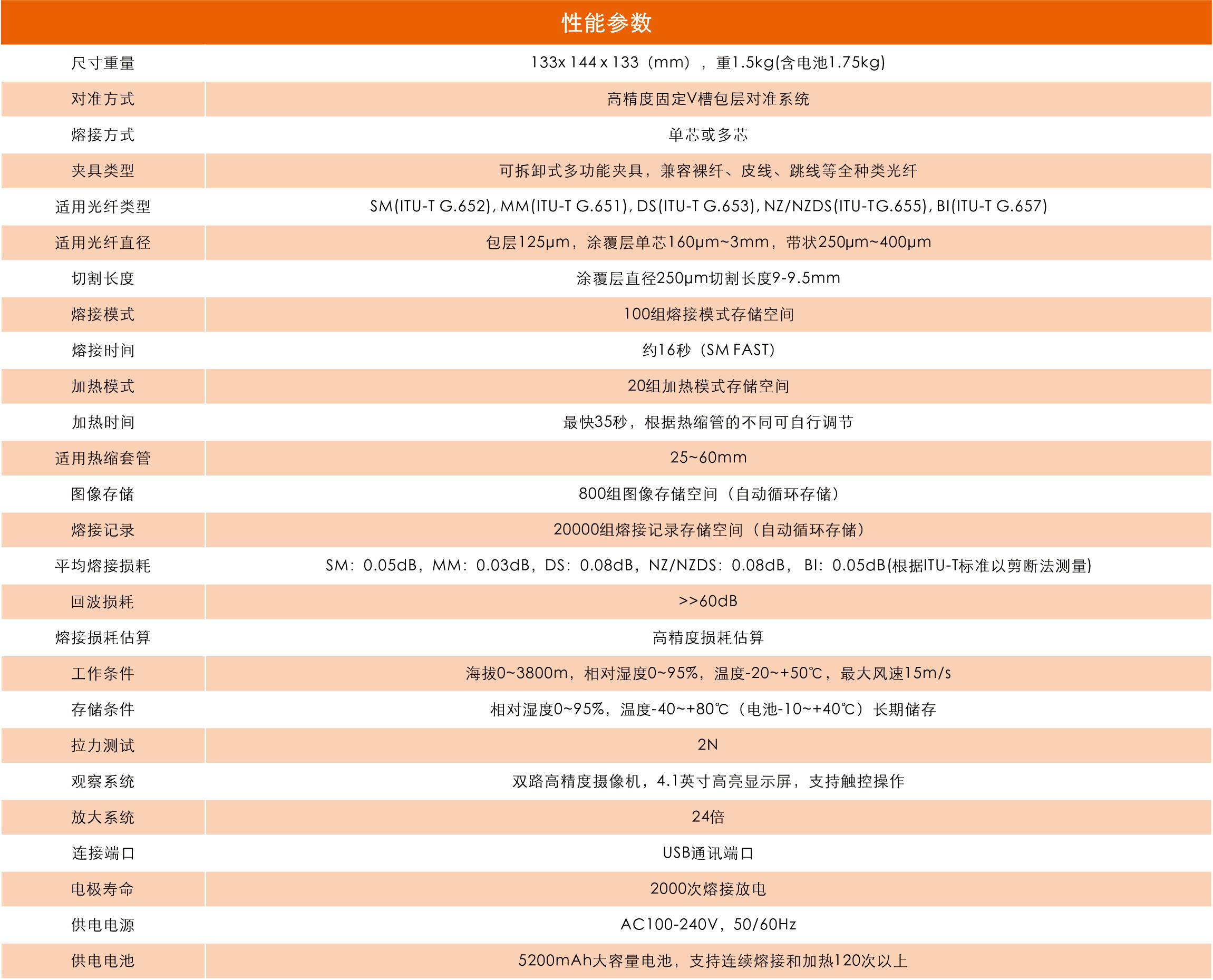

Specifications
| Parameter | Value |
|---|---|
| Dimensions and Weight | 133x144x133mm, 1.5kg (including battery 1.75kg) |
| Alignment Method | High-precision PAS alignment system |
| Splicing Method | Single fiber splicing |
| Fixture Type | Compatible with movable clamps for bare fiber |
| Fixture Type | leather cable |
| Fixture Type | and other types of optical fibers |
| Splicing Modes | 100 groups of splicing modes storage space |
| Heating Modes | 20 groups of heating modes storage space |
| Applicable Heat Shrink Tubes | 25-60mm |
| Image Storage | 800 images storage space (automatic cycle storage) |
| Splicing Records | 20000 splicing records storage space (automatic cycle storage) |
| Average Splicing Loss | SM: ≤0.05dB, MM: ≤0.03dB, DS: ≤0.08dB, NZ/NZDS: ≤0.08dB, BI: ≤0.05dB |
| Return Loss | ≥60dB |
| Working Conditions | Altitude 0-3800m, relative humidity 0-95%, temperature -20°C to +50°C, maximum wind speed 15m/s |
| Storage Conditions | Relative humidity 0-95%, temperature -40°C to +80°C (battery -10°C to +40°C) |
| Tensile Test | 2N |
| Observation Method | Double-sided fiber image display, continuous magnification |
| Magnification | 24x |
| Battery Capacity | 5200mAh |
| Battery Life | 2000 cycles |
| Power Supply | AC100-240V, 50/60Hz |
| Power Supply Current | 5200mAh battery capacity, continuous power supply for more than 120 cycles |
