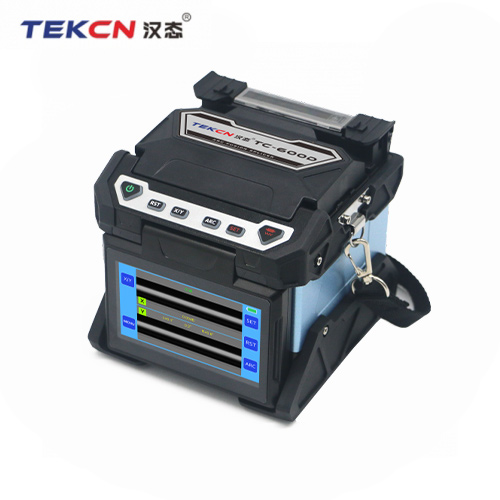

TC-600D

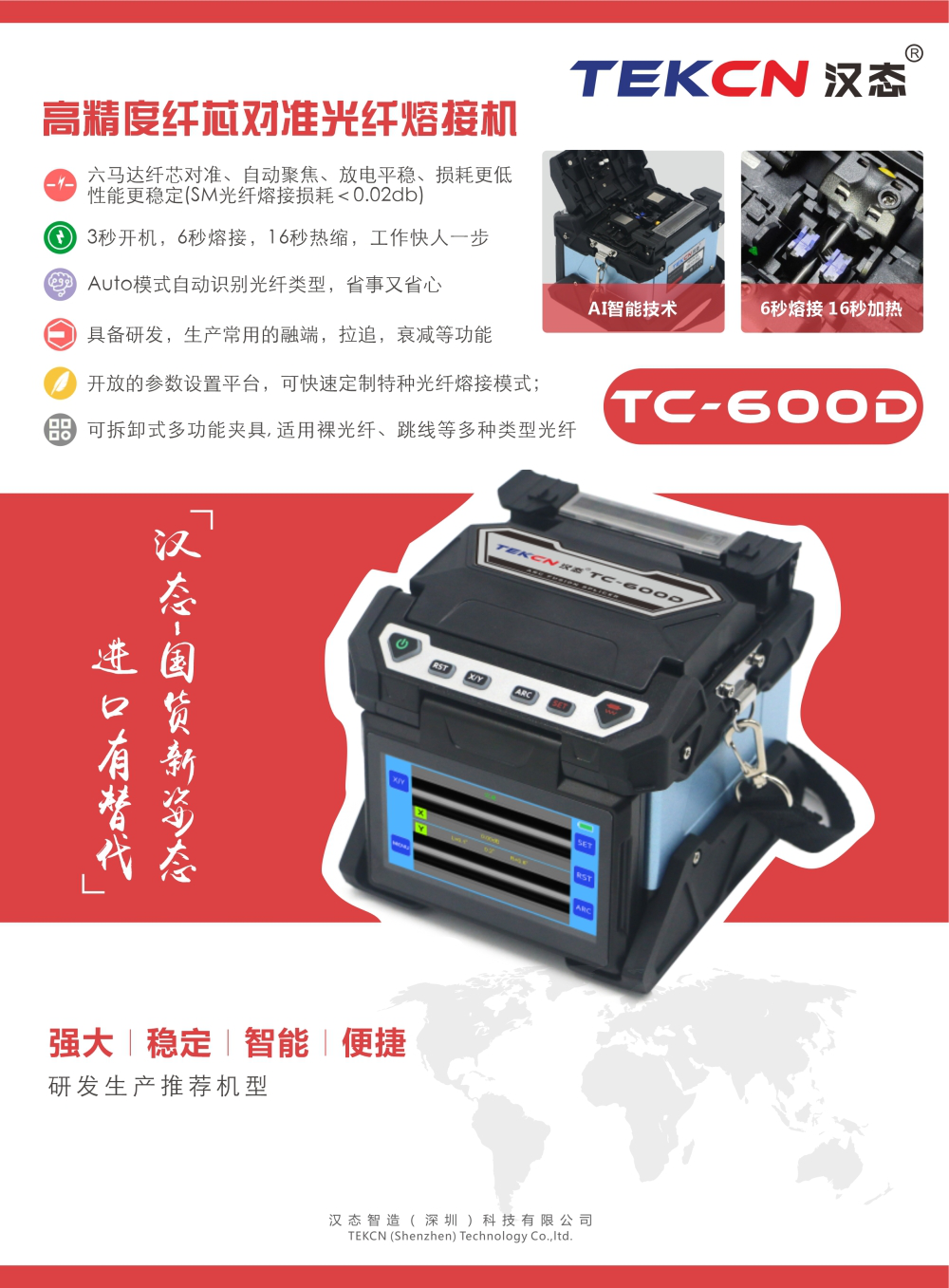

The TC-600D is a high-precision optical fiber fusion splicer designed for efficient and stable fiber optic splicing. It features advanced AI technology, fast splicing and heating times, and a user-friendly interface, making it ideal for research, production, and field applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions and Weight | 133x144x133(mm), 1.5kg (with battery 1.8kg) |
| Alignment Method | 6-motor core alignment system |
| Splicing Method | Single fiber |
| Clamp Type | Detachable multi-function clamp, suitable for bare fiber, pigtail, and jumpers |
| Applicable Fiber Types | SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-T G.655), BI(ITU-T G.657) |
| Applicable Fiber Diameter | Cladding diameter: 80-150μm, Coating diameter: 100-1000μm |
| Cutting Length | Coating layer diameter 250μm: 8-16mm; Coating layer diameter 250μm: Max cutting length 16mm |
| Splicing Mode | 100 groups of splicing modes can be stored, supporting custom parameter settings |
| Splicing Time | Typical 6 seconds |
| Heating Mode | 30 heating modes can be stored |
| Heating Time | Minimum 12 seconds, adjustable according to different heating modes |
| Applicable Bare Fiber Protection Tube | 10-60mm |
| Image Storage | 8000 images storage space (supports automatic storage) |
| Splicing Records | 20000 splicing records storage space (automatic storage) |
| Average Splicing Loss | SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZ/NZDS: 0.04dB, BI: 0.02dB (based on ITU-T standard test results) |
| Splicing Tensile Results | Meet the requirements of fiber tensile strength |
| Working Conditions | Altitude: 0-5000m, Relative humidity: 0-95%, Temperature: -10°C to +50°C, Max wind speed: 15m/s |
| Storage Conditions | Relative humidity: 0-95%, Temperature: -40°C to +80°C (Battery: -20°C to +40°C) |
| Display System | Dual cameras and dual light sources, 4.3-inch color display, high-definition image display |
| Magnification System | X/Y dual-axis magnification: 300x; X or Y single-axis magnification: 150x |
| Data Interface | MicroSD card up to 32GB, USB interface |
| Battery Capacity | 5200mAh large capacity battery, supports splicing and heating 240 times (2 batteries can be used alternately) |
| Electrode Life | 5000 times |
| Power Supply | AC100-240V, 50/60Hz |
