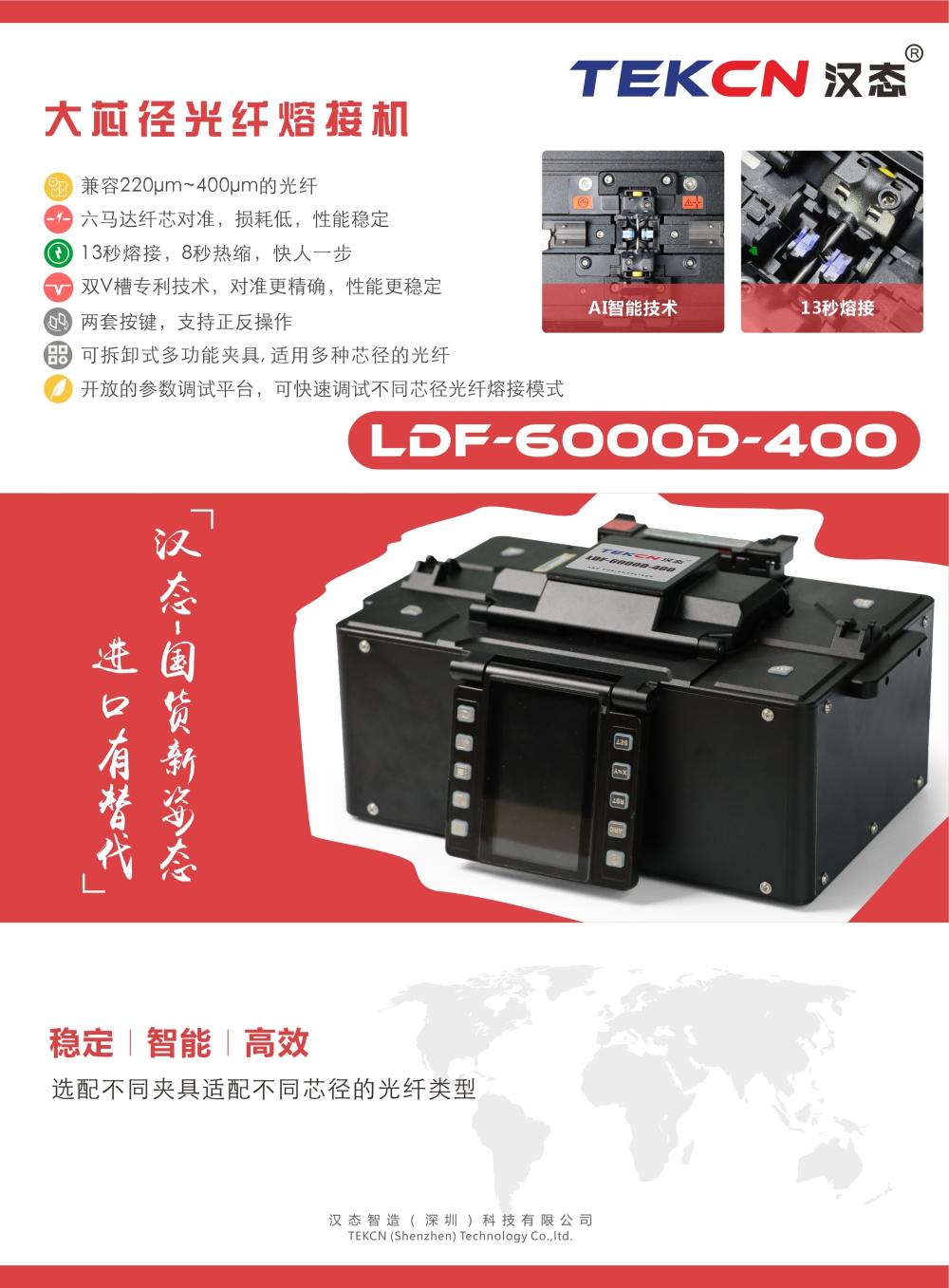

LDF-6000D-400 Fusion Splicer
The LDF-6000D-400 fusion splicer is designed for large-core optical fibers, offering high precision, stability, and efficiency. It supports various fiber diameters and provides advanced AI technology for quick and accurate splicing.
Save to Favorites
Overview

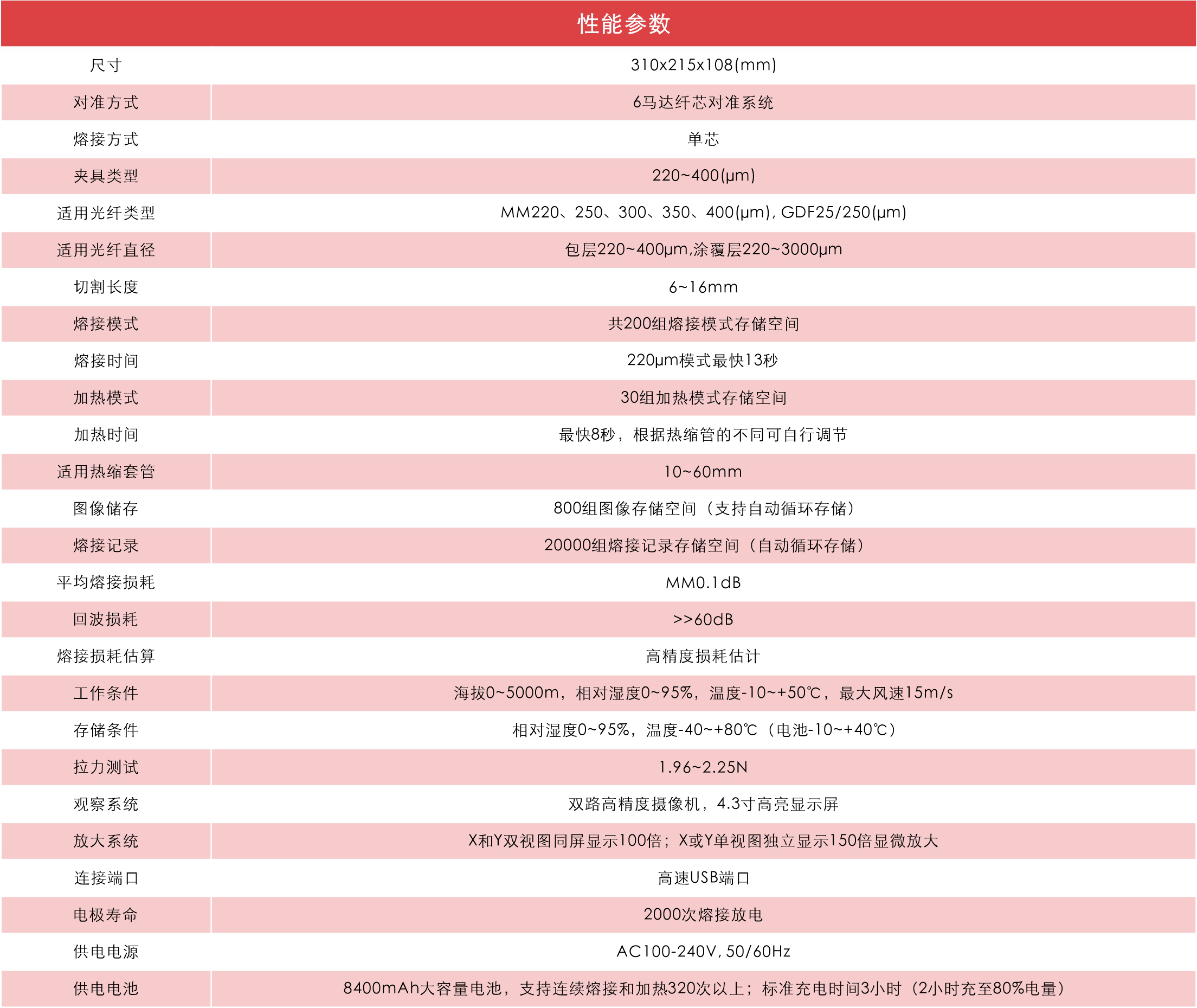

Specifications
| Parameter | Value |
|---|---|
| Dimensions | 310x215x108mm |
| Alignment Method | Six-motor close alignment system |
| Splicing Method | Single core |
| Fixture Type | 220-400μm |
| Cutting Length | 6-16mm |
| Splicing Mode | 200 preset modes with customizable options |
| Heating Mode | 30 preset heating modes with customizable options |
| Applicable Heat Shrink Tubes | 10-60mm |
| Image Storage | 800 groups of image storage (supports automatic storage) |
| Splicing Records | 20000 splicing records storage (supports automatic storage) |
| Average Splicing Loss | MM0.1dB |
| Return Loss | >60dB |
| Splicing Loss Estimation | High precision loss estimation |
| Working Conditions | Altitude ≤5000m, relative humidity ≤95%, temperature -10°C to +50°C, max wind speed 15m/s |
| Storage Conditions | Relative humidity ≤95%, temperature -40°C to +80°C (battery -10°C to +40°C) |
| Visual System | Dual cameras with high resolution, 4.3-inch color display |
| Magnification System | X/Y axis magnification up to 100x; X&Y axis magnification up to 50x |
| Connection Ports | Standard USB interface |
| Power Supply | AC100-240V, 50/60Hz |
