DCM Modules for Single-Mode Fiber DCM-C-20-652
Based on negative dispersion compensation fiber technology, these field-proven standard SMF DCM modules work hand-in-glove with standard single-mode fibers. Specifically, they complement the transmission characteristics of SMF-28™ fiber. DCM Modules efficiently counteract the effects of chromatic dispersion across the C-Band wavelengths by providing 100 percent dispersion slope compensation.
Save to Favorites
Overview

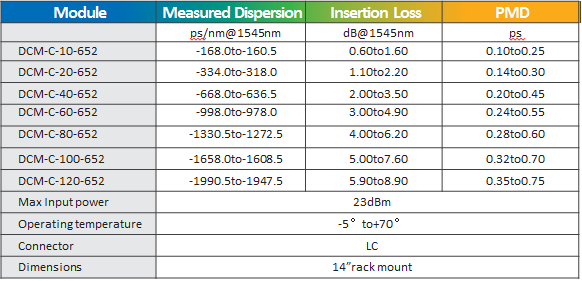

Specifications
| Parameter | Value |
|---|---|
| 实测色散 [@1545nm] | -334.0 to-318.0 ps/nm |
| 插入损耗 [@1545nm] | 1.10 to2.20 dB |
| PMD | 0.14 to0.30 ps |
| 最大输入功率 | 23 dBm |
| 工作温度 | -5° to+70° |
| 连接器 | LC |
| 外形尺寸 | 14" rack mount |
Applications
Key Features
Datasheet
