V-Groove and 1D Fiber Array

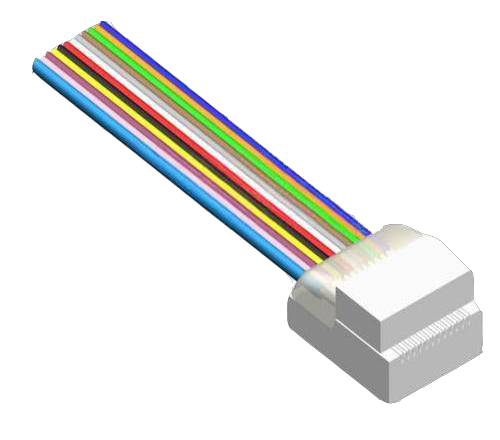

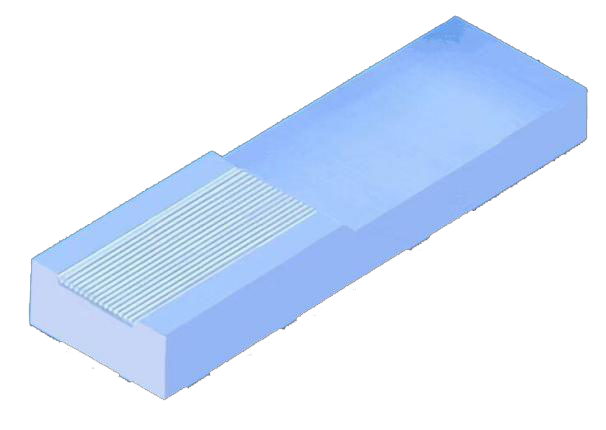

V-Groove is a precision machined groove used for accurate positioning and fixing of optical fibers, ensuring precise optical path alignment. The 1D fiber array consists of multiple optical fibers arranged in parallel, enabling high-efficiency optical signal transmission and distribution. This product is widely used in optical communication, sensing, and integrated optical systems.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material | Pyrex glass or quartz |
| Number of grooves | ≤60 |
| V-Groove Pitch (μm) | 250±127 |
| Pitch Error Max.(μm) | ±0.5 |
| V-Groove Angle (°) | 8 |
| End Face | Flat polished surface |
| Max. Optical Power (mW) | 300 |
| Operating Temperature (℃) | -5~+70 |
| Storage Temperature (℃) | -40~+85 |
Applications
Key Features
Datasheet
