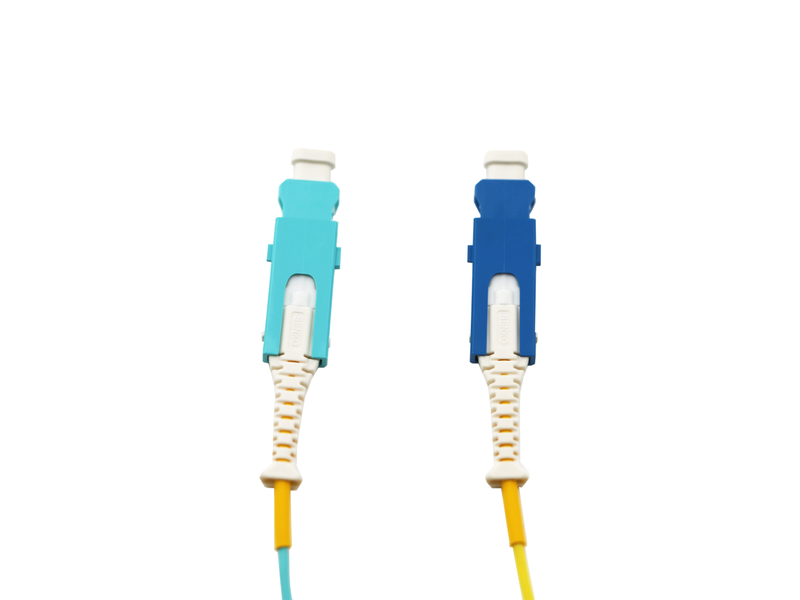

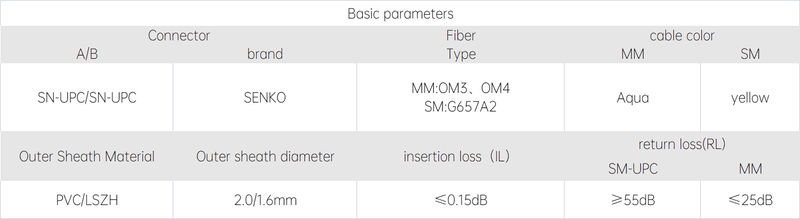

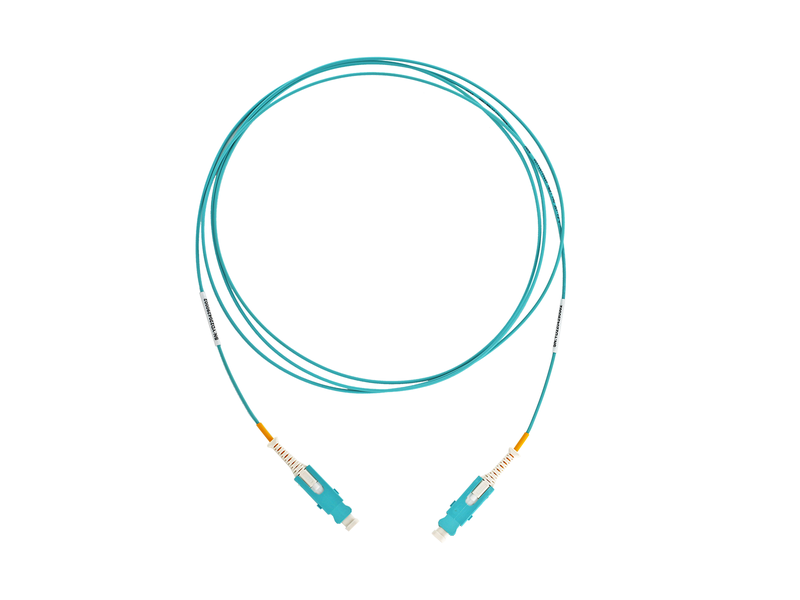

SN Connector-SM&MM-1.6mm

Rate: typ: 1.25G ~15G; double-channel working simultaneously Drop Time: Min: 18; typ: 22; max: 30; 10.3125G; typ: PRBS7. PRBS9、 PRBS15. PRBS23. PRBS31 Code: NRZ; typ: PRBSS8. PRBS9.5; typep: USER DEF; supporting 64-digit custom

The 10G miscode test (BERTWAveE210B) is a double-channel, multi-speed high performance miscode analysis device. The instrument provides one electrical channel and one light channel for an error code test at the same time; each channel supports the setting of multiple speed points from 1.25G ~ 11.318G; quick selection. There are multiple code options; user-defined code settings are provided; output signal band values are adjustable, polarity is freely rotated; two test modes are supported, timed and continuous; 4.3 inches high, clear touch screens are provided; and operation is easy. Channel mode; 1 electrical channel interface and 1 light channel interface working in parallel Code type; PRBS7, PRBS9, PRBS15, PRBS23, PRBS31, PRBS58, PRBS9 5, USER DEF (support for 64-bit custom code configurations); 155M, 622M, 1.25G, 2.125G, 2.488G, 3125G, 4.25G, 4.976G, 5G, 6.2G, 8.5G, 9.95328G, 10G, 10.3125G, 10.52G, 10.709G, 11.09G, 11.31G, 12.5G, 12.5G, 14.025G, 15G-hours; providing two-way trigger signal delivery bands; 50mV, 100mV, 150mV, 200mV, 250mV, 300mV, 350mv

Rate: typ: 5G~60G; 4 Channel works simultaneously Drop Time: Min: 18; typ: 22; max: 30; 10.3125G, 20-80%; typ: PRBS7. PRBS9、PRBS15. PRBS23.PRBS31; NRZ Code: typ: PRBSS8.PRBS9.5; typep: USER DEF; supporting 64-digit custom

The 60G miscode test (BERTWAVE E415B) is a multi-channel, multi-velocity, high-performance miscode analysis device. The instrument provides a simultaneous error-code test of 4 channels; each channel supports multiple speed settings ranging from 1.25 G to 15 G; and multiple code types are available; user-defined code settings are available; output signal band values are adjustable, polarity is freely rotated; two test modes are supported for timing and continuity; 4.3 inches of high resolution touch displays are provided; and operations are easy to operate. Channel mode; 4 electrical interfaces capable of working in parallel code type; PRBS7, PRBS9, PRBS15, PRBS23, PRBS31, PRBS58, PRBS9 5, USER DEF (support for 64-bit self-defined code setting); 155M, 622M, 1.25G, 2.125G, 2.488G, 3.125G, 4.25G, 4.976G, 5G, 6.25G, 8.5G, 9.95328G, 10G, 10.3125G, 10.52G, 10.709G, 11.09G, 11.09G, 11.318G, 12.5G, 14.0G, 15G hours; provision of two-way triggers for the transmission of a range; 50mv, 100mV, 150mV, 200mV, 250mV, 300mV, 350mV, 400mV, 450mV, 500mV, 550mV, 500mV, 600mV, 600mm, 600m

The high-speed AD-5000 PCIe data acquisition card is a 5GSps 10bit high-speed ADC; a 5-high-alignment FPGA and 2Gbyte DDR3-enabled data sampling, dispatch, and signal processing panel matching one Stratix5; a high-speed PCI interface; features that are robust, platform-based, simple and easy to use; and suitable for systems with high-speed collection needs and a large amount of data return. 2Gbyte capacity DDR3 memory ADC supports external reference clocks The structure of ADC + FPGA+ MMU; 10bit high-speed ADCs can be completed for multiple communication systems; a maximum sampling rate of up to 5 GSps; up to 1/2/4 channels can be achieved and AVRMCUs can be collected in conjunction with FPGA via external bus; a rich external interface can be operated with more complex control algorithms; USB3.0, single machine communication portals, PCIe interfaces added to the front end of the simulation (replaceable); input into DC laced 500M bandwidth; transferable slots; wider range of inputs; maximum support for 5Vpp

bandwidth: 3200MHz Sample bits: 12bitbit Sample bits: 2CH6400MSps Sample Rate

Applications profiles; Jupiter 10 PCIe data acquisition cards; major upgrades to the FPGA and DDR memory and PCI interfaces; upgrades to a set of 2 6.4 GSps 12bit ADCs; matching 1 FPGA and MMU treatment panels; support 6.4 GSps 12bit ADCs entered or configured to 4-road 3.2 GSps; high-speed PCIs interfaces; robust, platform-based, simple and easy-to-use features; systems suitable for multiple-channel demand at medium-speed speed and requiring data retrieval and real-time processing. It also supports the Thunder E interface; it can be used externally. Implementation of the ADC+FPGA+MCU architecture; FPGA for the design of multiple communication systems using ADC for the Altera series of Aria10 12bit high-speed two-channels; maximum sample rate up to 6.4 GSps; up to two ADCs on board; 6.4 GSps input on 2-way; or interface of 4-road 3.2 GSps AVRMCU with FPGA via external bus; functionally complex control algorithms rich external interface; USB 3.0, single machine communication portal, PCle x 8 Gen.3 interface, 1 SFP+ 8 DR4 interface (8GB)
