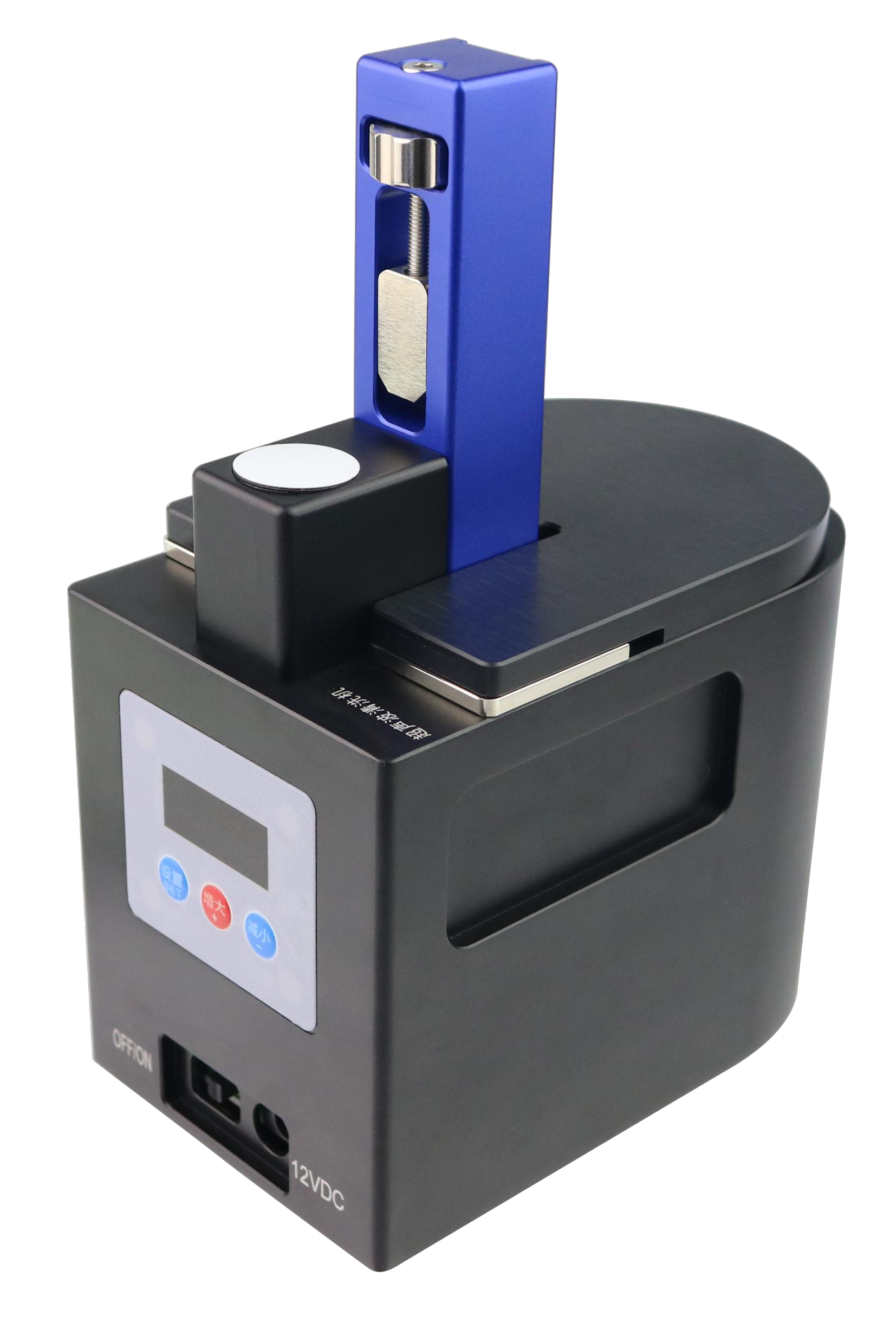

Ultrasonic Fiber Cleaning Machine MY2012
The ultrasonic fiber cleaning machine is designed for batch processing of optical fibers. It features an adjustable rotary knob for controlling cleaning intensity and duration, allowing users to set repeated cleaning parameters. The fiber holder provided can adjust the immersion depth and is compatible with specific fiber holders (sold separately). The fiber end face is tilted to facilitate immersion in the cleaning solution, initiating the ultrasonic cleaning process. After the selected cleaning duration, the ultrasonic wave stops automatically. Each cleaning machine is equipped with a fiber holder to ensure the fiber is immersed in the solution.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Applicable Fiber Diameter(μm) | 125~600μm |
| Edge Diameter(mm) | 20mm |
| Suction Nozzle Length(mm) | 50mm |
| Liquid Tank Capacity(ml) | 100 |
| Liquid Tank Dimensions L×W×H(mm) | Φ43×71W |
| Cleaning Duration(s) | >1 (highest configuration) |
| Ultrasonic Output Frequency(kHz) | 75.2~76.4kHz |
| Converter Power Max.(W) | 6W |
| Working Power(W) | 36W |
| Working Current(A) | 5A |
| Input Power(V) | 25V |
| Dimensions L×W×H(mm) | 176.5×121.5×104.8W |
| Weight(kg) | 1.28kg |
| Operating Environment Requirements | Temperature<50°C, Humidity<85% |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-

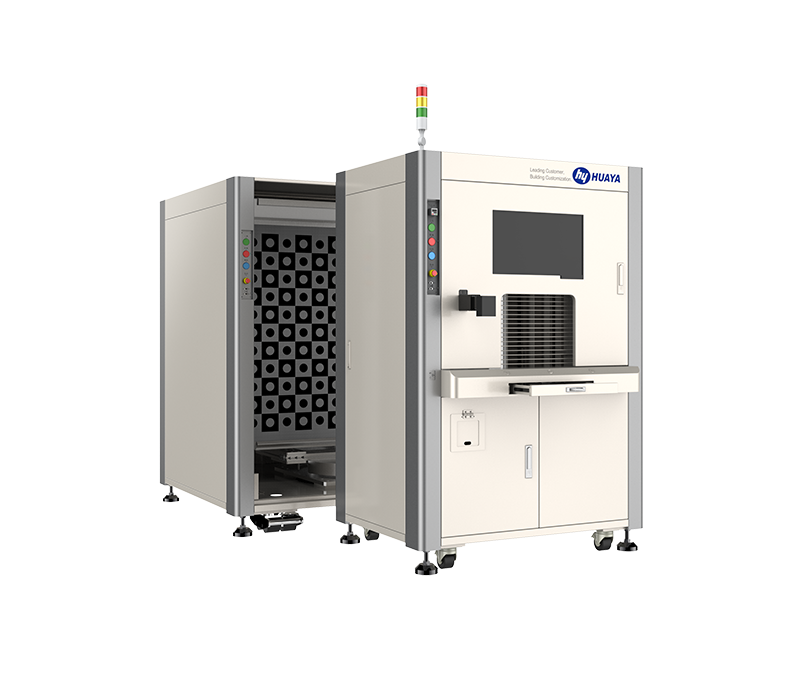

Internal-Parameter Calibration Equipment
Optical Production Equipment
Huayazhuhai
Overall dimensions: L1600mmx W1200mm x H1800mm Working Surface Height [±50mm]: 950mm±50mm Chart Dimensions: 800mmx1200mm
Huaya's intrinsic-parameter calibration equipment was among the first domestically mass-produced systems and has been recognized by several leading automotive camera module manufacturers. As ADAS adoption increases, this equipment has become essential to ADAS camera manufacturing. It calibrates and tests COD/PP/EFL (focal length ratio), radial distortion K1-K6 and tangential distortion P1-P2.
-
Dual-Track AA Equipment (ADAS Camera AA)
Optical Production Equipment
Huayazhuhai
Voltage: 220v16A Gas pressure: 0.4~0.7Mpa Industrial computer: IPC+Win7
Huaya Intelligent's dual-track AA equipment is one of its most mature and representative products, developed for AD AS cameras and ultrahigh-definition 800W camera modules. Traditional AA equipment uses either the Sensor or Lens as a reference and aligns the other while maintaining equipment precision. Previous processes can cause the reference part to differ substantially from the system optical axis. Higher pixel counts, especially the longer EFL of ADAS cameras, make differences between theoretical and actual axes more critical. The dual-adjustment-stage system uses high-precision coordinated adjustment to establish the optimum Sensor plane and correct the Lens for best image sharpness and optical axis. Parallel dual tracks improve both alignment precision and speed, with particular advantages for automotive ADAS modules.
-

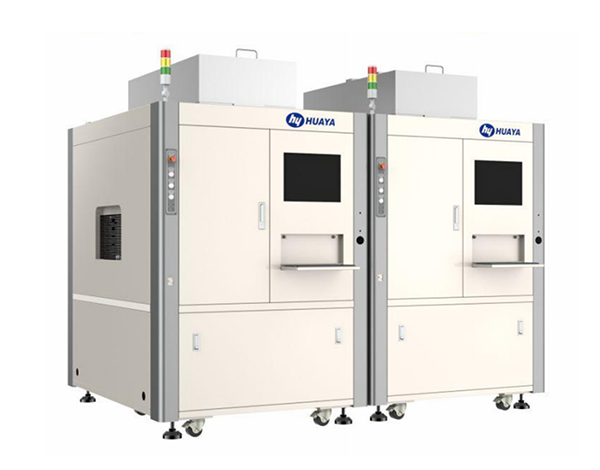

Camera Module Production-Line AA Equipment
