Fiber Connector Polishing Terminal Tool Kit (Professional Type)

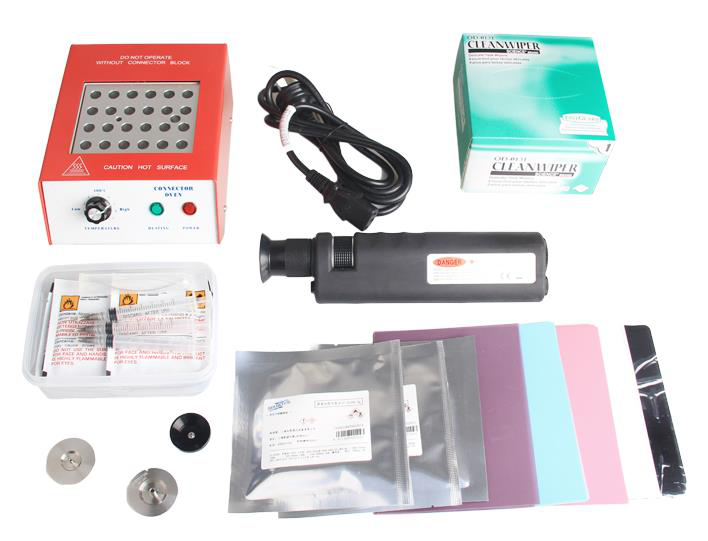

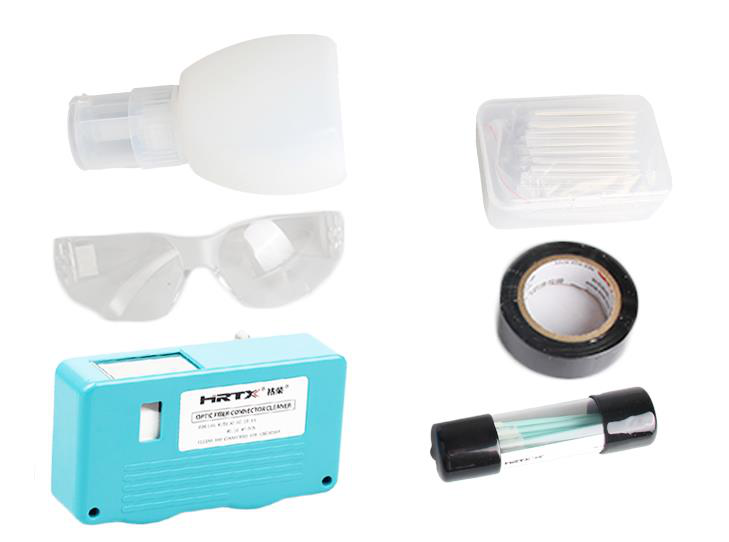

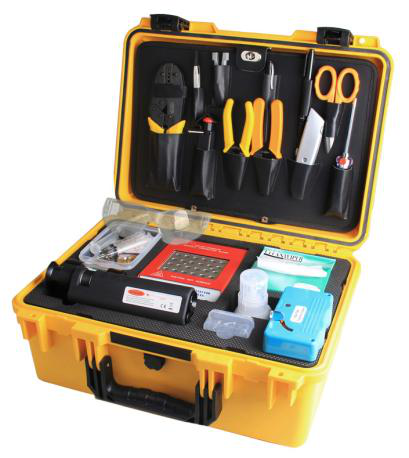

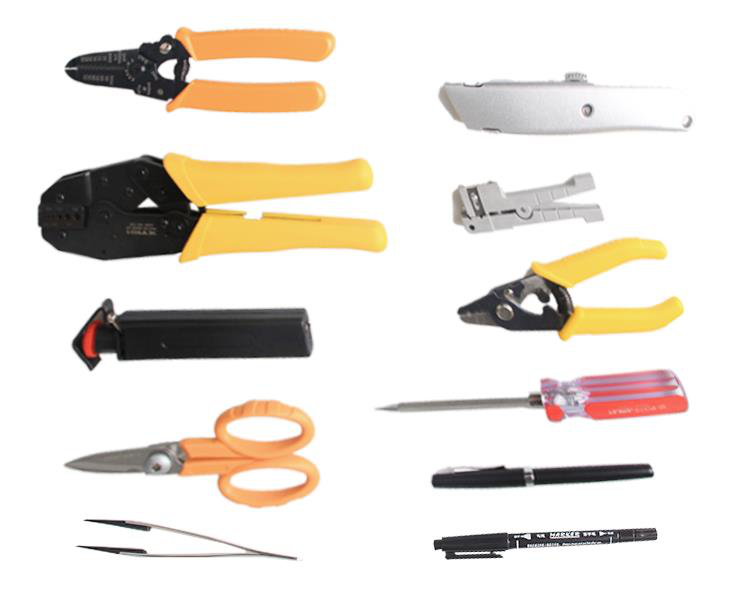

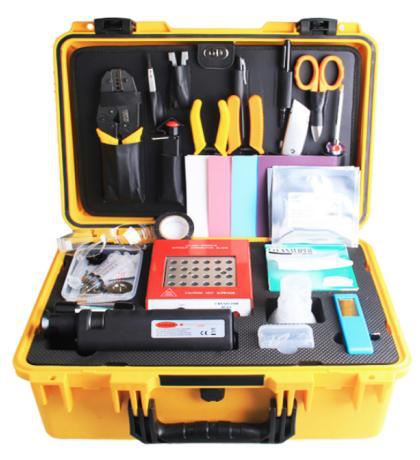

The new fiber polishing tool kit is equipped to complete the entire process from fiber stripping, pressing, gluing, fiber cutting, polishing, end-face inspection, and cleaning. It includes all the tools and equipment required for on-site polishing of fiber connectors, especially suitable for outdoor field polishing. The surface and ferrule fixture can produce 100 fiber connectors. This tool kit is designed for professional fiber optic connector polishing, providing users with the best experience. The tool kit uses high-quality materials, ensuring durability, corrosion resistance, and stable structure.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Kevlar/Aramid Scissors | 1 |
| Fiber Cutting Pen | 1 |
| Fiber Micro Stripping Knife AWG30-22 (0.25~0.80mm) | 1 |
| Fiber Fusion Fixture | 1 |
| Tube Stripper 45-162 Grey | 1 |
| Fiber Rotary Stripping Knife | 1 |
| Handheld Endface Inspector 400x Magnification, φ1.25mm and 2.5mm Adapters | 1 |
| Ferrule Adapter Metal Wire | 10 |
| Tweezers 130mm | 1 |
| 24-Hole Fiber Curing Oven | 1 |
| Epoxy Curing Glue 353ND | 1 |
| Hand Polishing Plate, 2.5mm SC/FC/ST | 1 |
| Hand Polishing Plate, 1.25mm LC/MU | 1 |
| Polishing Pad | 1 |
| Cleaning Wet Cloth | 10 |
| Cleaning Paper 280 Sheets | 1 |
| Cleaning Stick | 25 |
| Cleaning Solution | 1 |
| Screwdriver | 1 |
| Utility Knife | 1 |
| Black Marker Pen | 1 |
| Safety Goggles | 1 |
| Toolbox (487×290×178mm) | 1 |
