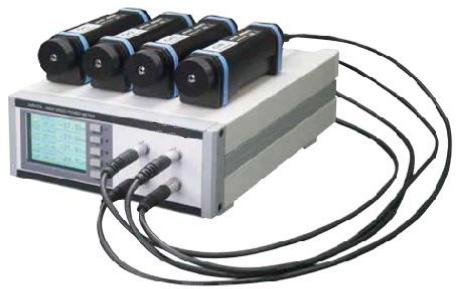

MY8103 High-Speed Optical Power Meter
The MY8103 high-speed optical power meter provides excellent dynamic range and absolute accuracy. It uses RS232-C and RJ45 communication interfaces, allowing direct communication with a PC. The communication adopts a simple and standard mode, which can be flexibly configured for single external probe use or external probe connection to the instrument. It is suitable for large-scale production, research, and high-precision applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Detector Spot Size | φ2.0 |
| Wavelength Measurement Range | 850~1700 |
| Model A Optical Power Measurement Range | -80~+10 |
| Model C Optical Power Measurement Range | -60~+25 |
| Channel Uncertainty | 0.04 |
| Measurement Unit | dBm/Watt |
| Display Resolution | 0.01/0.001dB |
| Dimensions | 210×235×380 |
| Weight | ≤5 |
| Operating Power | AC220V (50Hz) |
| Analog Voltage Output | 0~2.5 |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-
Optical power meter series PMS-9016-2043
Optical Power Meters
Max-ray
探测器类型: InGaAs Photodiode 是否积分球: Yes 工作波长: typical:900~1650 nm
The optical laser power meter offers configurable models for different measurement needs. Power ranges include 1nW~10mW and 10µW-10W, with spectral options of 400-1100, 900-1650 and 1100~2200nm for various lasers. Power resolution reaches 0.001dB for high precision. Data-analysis functions and host software display numerical or graphical results and trends for research and industrial applications.
-
Optical power meter series PMS-4011-2040
Optical Power Meters
Max-ray
探测器类型: Si Photodiode 是否积分球: Yes 工作波长: typical:400~1100 nm
The optical laser power meter offers configurable models for different measurement needs. Power ranges include 1nW~10mW and 10µW-10W, with spectral options of 400-1100, 900-1650 and 1100~2200nm for various lasers. Power resolution reaches 0.001dB for high precision. Data-analysis functions and host software display numerical or graphical results and trends for research and industrial applications.
-

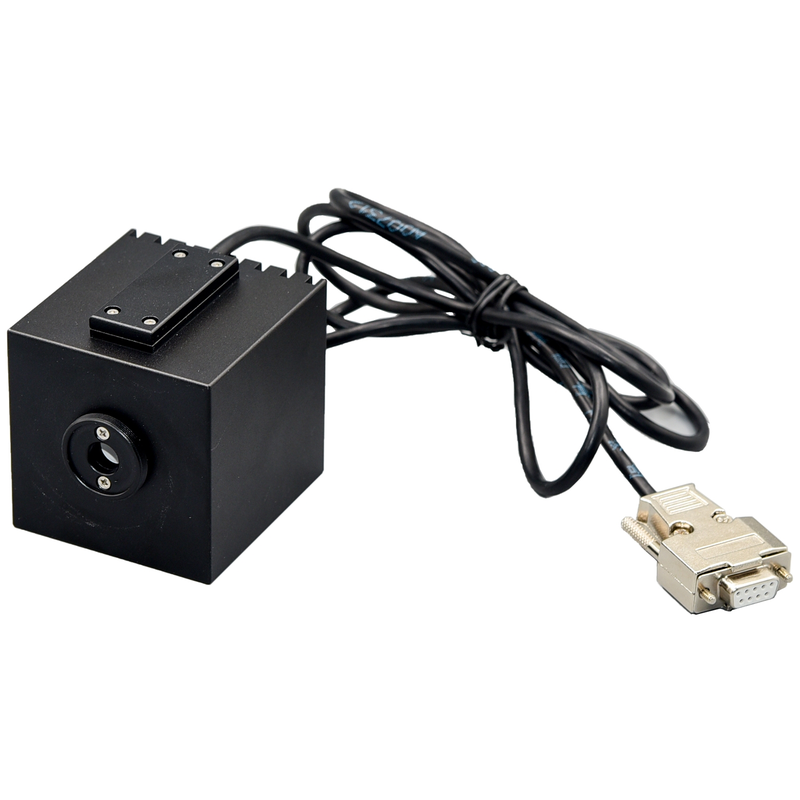

Optical power meter series PMS-4011-3030
Optical Power Meters
Max-ray
探测器类型: Si Photodiode 是否积分球: Yes 工作波长: typical:400~1100 nm
The optical laser power meter offers configurable models for different measurement needs. Power ranges include 1nW~10mW and 10µW-10W, with spectral options of 400-1100, 900-1650 and 1100~2200nm for various lasers. Power resolution reaches 0.001dB for high precision. Data-analysis functions and host software display numerical or graphical results and trends for research and industrial applications.
-
Optical power meter series PMS-1122-2040
Optical Power Meters
Max-ray
探测器类型: InGaAs Photodiode 是否积分球: Yes 工作波长: typical:1100~2200 nm
The optical laser power meter offers configurable models for different measurement needs. Power ranges include 1nW~10mW and 10µW-10W, with spectral options of 400-1100, 900-1650 and 1100~2200nm for various lasers. Power resolution reaches 0.001dB for high precision. Data-analysis functions and host software display numerical or graphical results and trends for research and industrial applications.
-

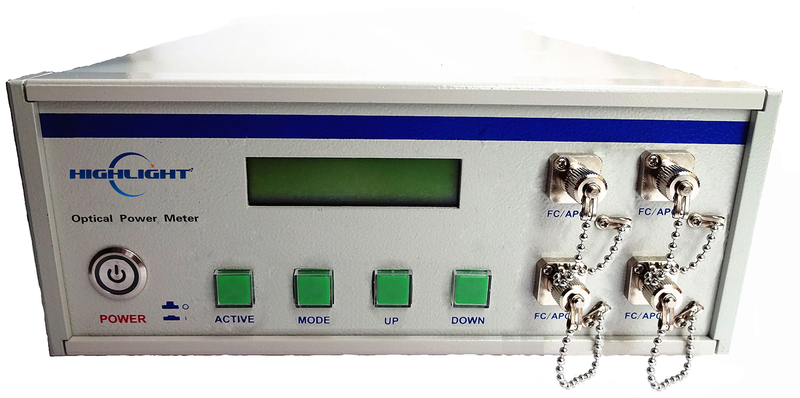

Multi-Channel Optical Power Meter
Optical Power Meters
Hltoptical
工作波长 [未标注的范围备选项；未提供探测器/材料/Model对应关系]: 600~1100 or800~1700 量程: -70~+20 dBm 不Confirm度: ±3 %
Multi-Channel Optical Power Meter in fiber optic system provides both absolute and relative power measurement functions.Photodiodes with InGaSn and large active area are used to implement precise power measurement in multiple wavebands.OEM is available.
