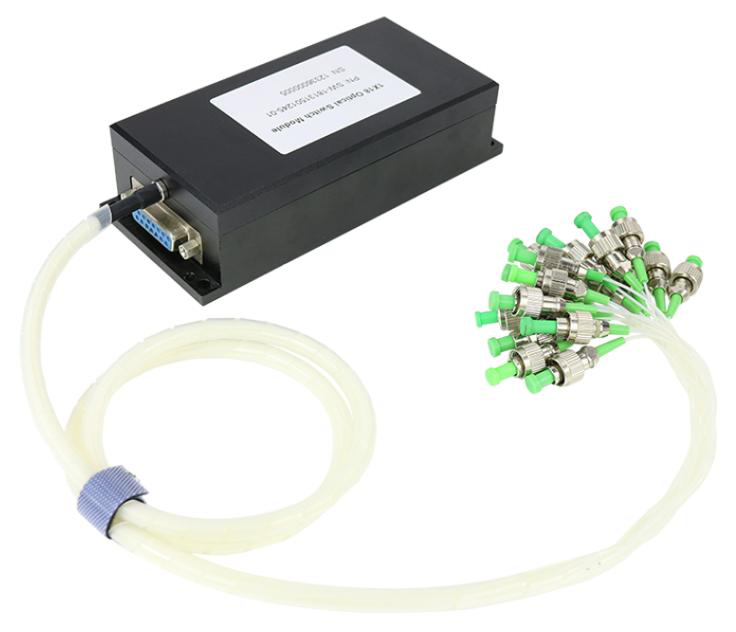

Mechanical Optical Switch
The mechanical optical switch features low insertion loss, compact size, and high reliability. It is used for dynamic configuration of optical add-drop multiplexers (OADM), optical cross-connects (OXC), and system monitoring and protection devices. It enables optical path switching and optical cross-connect switching, making it suitable for integration into high-density communication systems. It is available in both latching and non-latching control types.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Channel 1≤N≤12 | 1≤N≤12 |
| Channel 16≤N≤32 | 16≤N≤32 |
| Channel 32≤N≤64 | 32≤N≤64 |
| Channel 64≤N≤128 | 64≤N≤128 |
| Insertion Loss (dB) 1≤N≤12 | ≤1.0dB |
| Insertion Loss (dB) 16≤N≤32 | ≤1.0dB |
| Insertion Loss (dB) 32≤N≤64 | ≤1.5dB |
| Insertion Loss (dB) 64≤N≤128 | ≤2.0dB |
| Operating Wavelength (nm) | 850±40 or 1260~1650 |
| Crosstalk (dB) MM | ≥35dB |
| Crosstalk (dB) SM | ≥50dB |
| Polarization Dependent Loss (dB) | ≤0.05dB |
| Wavelength Dependent Loss (dB) | ≤0.25dB |
| Temperature Dependent Loss (dB) | ≤0.25dB |
| Repeatability (dB) | ≤0.02dB |
| Lifetime (cycles) | ≥10⁷ |
| Switching Time (ms) | ≤8ms |
| Transmission Power (mW) | 500mW |
| Operating Temperature (°C) | -20~+70°C |
| Storage Temperature (°C) | -40~+85°C |

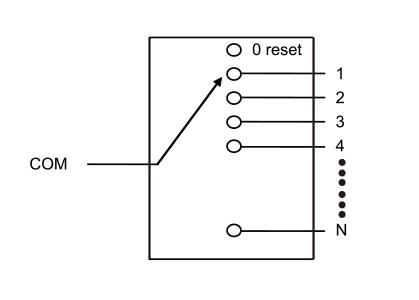

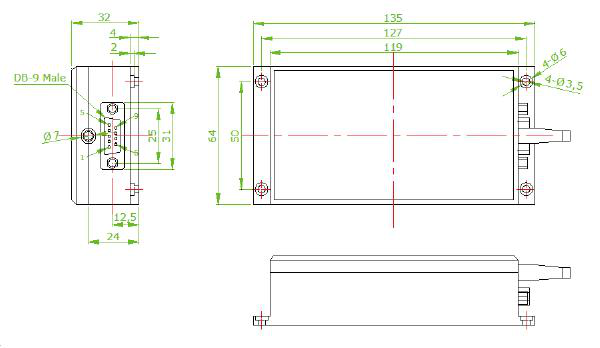

| Package Dimensions (mm) 1≤N≤12 | 135×64×32 |
| Package Dimensions (mm) 12≤N≤16 | 184×78×36 |
| Package Dimensions (mm) 16≤N≤32 | 140×77.5×64 |
| Package Dimensions (mm) 32≤N≤88 | 184×156×66 |
| Package Dimensions (mm) 8≤N≤128 | 184×220×66 |
