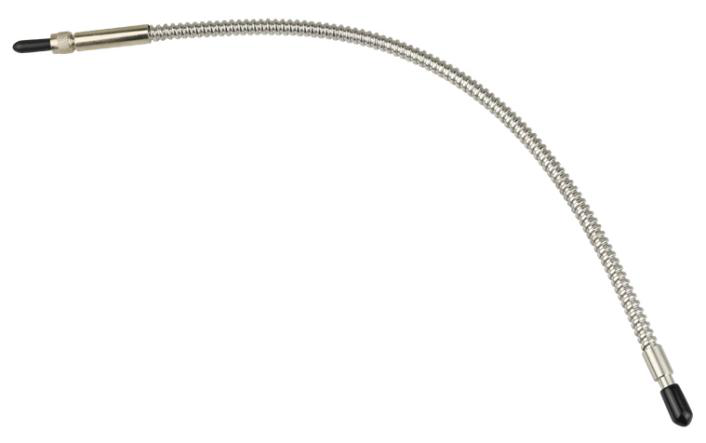

Fiber Bundle

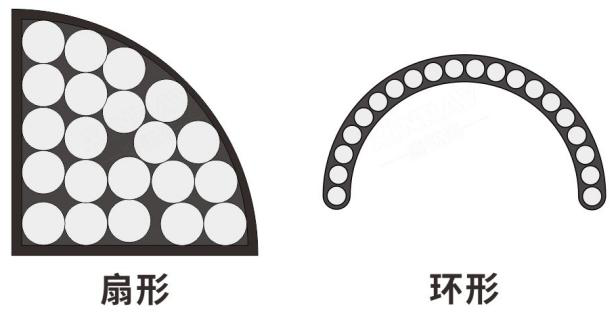

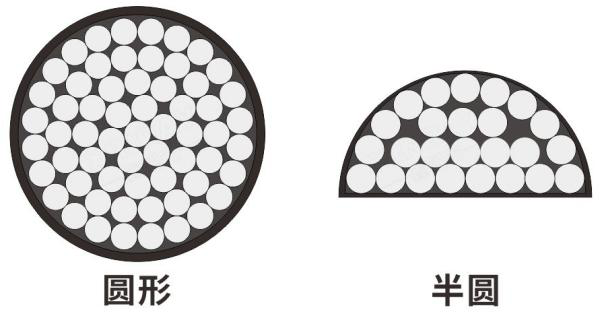

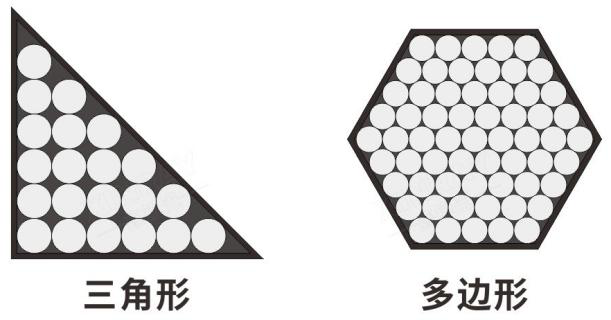

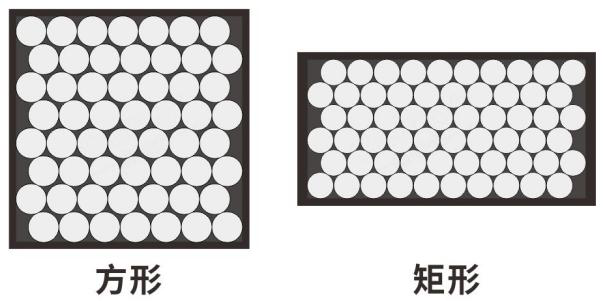

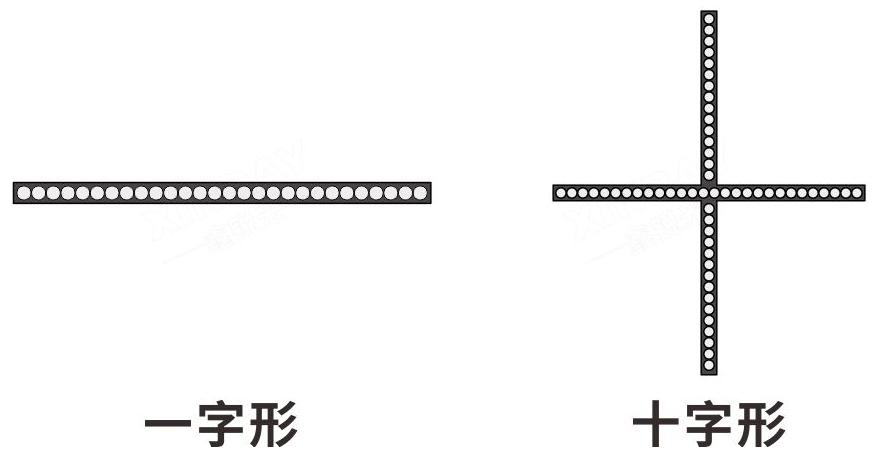

Fiber bundles are composed of multiple optical fibers, commonly made of plastic optical fibers, glass optical fibers, and quartz optical fibers. They are widely used in micro-imaging, CCD auxiliary lighting, museum lighting, machine vision transmission lighting, and more. They feature uniform light distribution, 360-degree illumination, and are suitable for various applications such as laser transmission, UV curing, and industrial sensing.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Aperture Diameter (mm) Plastic Optical Fiber | 3, 4, 5, 6, 7, 8mm |
| Outer Diameter (mm) Plastic Optical Fiber | 6, 8, 10, 12mm |
| Core Material Plastic Optical Fiber | PMMA |
| Cladding Material Plastic Optical Fiber | Coating Material |
| Numerical Aperture NA Plastic Optical Fiber | 0.5±0.02 |
| Core Refractive Index Plastic Optical Fiber | 1.49 |
| Fiber Type Plastic Optical Fiber | Step-Index |

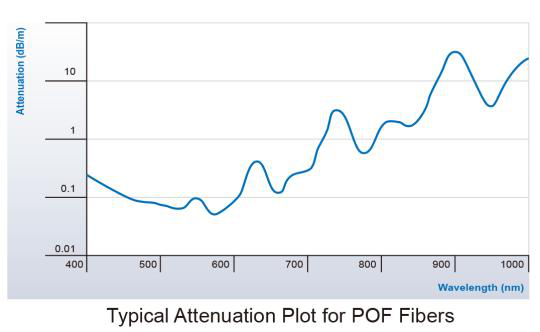

| Operating Wavelength (nm) Plastic Optical Fiber | 420–680 |
| Minimum Bending Radius Plastic Optical Fiber | ≥8D |
| Length (m) Plastic Optical Fiber | Customizable |
| Operating Temperature (℃) Plastic Optical Fiber | -40–+85 |
| Aperture Diameter (mm) Glass Optical Fiber | 1, 2, 3, 6, 10mm |
| Outer Diameter (mm) Glass Optical Fiber | 6, 6, 6, 6, 40mm |
| Core Material Glass Optical Fiber | Glass |
| Cladding Material Glass Optical Fiber | Glass Material |
| Single Fiber Diameter (um) Glass Optical Fiber | 15–55 |
| Numerical Aperture NA Glass Optical Fiber | 0.56±0.02, 0.6±0.02, 0.64±0.02, 0.83±0.02 |
| Light Acceptance Angle Glass Optical Fiber | 70°, 75°, 80°, 120° |

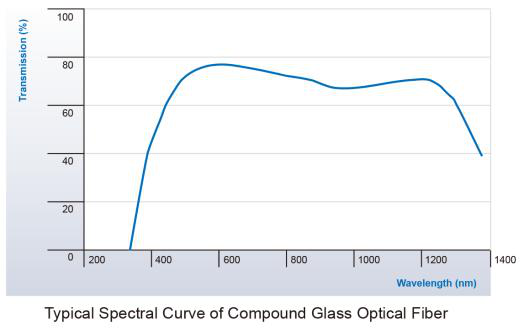

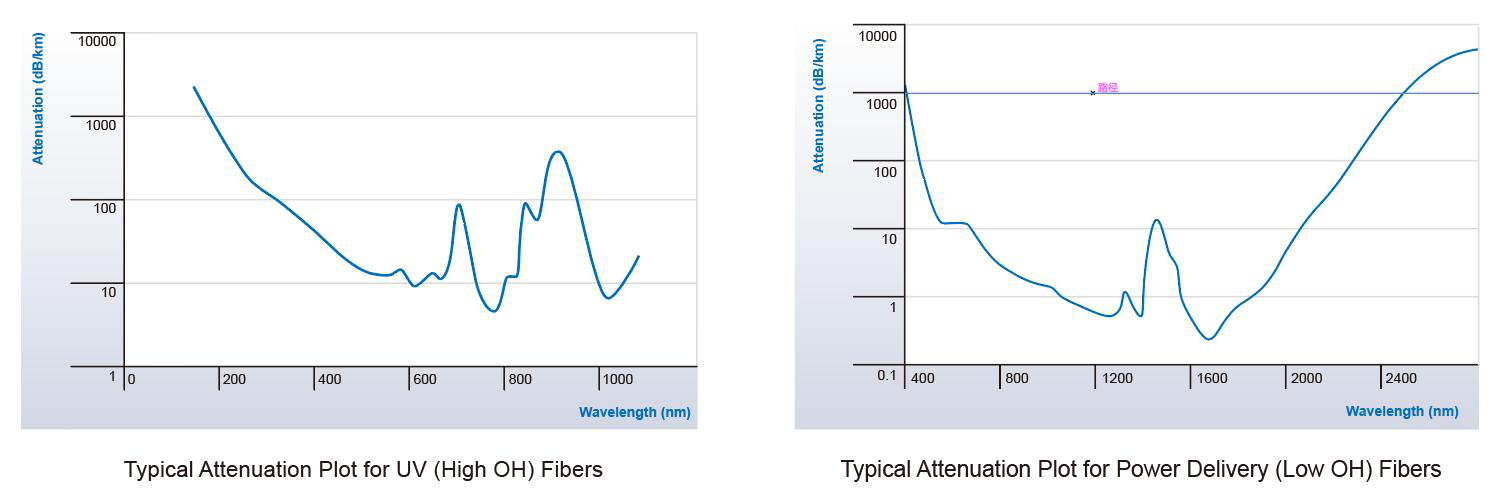

| Operating Wavelength (nm) Glass Optical Fiber | 380–1300 |
| General Operating Temperature (℃) Glass Optical Fiber | -40–+200 |
| Special Adhesive Operating Temperature (℃) Glass Optical Fiber | -40–+600 |
| Aperture Diameter (mm) Quartz Optical Fiber | 1, 1.5, 2, 2.5, 3mm |
| Outer Diameter (mm) Quartz Optical Fiber | 6, 6, 6, 8, 10mm |
| Core Material Quartz Optical Fiber | Pure Quartz |
| Cladding Material Quartz Optical Fiber | Coating Material |
| Cladding Material Quartz Optical Fiber | High-Temperature Resistant Material |
| Minimum Bending Radius Quartz Optical Fiber | ≥2000 |
| Numerical Aperture NA Quartz Optical Fiber | 0.22±0.02 or 0.37±0.02 |
| Fiber Type Quartz Optical Fiber | Step-Index |
| Light Acceptance Angle Quartz Optical Fiber | 25°, 43.4° |
| Operating Wavelength (nm) Quartz Optical Fiber | 200–1200 or 400–2600nm |
| Length (m) Quartz Optical Fiber | 1, 2, or customizablem |
| Operating Temperature (℃) Quartz Optical Fiber | -40–+85 or -40–+300°C |
