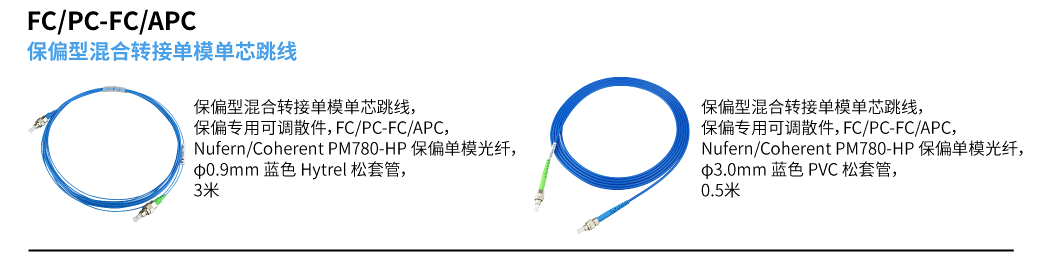

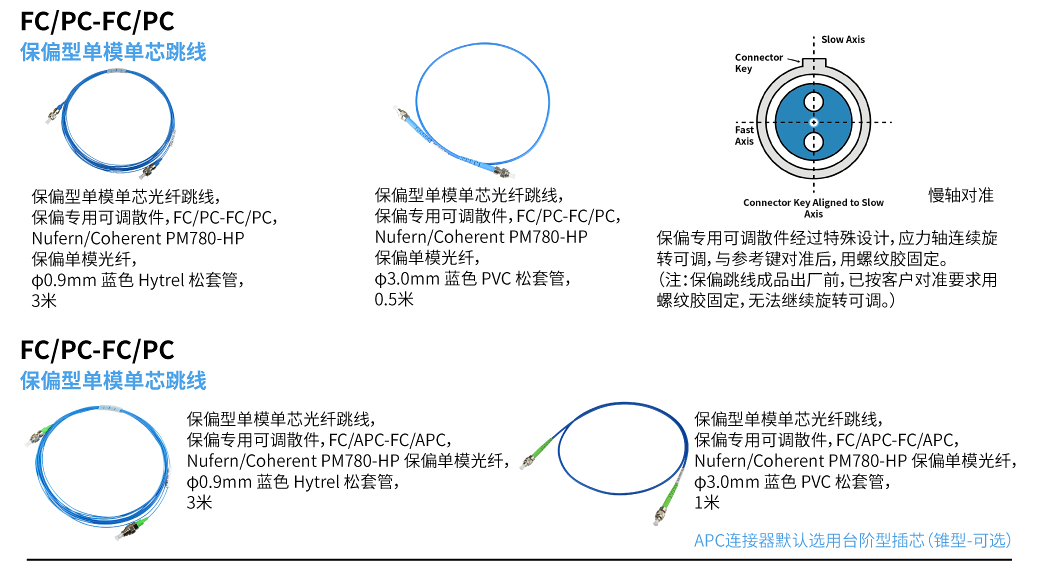

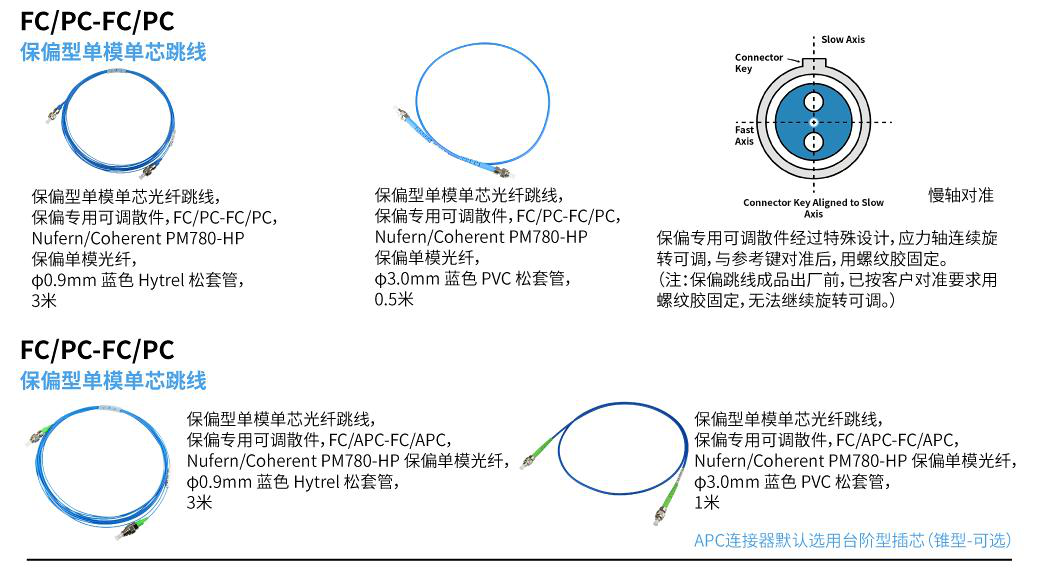

Polarization Maintaining Fiber Patch Cord
Polarization maintaining fiber patch cord is a type of optical fiber connector that can be installed at one or both ends. It provides standard polarization-maintaining fiber with features such as low insertion loss, high return loss, and high extinction ratio. It is suitable for various applications requiring stable and reliable optical connections.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Typical Insertion Loss (dB) | 0.45dB |
| Maximum Insertion Loss (dB) | 0.60dB |
| Connector Type | FC |
| Connector Type | SC |
| Connector Type | LC |
| Connector Type | ST |
| Connector Type | MU |
| Typical Extinction Ratio (dB) | 23dB |
| Interchangeability (dB) | ≤0.02dB |
| Repeatability (dB) | ≤0.2 (Max.) 1000 cycles |
| Maximum Power Handling (CW) (mW) | 300mW |
| Maximum Tensile Load (N) | 5N |
| Operating Temperature (°C) | -5~+50°C |
| Storage Temperature (°C) | -20~+85°C |
| Standard Fiber Length (m) | 1 (other lengths optional)m |
| Additional | Optional coating: AR<0.25%, standard products without coating |
Applications
Key Features
Datasheet
