MY-PMFS-9100 Polarization Fiber Fusion Splicer
Category
Fiber Optics
Origin
China

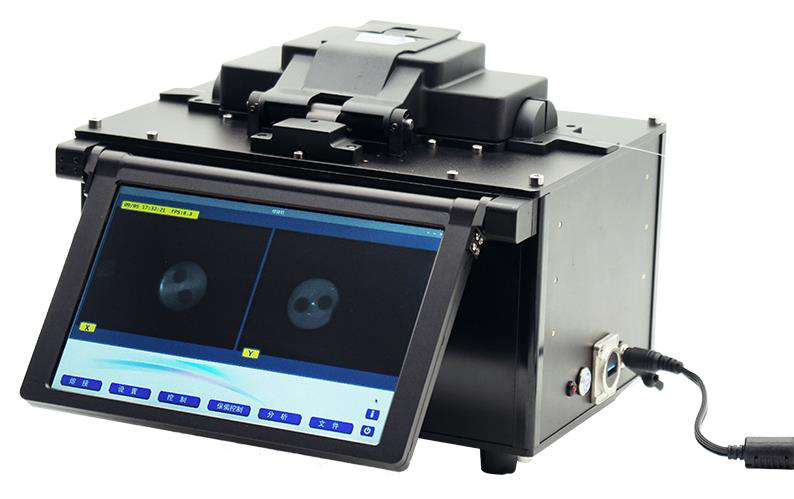

MY-PMFS-9100 is a dual-electrode polarization fiber fusion splicer designed for splicing standard optical fibers and polarization-maintaining fibers. It features end-face imaging for fiber observation, automatic alignment of polarization axes, and compatibility with various fiber specifications to meet diverse splicing needs.

Specification Snapshot
Heat Shrink Tube Diameter (mm)
40, 60 series
Request a Quote Download Datasheet Chat
Save to Favorites Save to Favorites

Overview

MY-PMFS-9100 is a dual-electrode polarization fiber fusion splicer designed for splicing standard optical fibers and polarization-maintaining fibers. It features end-face imaging for fiber observation, automatic alignment of polarization axes, and compatibility with various fiber specifications to meet diverse splicing needs.

Specifications

ParameterValue
Applicable FiberPMF (including panda type, bow-tie type, elliptical type), SMF (G.652), MMF (G.651), DSF (G.653), NZDSF (G.655), BIF (G.657); compatible with coated fibers with diameters of 900μm and connectors/adapters up to 6cm
Single-side Push Stroke (μm)0-3
Coating Diameter (μm)100-730 (adjustable)
Cladding Diameter (μm)40-400 (adjustable)
Splicing Time (s)NZDSF/LDF/M≤12; PMF (PANDA) ≤35
Splicing/Connection Loss (dB)Single-mode fiber (ITU-T G652): 0.01-0.03; Multi-mode fiber (ITU-T G651): 0.01-0.04; Colored single-mode fiber (ITU-T G653): 0.03-0.06; PMF: 0.02-0.07
Cleanness Ratio (dB)-38
Heat Shrink Tube Diameter (mm)40, 60 series
Maximum Heating Temperature (°C)250
Electrode Life≥5000 cycles; typical 3000 cycles
Tension Test (N)Standard 2N-30N (adjustable)

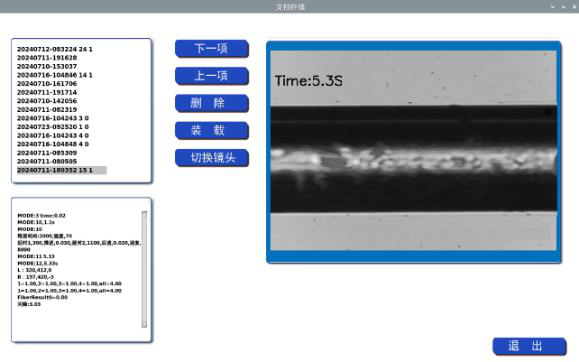

MagnificationFiber end-face 385/250 times; fiber alignment 400 times
Image DisplayLarge screen display; resolution not less than 7 inches; 21-inch external screen available for enhanced image display
Alignment MethodCladding alignment; core alignment
Axis Alignment MethodEnd-face; side-face

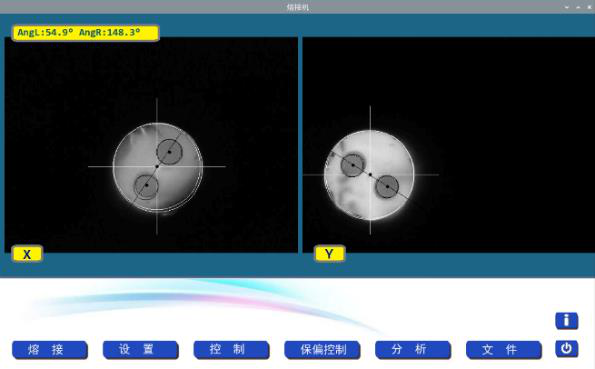

PMF ImagingSimultaneous left and right optical imaging
PMF Axis Alignment Mode0°/45°/90° or user-defined angle
Working ModeAutomatic; manual
Splicing Program12 sets of factory preset programs; customizable
Operating System/CPULinux/64-bit, 1.5G quad-core processor
Memory4G DDR
LanguageSimplified Chinese; multilingual options
Data InterfaceUSB 2 ports; wireless; WiFi; Bluetooth 5.0
Storage Capacity32G; expandable via USB storage
Storage Environment-25°C to +50°C; humidity: 0%-95% (non-condensing)
Power Supply12V, 6A external power supply
Built-in BatteryOptional 18000mAh 12.8V lithium battery
Dimensions L×W×H(mm)295×140×135
Main Unit Weight (kg)4.1 (excluding battery)

Applications

1. Splicing standard optical fibers 2. Splicing polarization-maintaining fibers 3. Fiber end-face observation and quality control

Key Features

1. Low-loss splicing with adjustable high-precision mode 2. PMF end-face imaging for enhanced observation 3. Fully digital imaging system for precise alignment 4. AI touch-screen operation for one-click splicing 5. Ultra-high splicing quality 6. All-in-one design with long-term warranty

Datasheet

Product Datasheet
PDF
Download
