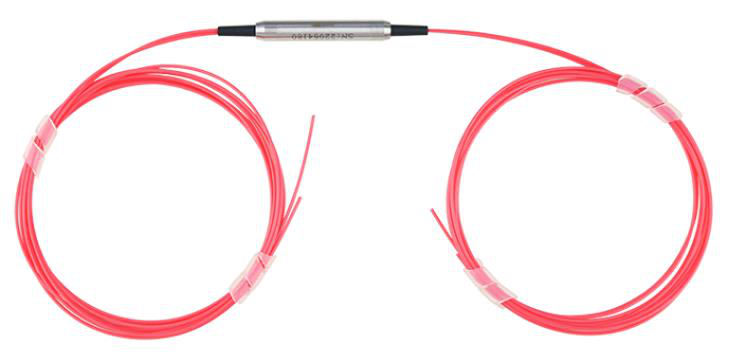

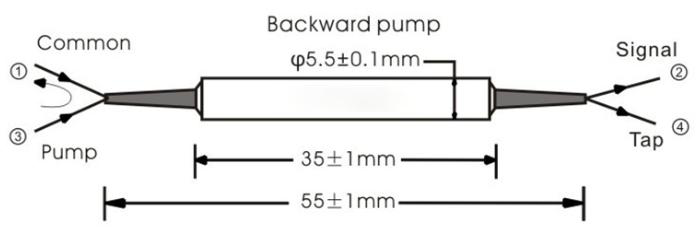

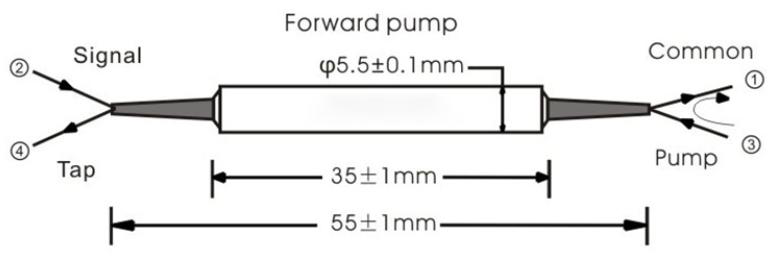

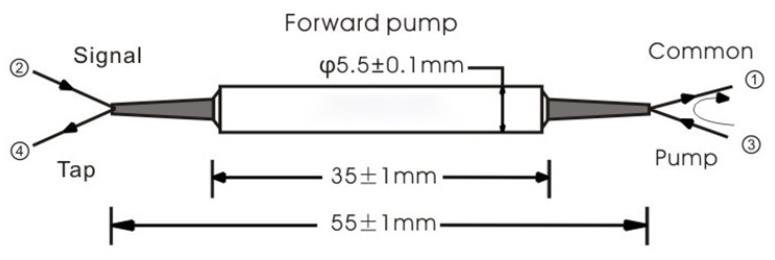

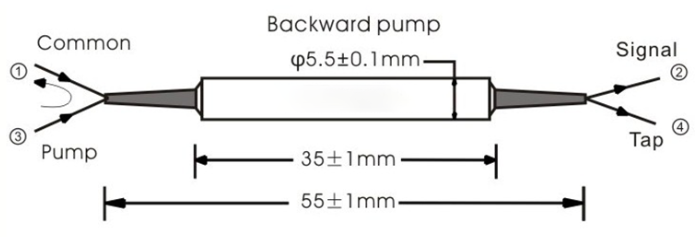

Fiber Optic Hybrid Functional Component

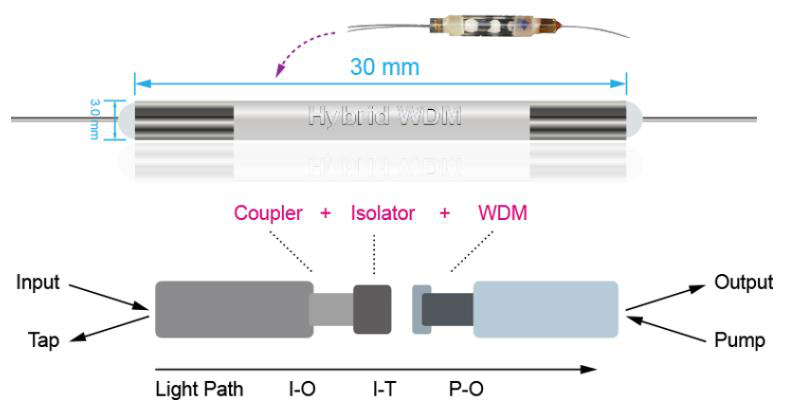

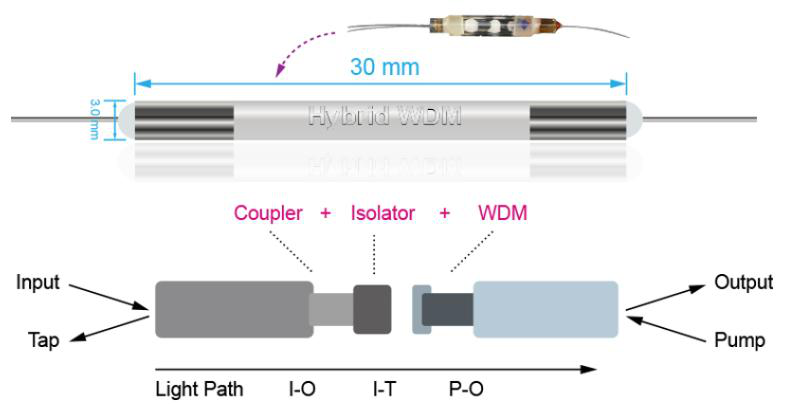

The fiber optic hybrid functional component integrates a wavelength division multiplexer, splitter, and isolator into a single device, providing signal multiplexing and isolation functionalities simultaneously. It is compact, cost-effective, and space-saving, making it suitable for fiber lasers, fiber amplifiers, and optical communication systems.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Signal Wavelength Range (nm) Single Channel | 1030±5, 1064±5, 1550±20, 1950/2000/2050±20nm |
| Pump Wavelength Range (nm) Single Channel | 960~990, 1530~1590nm |
| Signal Isolation (dB) Single Channel | 30, 32, 31dB |
| Signal Insertion Loss Max (dB) | 3.8, 2.5, 1.8, 2.1dB |
| WDM Isolation (dB) Signal Channel | 25dB |
| WDM Isolation (dB) Pump Channel | 12dB |
| Insertion Loss (dB) Pump to Common | ≤0.7, ≤0.6, ≤1.0dB |
| Tap Ratio | 1~50可选 |
| Polarization Dependent Loss (dB) SM Fiber Only | 0.1dB |
| Extinction Ratio (dB) PM Fiber Only | ≥20dB |
| Return Loss (dB) | 55dB |
| Working Axis | 单轴工作或双轴工作 |
| Max Optical Power CW (mW) | 50, 300, 300mW~20W可选 |
| Peak Power (kW) | ≤1ns, ≤10ns |
| Tensile Strength (N) | 5N |
| Operating Temperature (°C) | -5~+70°C |
| Storage Temperature (°C) | -40~+85°C |
