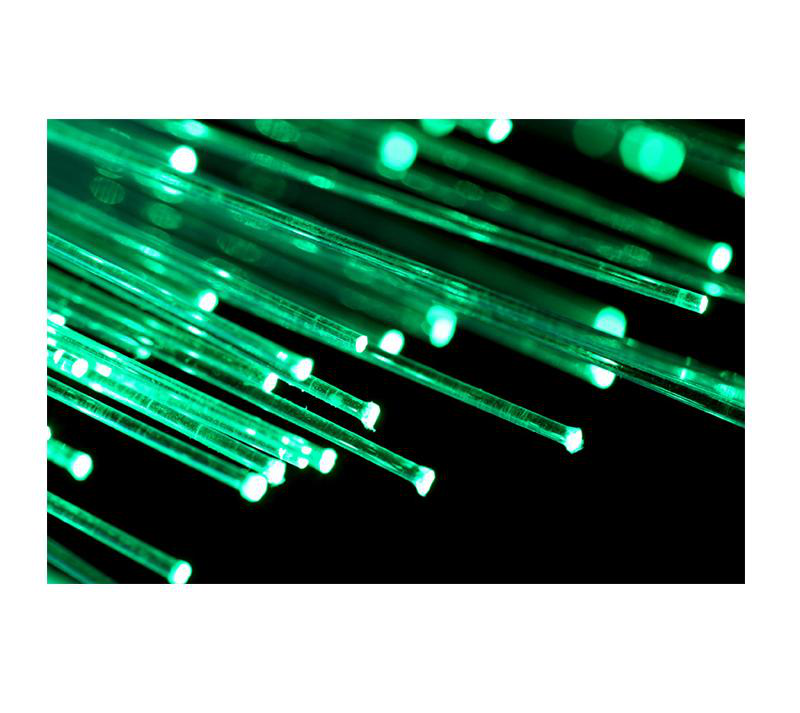

PMMA Plastic Optical Fiber
PMMA plastic optical fiber uses high-purity polymethyl methacrylate (PMMA) as the core material, offering excellent optical transparency and flexibility. It is lightweight, easy to bend and install, and suitable for short-distance optical transmission. Compared to traditional quartz optical fibers, PMMA optical fibers are cost-effective and can be processed into various shapes, making them ideal for decorative applications. They exhibit good weather resistance and chemical stability, ensuring stable optical transmission under various conditions. Additionally, they provide excellent electrical insulation and signal transmission capabilities.
Specification Snapshot
Diameter (μm) POF250
0.25
Diameter (μm) POF500
0.5
Diameter (μm) POF750
0.75
Diameter (μm) POF1000
1.0
Diameter (μm) POF1500
1.5
Diameter (μm) POF2000
2.0
Request a Quote
Download Datasheet
Chat
Overview
PMMA plastic optical fiber uses high-purity polymethyl methacrylate (PMMA) as the core material, offering excellent optical transparency and flexibility. It is lightweight, easy to bend and install, and suitable for short-distance optical transmission. Compared to traditional quartz optical fibers, PMMA optical fibers are cost-effective and can be processed into various shapes, making them ideal for decorative applications. They exhibit good weather resistance and chemical stability, ensuring stable optical transmission under various conditions. Additionally, they provide excellent electrical insulation and signal transmission capabilities.
Specifications
| Parameter | Value |
|---|---|
| Fiber Model POF250 | POF250 |
| Fiber Model POF500 | POF500 |
| Fiber Model POF750 | POF750 |
| Fiber Model POF1000 | POF1000 |
| Fiber Model POF1500 | POF1500 |
| Fiber Model POF2000 | POF2000 |
| Fiber Model POF2500 | POF2500 |
| Fiber Model POF3000 | POF3000 |
| Diameter (μm) POF250 | 0.25 |
| Diameter (μm) POF500 | 0.5 |
| Diameter (μm) POF750 | 0.75 |
| Diameter (μm) POF1000 | 1.0 |
| Diameter (μm) POF1500 | 1.5 |
| Diameter (μm) POF2000 | 2.0 |
| Diameter (μm) POF2500 | 2.5 |
| Diameter (μm) POF3000 | 3.0 |

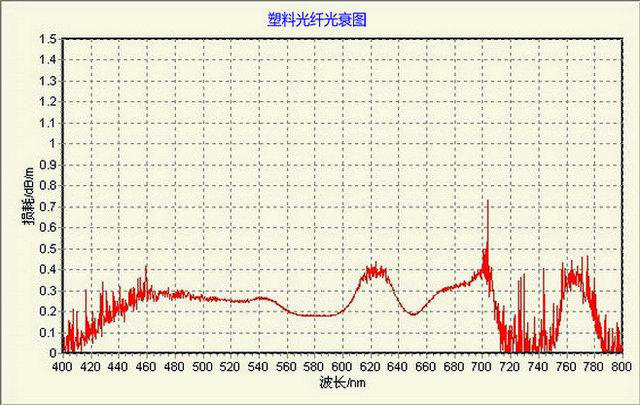

| Attenuation (dB/m) | <0.25 |
| Numerical Aperture NA | 0.5 |
| Reel Length (km) POF250 | 12000 |
| Reel Length (km) POF500 | 6000 |
| Reel Length (km) POF750 | 2700 |
| Reel Length (km) POF1000 | 1500 |
| Reel Length (km) POF1500 | 700 |
| Reel Length (km) POF2000 | 350 |
| Reel Length (km) POF2500 | 200 |
| Reel Length (km) POF3000 | 150 |
| Color | Transparent |
| Operating Temperature (°C) | -40~+75 |
Applications
1. Laser applications 2. Electronic products 3. Mechanical equipment 4. Toys 5. Industrial products 6. Medical devices 7. Lighting
Key Features
1. Low optical attenuation, enabling longer transmission distances 2. High flexibility, allowing small bending radii 3. Suitable for various applications, including decoration 4. Resistant to aging and durable 5. Excellent electrical insulation properties 6. Available in various diameters 7. Can be used for lighting and signal transmission
Datasheet
Product Datasheet
PDF
