Polarization Maintaining Telecommunication Fibers

Polarization Maintaining Telecommunication Fibers

Supplier
Fibretop
Part Number
Polarization Maintaining Telecommunication Fibers
Category
Fiber Optics
Origin
China

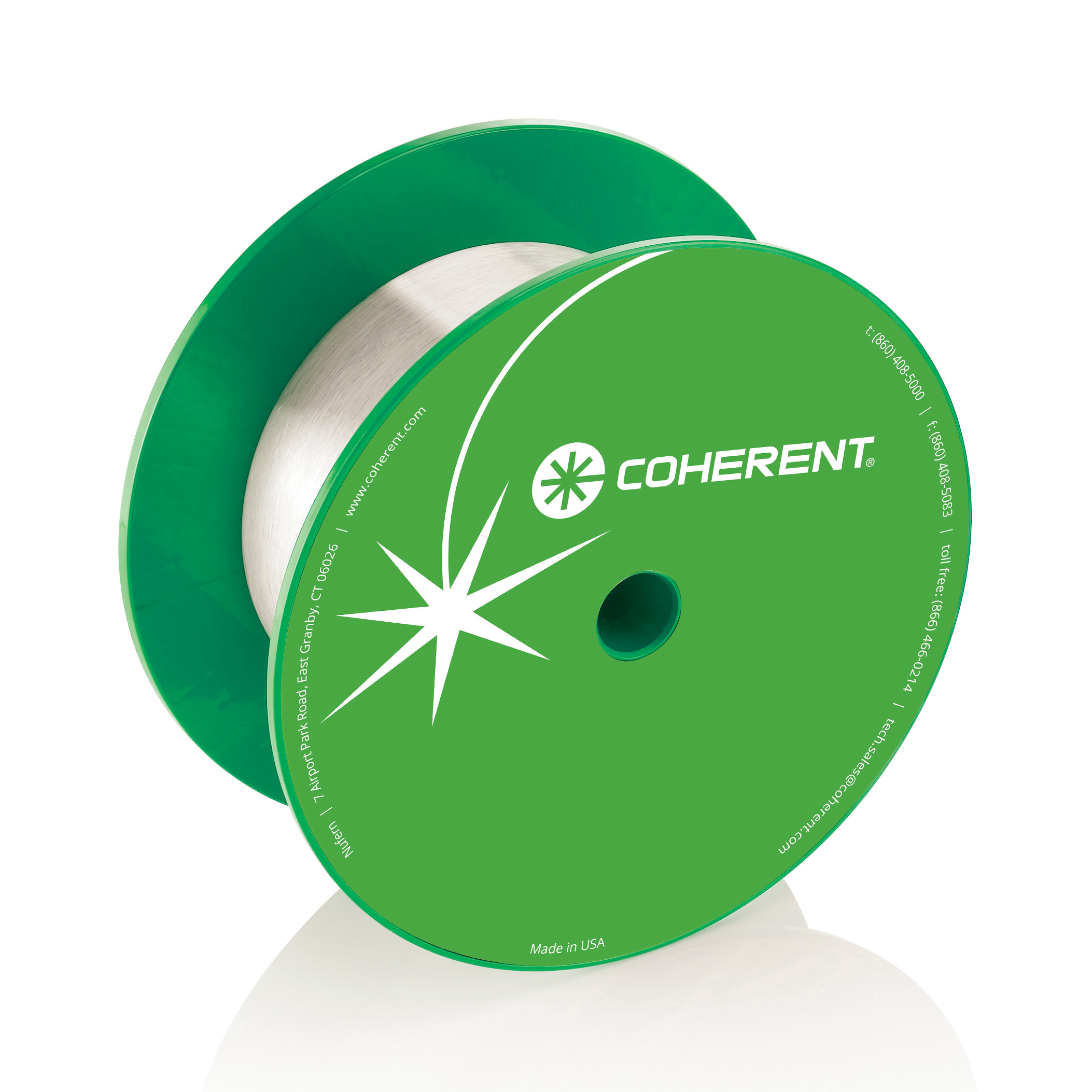

Coherent's Polarization Maintaining Telecommunication Fibers are designed for advanced networks, optimized for specific wavelengths (980 nm, 1300 nm, and 1550 nm). These fibers are used in PM applications for data and telecom, offering tight optical, mechanical, and geometrical tolerances.

Specification Snapshot
Cutoff PM980-XP
≤950nm
Cutoff PM980B-XP
≤950nm
Cutoff PM980-400
≤950nm
Cutoff PM980B-400
≤950nm
Cutoff PM1300-XP
≤1260nm
Cutoff PM1300B-XP
≤1260nm
Request a Quote Download Datasheet Chat
Save to Favorites Save to Favorites

Overview

Coherent's Polarization Maintaining Telecommunication Fibers are designed for advanced networks, optimized for specific wavelengths (980 nm, 1300 nm, and 1550 nm). These fibers are used in PM applications for data and telecom, offering tight optical, mechanical, and geometrical tolerances.

Specifications

ParameterValue
Operating Wavelength PM980-XP970–1550nm
Operating Wavelength PM980B-XP970–1550nm
Operating Wavelength PM980-400970–1550nm
Operating Wavelength PM980B-400970–1550nm
Operating Wavelength PM1300-XP1270–1625nm
Operating Wavelength PM1300B-XP1270–1625nm
Operating Wavelength PM1300-4001270–1625nm
Operating Wavelength PM1300B-4001270–1625nm
Operating Wavelength PM1550-XP1440–1625nm
Operating Wavelength PM1550B-XP1440–1625nm
Operating Wavelength PM1550-4001440–1625nm
Operating Wavelength PM1550B-4001440–1625nm
Core NA PM980-XP0.120
Core NA PM980B-XP0.120
Core NA PM980-4000.120
Core NA PM980B-4000.120
Core NA PM1300-XP0.13
Core NA PM1300B-XP0.13
Core NA PM1300-4000.13
Core NA PM1300B-4000.13
Core NA PM1550-XP0.125
Core NA PM1550B-XP0.125
Core NA PM1550-4000.125
Core NA PM1550B-4000.125
Mode Field Diameter PM980-XP6.6±0.5μm@980nm
Mode Field Diameter PM980B-XP6.6±0.5μm@980nm
Mode Field Diameter PM980-4006.6±0.5μm@980nm
Mode Field Diameter PM980B-4006.6±0.5μm@980nm
Mode Field Diameter PM1300-XP9.3±0.5μm@1300nm
Mode Field Diameter PM1300B-XP9.3±0.5μm@1300nm
Mode Field Diameter PM1300-4009.3±0.5μm@1300nm
Mode Field Diameter PM1300B-4009.3±0.5μm@1300nm
Mode Field Diameter PM1550-XP10.1±0.5μm@1550nm
Mode Field Diameter PM1550B-XP10.1±0.5μm@1550nm
Mode Field Diameter PM1550-40010.1±0.5μm@1550nm
Mode Field Diameter PM1550B-40010.1±0.5μm@1550nm
Maximum Bend Loss PM980-XP≤2.5dB/km@980nm
Maximum Bend Loss PM980B-XP≤2.5dB/km@980nm
Maximum Bend Loss PM980-400≤2.5dB/km@980nm
Maximum Bend Loss PM980B-400≤2.5dB/km@980nm
Maximum Bend Loss PM1300-XP≤1.0dB/km@1300nm
Maximum Bend Loss PM1300B-XP≤1.0dB/km@1300nm
Maximum Bend Loss PM1300-400≤1.0dB/km@1300nm
Maximum Bend Loss PM1300B-400≤1.0dB/km@1300nm
Maximum Bend Loss PM1550-XP≤1.0dB/km@1550nm
Maximum Bend Loss PM1550B-XP≤0.5dB/km@1550nm
Maximum Bend Loss PM1550-400≤1.0dB/km@1550nm
Maximum Bend Loss PM1550B-400≤0.5dB/km@1550nm
Cutoff PM980-XP≤950nm
Cutoff PM980B-XP≤950nm
Cutoff PM980-400≤950nm
Cutoff PM980B-400≤950nm
Cutoff PM1300-XP≤1260nm
Cutoff PM1300B-XP≤1260nm
Cutoff PM1300-400≤1260nm
Cutoff PM1300B-400≤1260nm
Cutoff PM1550-XP≤1550nm
Cutoff PM1550B-XP≤1550nm
Cutoff PM1550-400≤1550nm
Cutoff PM1550B-400≤1550nm
Core Diameter PM980-XP5.5μm
Core Diameter PM980B-XP5.5μm
Core Diameter PM980-4005.5μm
Core Diameter PM980B-4005.5μm
Core Diameter PM1300-XP8.0μm
Core Diameter PM1300B-XP8.0μm
Core Diameter PM1300-4008.0μm
Core Diameter PM1300B-4008.0μm
Core Diameter PM1550-XP8.5μm
Core Diameter PM1550B-XP8.5μm
Core Diameter PM1550-4008.5μm
Core Diameter PM1550B-4008.5μm
Cladding Diameter125.0±1.0μm
Coating Diameter PM980-XP245.0±15.0μm
Coating Diameter PM980B-XP245.0±15.0μm
Coating Diameter PM980-400400.0±15.0μm
Coating Diameter PM980B-400400.0±15.0μm
Coating Diameter PM1300-XP245.0±15.0μm
Coating Diameter PM1300B-XP245.0±15.0μm
Coating Diameter PM1300-400400.0±15.0μm
Coating Diameter PM1300B-400400.0±15.0μm
Coating Diameter PM1550-XP245.0±15.0μm
Coating Diameter PM1550B-XP245.0±15.0μm
Coating Diameter PM1550-400400.0±15.0μm
Coating Diameter PM1550B-400400.0±15.0μm
Coating Concentricity≤5.0μm
Core/Clad Offset≤0.5μm
Coating MaterialAcrylate
Operating Temperature Range-40 to 85°C
Proof Test Level≥200kpsi(1.4GN/m²)

Applications

1. Pump and source pigtails 2. PM patchcords 3. Polarization sensitive devices

Key Features

1. Tight specifications for high product yield 2. High fatigue failure resistance for longer service life 3. Bend insensitive for tight geometries 4. All fiber proof tested to ≥200kpsi for long-term reliability
