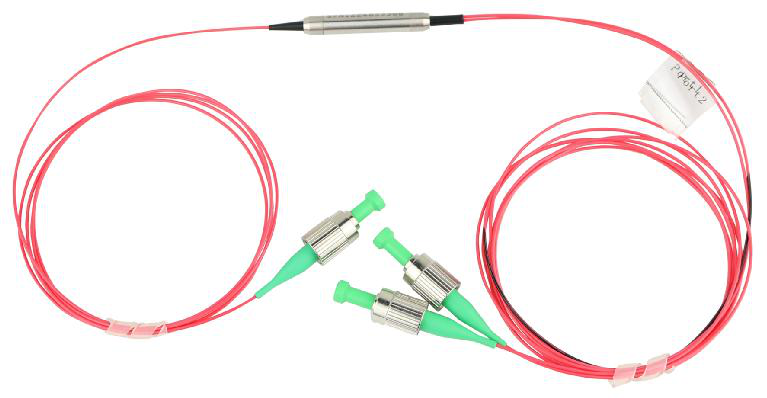

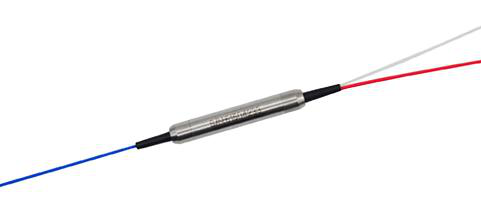

780~2050nm Polarization Beam Splitter/Combiner (PBS/PBC)

780~2050nm Polarization Beam Splitter/Combiner (PBS/PBC)

Supplier
Fibretop
Part Number
780~2050nm Polarization Beam Splitter/Combiner (PBS/PBC)
Category
Fiber Optics
Origin
China

The polarization beam splitter/combiner (PBS/PBC) is used to combine two orthogonal polarized light beams into one fiber or split the orthogonal polarized light in one fiber into two fibers. It can also be used to split the orthogonal polarized light from the input fiber into one single-mode output fiber, suitable for applications such as pump lasers to improve the extinction ratio of high-power fiber lasers.

Specification Snapshot
Insertion Loss (dB) P
≤0.6
Insertion Loss (dB) A
≤0.8
Directivity Min. (dB)
≥50
Return Loss Min. (dB)
≥50
Maximum Power (W)
≤0.7
Package Dimensions
φ5.5×35mm
Request a Quote Download Datasheet Chat
Save to Favorites Save to Favorites

Overview

The polarization beam splitter/combiner (PBS/PBC) is used to combine two orthogonal polarized light beams into one fiber or split the orthogonal polarized light in one fiber into two fibers. It can also be used to split the orthogonal polarized light from the input fiber into one single-mode output fiber, suitable for applications such as pump lasers to improve the extinction ratio of high-power fiber lasers.

Specifications

ParameterValue
Center Wavelength (nm) P2050,2000,1950,1550,1480,1310
Center Wavelength (nm) A1064,1030,980,850,808,780
Operating Bandwidth (nm) P±40
Operating Bandwidth (nm) A±20
Insertion Loss (dB) P≤0.6
Insertion Loss (dB) A≤0.8
Maximum Polarization Extinction Ratio (dB) P≥23
Maximum Polarization Extinction Ratio (dB) A≥20
Extinction Ratio Min. (dB) P≥20
Extinction Ratio Min. (dB) A≥18
Directivity Min. (dB)≥50
Return Loss Min. (dB)≥50
Power Handling (mW)≤300
Maximum Power (W)≤0.7
Fiber TypePM Panda fiber (Port 1 & Port 2), SM fiber or PM Panda fiber (Port 3)
Operating Temperature (°C)-5~+70
Storage Temperature (°C)-40~+85
Package Dimensionsφ5.5×35mm
Fiber Jacket Type0.9mm loose tube
Fiber Length0.8m,1m
Connector TypeFC/UPC, FC/APC, SC/UPC, SC/APC

Applications

1. Fiber laser systems 2. Fiber amplifiers 3. Optical communication 4. Fiber sensors 5. Fiber optics

Key Features

1. High extinction ratio 2. High stability 3. High reliability 4. Low insertion loss 5. Low return loss

Datasheet

Product Datasheet
PDF
Download
