FC Expansion Connector

FC Expansion Connector

Supplier
Fibretop
Part Number
FC Expansion Connector
Category
Fiber Optics
Origin
China

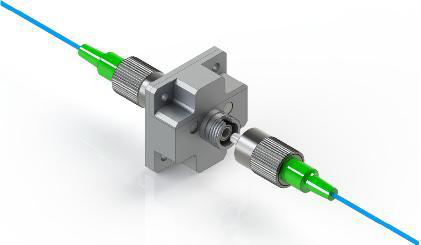

The FC expansion connector from Fibertop Optoelectronics adopts advanced micro-precision alignment technology. Through unique expansion technology, the light output can achieve precise alignment in both direction and beam diameter, ensuring excellent performance. This connector can be used to connect FC end caps for real-time observation and adjustment, significantly improving application flexibility. Additionally, it eliminates the need for adhesive, allowing for direct optical fiber end-face processing with end-cap technology, which enhances the connector's durability and resistance to damage.

Specification Snapshot
Insertion Loss
<0.5dB (typical value 0.3)
Extinction Ratio
≥25dB
Return Loss
≥50dB
Request a Quote Download Datasheet Chat
Save to Favorites Save to Favorites

Overview

The FC expansion connector from Fibertop Optoelectronics adopts advanced micro-precision alignment technology. Through unique expansion technology, the light output can achieve precise alignment in both direction and beam diameter, ensuring excellent performance. This connector can be used to connect FC end caps for real-time observation and adjustment, significantly improving application flexibility. Additionally, it eliminates the need for adhesive, allowing for direct optical fiber end-face processing with end-cap technology, which enhances the connector's durability and resistance to damage.

Specifications

ParameterValue
Operating Wavelength780,795,850,980,1060,1310,1550nm
Insertion Loss<0.5dB (typical value 0.3)
Extinction Ratio≥25dB
Return Loss≥50dB
Maximum Laser Power500mW (high-power available)
Fiber TypeSingle-mode, polarization-maintaining, photonic crystal fiber
Fiber Tensile Strength5N
Operating Temperature-40~+70°C
Storage Temperature-55~+85°C

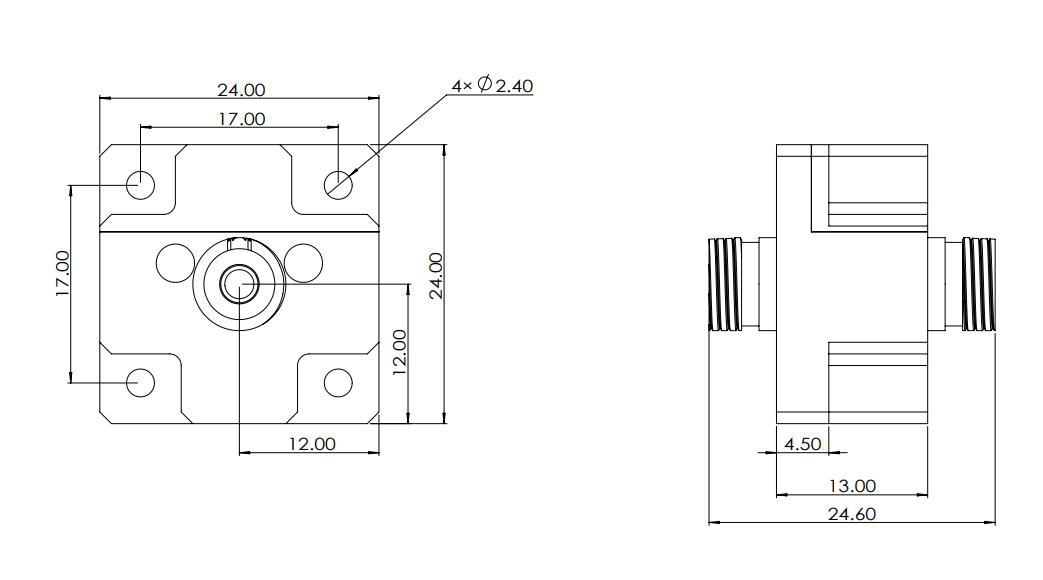

Dimensions24×24×24mm

Applications

1. Optical fiber communication systems 2. High-power laser systems 3. Precision optical measurement systems

Key Features

1. Non-contact, no end-face damage, long lifespan 2. High precision, strong resistance to damage, excellent optical performance 3. High power resistance, optical fiber end-face can act as end-cap and undergo film processing
