Manual Fiber Polarization Controller (MFPC-56)

Manual Fiber Polarization Controller (MFPC-56)

Supplier
Fibretop
Part Number
Manual Fiber Polarization Controller (MFPC-56)
Category
Fiber Optics
Origin
China

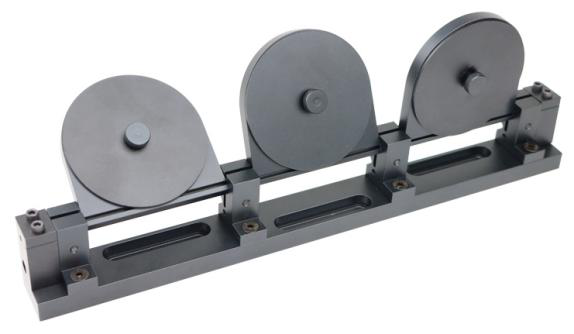

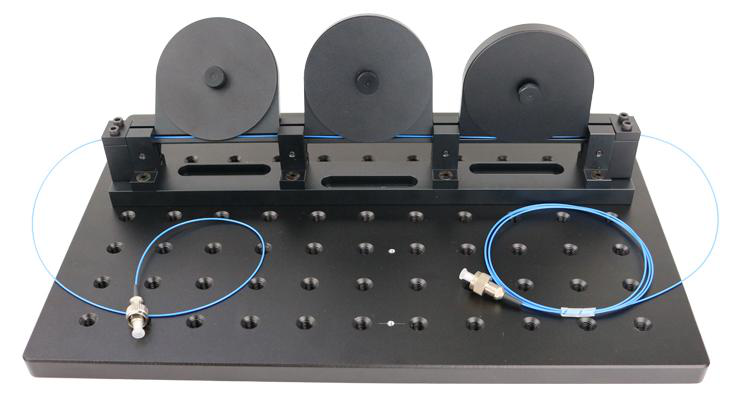

The manual fiber polarization controller utilizes three paddles to produce double refraction in the fiber, forming independent elliptical waves. It changes the polarization state of the transmitted light in the fiber. The device is suitable for various single-mode fibers and can be used in experimental setups requiring precise polarization control.

Specification Snapshot
Cladding Diameter
125±1μm
Coating Diameter
245±15μm, 245±10μm, 242±5μm
Cutoff Wavelength
730±30nm, 920±50nm, <1260nm
Insertion Loss
≤0.1dB
Request a Quote Download Datasheet Chat
Save to Favorites Save to Favorites

Overview

The manual fiber polarization controller utilizes three paddles to produce double refraction in the fiber, forming independent elliptical waves. It changes the polarization state of the transmitted light in the fiber. The device is suitable for various single-mode fibers and can be used in experimental setups requiring precise polarization control.

Specifications

ParameterValue

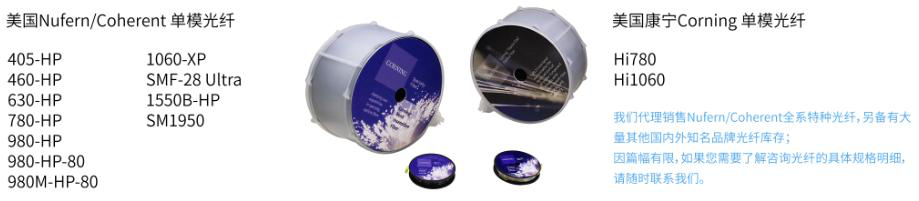

Fiber Patch CableAFC-R-780HP-5, AFC-Q-HI1060-5, UFC-Q-SMF28-5
Operating Wavelength Range780-970nm, 980-1650nm, 1260-1625nm
Design Wavelength780nm and 850nm, 980nm and 1064nm, 1310nm and 1550nm
Mode Field Diameter5.0±0.5μm@850nm, 5.9±0.3μm@980nm, 9.2±0.4μm@1310nm
Cladding Diameter125±1μm
Coating Diameter245±15μm, 245±10μm, 242±5μm
Cutoff Wavelength730±30nm, 920±50nm, <1260nm
Fiber Lead Length180cm, 145cm
Insertion Loss≤0.1dB
Fiber Jacketφ900μm Hytrel Tubing, φ900μm Tight Buffer
Loop Diameter56mm
Loop Configuration2 Loops - 4 Loops, 3 Loops - 6 Loops
Total Fiber Length5m±7cm

Applications

1. Laboratory optical experiments 2. Fiber optic communication systems 3. Polarization state adjustment in optical networks

Key Features

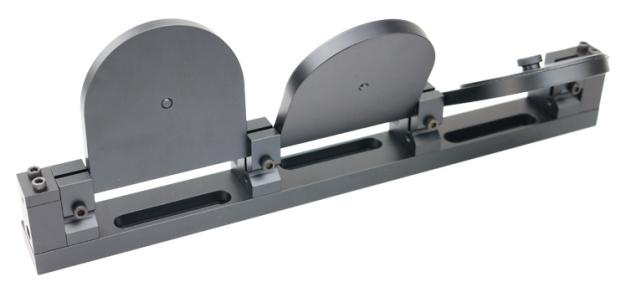

1. 56mm fiber loop diameter 2. Three paddles for independent elliptical wave generation 3. ±117.5° paddle rotation 4. Compatible with φ900μm FC/PC or FC/APC fibers 5. Easy replacement of fibers
