Inline Polarizer

Inline Polarizer

Supplier
Fibretop
Part Number
Inline Polarizer
Category
Fiber Optics
Origin
China

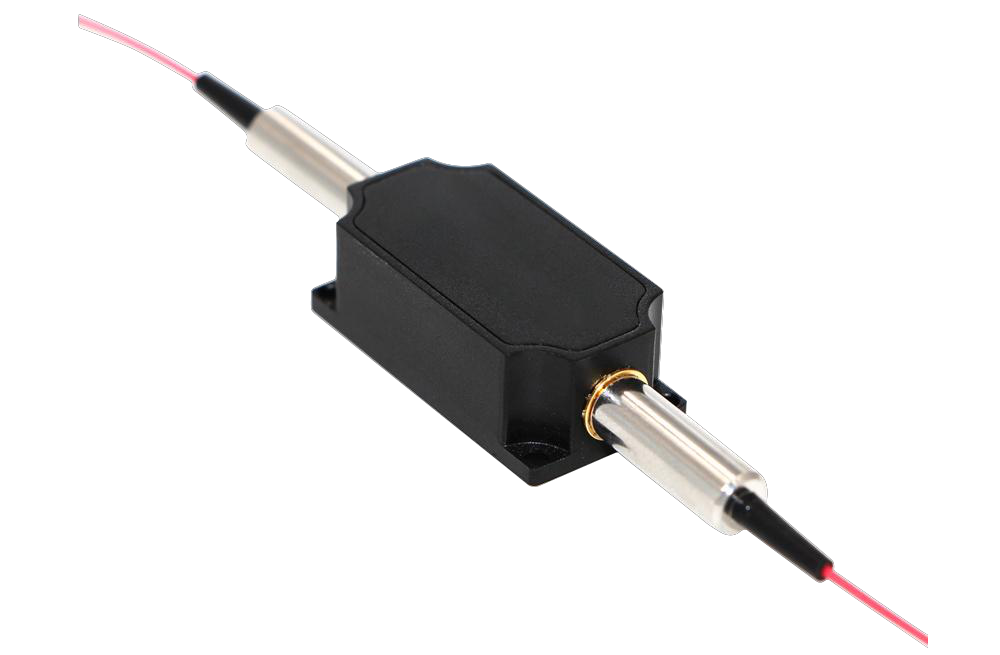

The inline polarizer is a key optical passive component used in optical systems to adjust polarization characteristics. It features high extinction ratio and high light ratio, making it suitable for applications such as polarization analysis, signal modulation, and optical fiber communication systems.

Specification Snapshot
Center Wavelength (nm) 460
460
Center Wavelength (nm) 630
630
Insertion Loss (dB) 460
≤1.8
Insertion Loss (dB) 630
≤1.5
Return Loss (dB) 460
≥50
Return Loss (dB) 630
≥50
Request a Quote Download Datasheet Chat
Save to Favorites Save to Favorites

Overview

The inline polarizer is a key optical passive component used in optical systems to adjust polarization characteristics. It features high extinction ratio and high light ratio, making it suitable for applications such as polarization analysis, signal modulation, and optical fiber communication systems.

Specifications

ParameterValue
Center Wavelength (nm) 460460
Center Wavelength (nm) 630630
Operating Wavelength Range (nm) 460±5
Operating Wavelength Range (nm) 630±5
Insertion Loss (dB) 460≤1.8
Insertion Loss (dB) 630≤1.5
Return Loss (dB) 460≥50
Return Loss (dB) 630≥50
Extinction Ratio (dB) 460≥18
Extinction Ratio (dB) 630≥20
Fiber Type 460PM460-HP
Fiber Type 630PM630-HP
Maximum Optical Power (mW)100
Operating Temperature (°C)5~70
Storage Temperature (°C)-40~85

Applications

1. Optical fiber research 2. Optical fiber sensors 3. Measurement instruments

Key Features

1. Low insertion loss 2. High extinction ratio 3. High light ratio 4. Stable performance and reliability

Datasheet

Product Datasheet
PDF
Download
