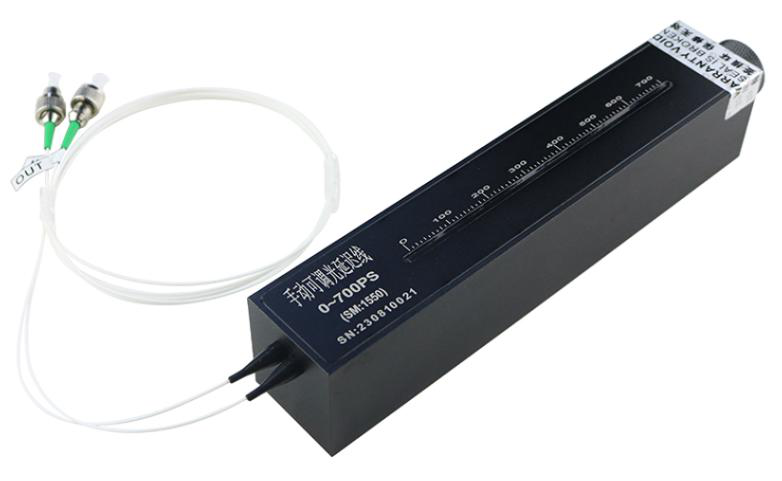

Manual Adjustable Optical Delay Line

Manual Adjustable Optical Delay Line

Supplier
Fibretop
Part Number
Manual Adjustable Optical Delay Line
Category
Fiber Optics
Origin
China

The optical delay module is a functional device with optical path delay adjustment. It features high operating frequency, wide bandwidth, low loss, simple structure, easy multi-position adjustment, strong electromagnetic interference resistance, good stability, lightweight, and high cost performance. It is widely used in military, defense, and other important fields.

Specification Snapshot
Calibration Wavelength (nm)
1310~1550
Return Loss (dB)
55
Extinction Ratio (dB)
18
Request a Quote Download Datasheet Chat
Save to Favorites Save to Favorites

Overview

The optical delay module is a functional device with optical path delay adjustment. It features high operating frequency, wide bandwidth, low loss, simple structure, easy multi-position adjustment, strong electromagnetic interference resistance, good stability, lightweight, and high cost performance. It is widely used in military, defense, and other important fields.

Specifications

ParameterValue
Operating Wavelength (nm)850, 980, 1060, 1260~1650, 1310~1550, customizable
Calibration Wavelength (nm)1310~1550
Delay Range (ps)0~100, 0~330, 0~700, 0~1500
Resolution (fs)1
Insertion Loss (dB)0.8 (typical), 1.2 (maximum), (0~1500ps module ≤1.4dB)

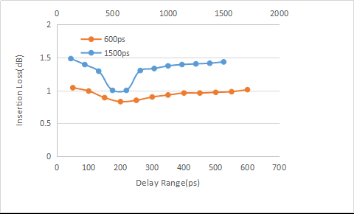

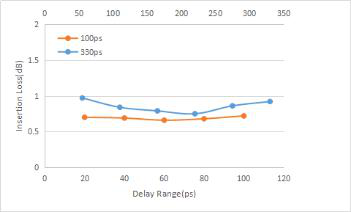

Insertion Loss Variation (dB)±0.25 (corresponding to 0~100ps module), ±0.35 (corresponding to 0~330ps module), ±0.55 (corresponding to 0~700ps module), ±1.5 (corresponding to 0~1500ps module)
Return Loss (dB)55
Extinction Ratio (dB)18
Transmission Optical Power500mW (typical), customizable 5W/10W/15W/20W/30W
Operating Temperature (°C)0~+50
Storage Temperature (°C)-40~+65
Fiber TypeCorning SMF-28e, or Fujikura PM Panda Fiber
Dimensions L×W×H (mm)72.53×32×35.5 (corresponding to 0~100ps module), 105×32×35.5 (corresponding to 0~330ps module), 167.54×32×35.5 (corresponding to 0~700ps module), 169×46×35.5 (corresponding to 0~1500ps module)

Applications

1. Radar testing and calibration 2. Phase array systems 3. Optical coherence tomography and X-ray imaging 4. Optical delay measurement 5. Optical fiber sensing 6. Optical signal distribution systems 7. Optical communication systems

Key Features

1. Unique mechanical delay adjustment device 2. Continuous and stable operation 3. Wide delay range 4. High adjustment accuracy 5. Excellent stability 6. Low insertion loss (<0.1dB) 7. Simple and compact design

Datasheet

Product Datasheet
PDF
Download
