MY611 High-Speed Inline Polarization Analyzer

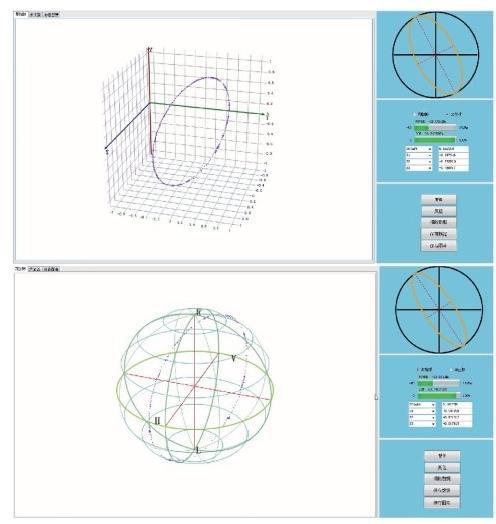

MY611 is designed for high-speed polarization analysis and testing. It utilizes four channels to obtain Stokes parameters and measures the input light's state of polarization (SOP) and degree of polarization (DOP). With a sampling rate of up to 10k/s, MY611 is equipped with a heating platform for polarization stability testing. It can analyze polarization extinction ratio (PER) and display real-time results on the Poincare sphere.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range | 1480~1620nm |
| SOP Accuracy | 0.25 |
| DOP Accuracy | 2 |
| DOP Range | 0~40 |
| PER Measurement Range | 0~40dB |
| Fixed Connector | APC:55, PC:45 |
| Insertion Loss | 1.5 (max) |
| Polarization Sampling Accuracy | 0.3 |
| Input Optical Power Range | -40~+10 |
| Sampling Rate | 10k/s |
| Chassis Dimensions | 235×104×300 |
