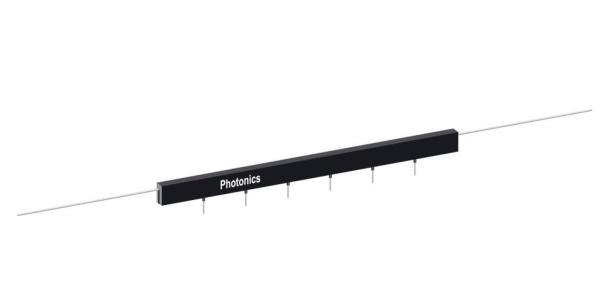

Electric Polarization Controller

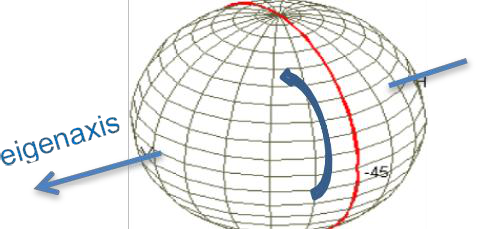

The MY all-fiber electric polarization controller (SOP controller) utilizes three variable all-fiber wave plates to provide full coverage of the Poincaré sphere, enabling any input SOP to be converted to any desired output SOP. Designed to allow continuous changes in SOP, this device can be used for polarization control, regardless of feedback circuits or open-loop configurations.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength (nm) | 1300~1610 |
| Insertion Loss (dB) | <0.8 |
| Polarization Mode Dispersion (PMD) (ps) | <0.15 |
| Return Loss (dB) | ≥70 |
| Extinction Ratio (dB) | ≥70 |
| Driving Voltage (V) | <10 |
| Scanning Range (deg./s) | 360 |
| Operating Temperature (°C) | -5~70 |
| Storage Temperature (°C) | -40~85 |
| Fiber Type | SMF28 |
| Input Fiber Cladding Diameter (nm) | 1000 |
Applications
Key Features
Datasheet
