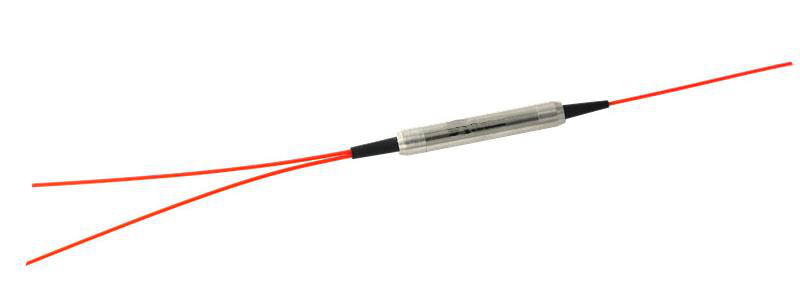

1471~1611nm CWDM

1471~1611nm CWDM

Supplier
Fibretop
Part Number
1471~1611nm CWDM
Category
Fiber Optic Couplers
Origin
China

CWDM is a device based on coarse wavelength division multiplexing technology, designed for urban network access layers. It is widely used in optical communication systems for urban networks and metropolitan areas, transmitting different wavelength signals into single-mode optical fibers. This product adopts advanced thin-film filter technology or optical matrix wavelength division multiplexing technology, featuring low insertion loss, high channel isolation, and excellent temperature stability.

Specification Snapshot
Insertion Loss (23°C, All SOP) (dB)
≤0.3
Reflection Band Insertion Loss (23°C, All SOP) (dB)
≤0.5
Return Loss (dB)
≥50
Directivity (dB)
≥50
Request a Quote Download Datasheet Chat
Save to Favorites Save to Favorites

Overview

CWDM is a device based on coarse wavelength division multiplexing technology, designed for urban network access layers. It is widely used in optical communication systems for urban networks and metropolitan areas, transmitting different wavelength signals into single-mode optical fibers. This product adopts advanced thin-film filter technology or optical matrix wavelength division multiplexing technology, featuring low insertion loss, high channel isolation, and excellent temperature stability.

Specifications

ParameterValue
Operating Wavelength (nm)1471,1491,1511,1531,1551,1571,1591,1611
Central Wavelength Accuracy (dB)±0.5
Bandwidth @-0.5dB (nm)≥13
Isolation (23°C, All SOP) Adjacent (dB)≥30
Isolation (23°C, All SOP) Non-adjacent (dB)≥45
Insertion Loss (23°C, All SOP) (dB)≤0.3
Flatness (dB)≤0.3
Reflection Band Insertion Loss (23°C, All SOP) (dB)≤0.5
Reflection Band Isolation (23°C, All SOP) (dB)≥15
Polarization Dependent Loss PDL (dB)≤0.1
Polarization Mode Dispersion PMD (ps)≤0.1
Return Loss (dB)≥50
Directivity (dB)≥50
Maximum Optical Power (mW)≤300
Package Dimensions (mm)φ5.5xL35
Operating Temperature (°C)-5~+70
Storage Temperature (°C)-40~+85

Applications

1. Wavelength division systems 2. Optical amplifiers 3. Optical communication

Key Features

1. Low insertion loss 2. High channel isolation 3. High stability and reliability

Datasheet

Product Datasheet
PDF
Download
