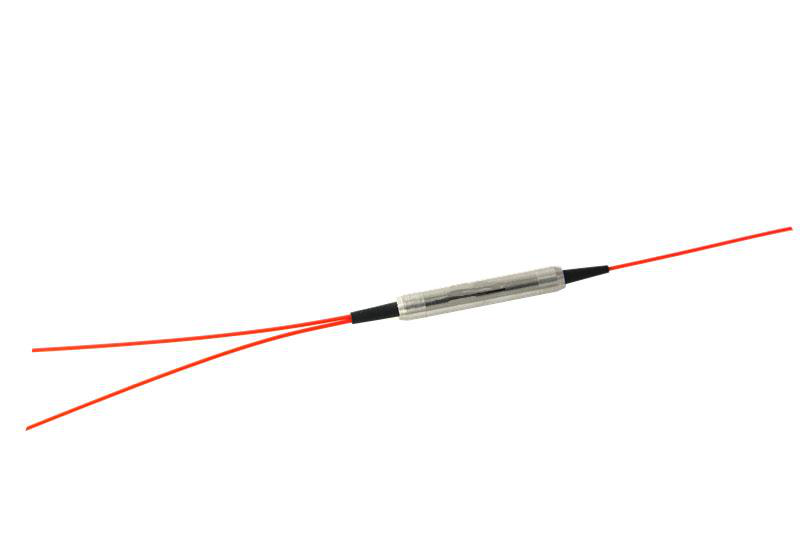

Three-Port Polarization Maintaining Fiber Circulator
The three-port polarization maintaining fiber circulator is a multi-port non-reciprocal optical device. It allows signals to transmit in one direction. When signals enter Port 1, they exit from Port 2, and signals entering Port 2 exit from Port 3. Similarly, signals entering Port 3 exit from Port 1. The device features low insertion loss and high isolation, making it suitable for various applications.
Save to Favorites
Overview

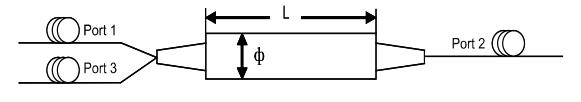

Specifications
| Parameter | Value |
|---|---|
| Wavelength Range (nm) | 1520~1610nm |
| Ports and Working Mode | 3 ports, (Port 1→2, 2→3) |
| Isolation at 23°C (Port 2→1, 2→3) | Peak: 40dB, Typical: 18dB |
| Insertion Loss at 23°C (Port 1→2, 2→3) | Type: ≤1.1dB, Max: ≤1.0dB |
| Extinction Ratio Min (dB) | 20dB |
| Return Loss Min (dB) | 50dB |
| Directivity Min (Port 1→2, 2→3) | 50dB |
| Maximum Optical Power (mW) | 300mW |
| Operating Temperature (°C) | -5~+70°C |
| Storage Temperature (°C) | -40~+85°C |
