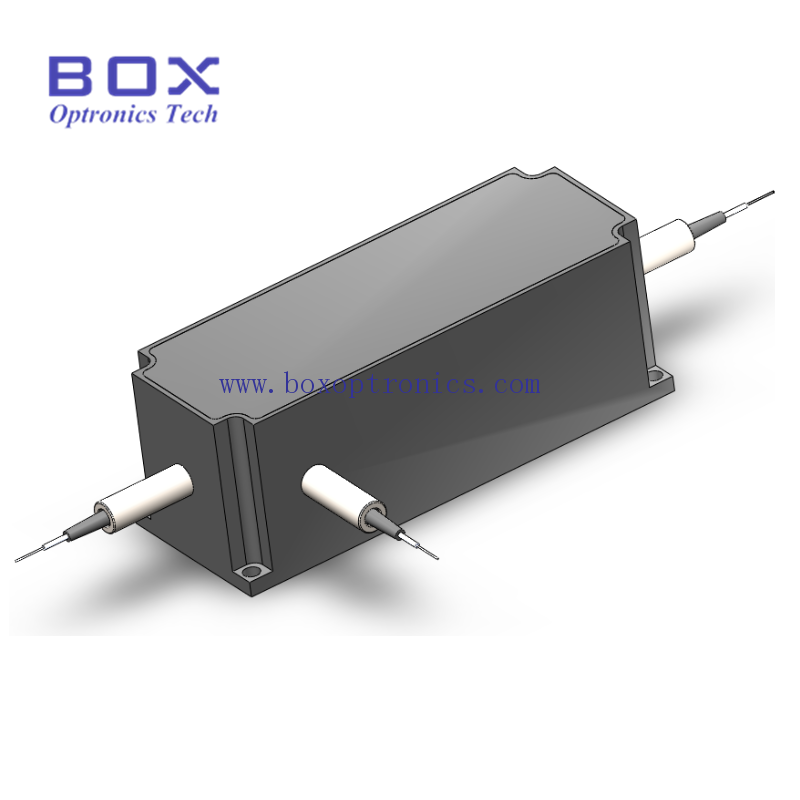

1030nm 20W High power polarization-maintaining PM Circulator
An optical circulator separates optical power traveling in opposite directions within one fiber. This three-port device passes light in one direction, from port 1 to port 2 and then from port 2 to port 3. Circulators reliably increase existing network transmission capacity, and applications are expanding from communications into medicine and imaging, including OCT.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| 中心波长 | 1030 nm |
| 工作波长范围 | ±5 nm |
| 典型峰值隔离度 | 25 dB |
| 最大隔离度 [23℃] | 22 dB |
| 典型插入损耗 [23℃] | 1.3 dB |
| 最大插入损耗 [23℃] | 1.5 dB |
| 最小消光比，仅适用于PM [23℃] | 20 dB |
| 最小回损（输入/输出） | 45 dB |
| 最小串扰 | 45 dB |
| 最大平均光功率 | Total:20 (including port 1 & port 2) |
| ns脉冲的最大峰值功率 | 10 kW |
| 最大拉伸载荷 | 5 N |
| 封装尺寸 | 70 mm × 28 mm × 26 mm |
