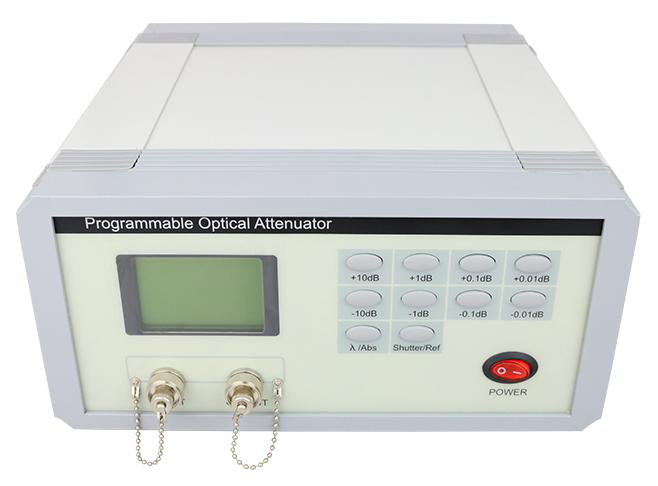

MY5001 Programmable Optical Attenuator
The MY5001 Programmable Optical Attenuator is a new type of instrument that allows users to control optical attenuation freely via a PC or control panel. It adopts a new external circuit design, providing continuous adjustable attenuation from 0 to 65dB within the wavelength range of 1260–1650nm. It is ideal for optical communication systems, equipment development, and testing during the production process.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range (nm) | 1260–1650 |
| Fiber Type | 9/125μm |
| Maximum Attenuation (dB) | 65dB |
| Insertion Loss (dB) | ≤1.5dB |
| Display Resolution (dB) | 0.01dB |
| Attenuation Linearity (dB) | ≤±0.20dB |
| Repeatability (dB) | ≤0.05dB |
| Polarization Dependent Loss (PDL) (dB) | ≤0.20dB |
| Maximum Input Power (dBm) | +27dBm |
| Return Loss (dB) | ≥50dB |
| Optical Interface Type | FC/SC/ST/PC |
| Dimensions (L×W×H) (mm) | 280×260×130W |
| Power Supply | 180–260V, 50/60Hz |
