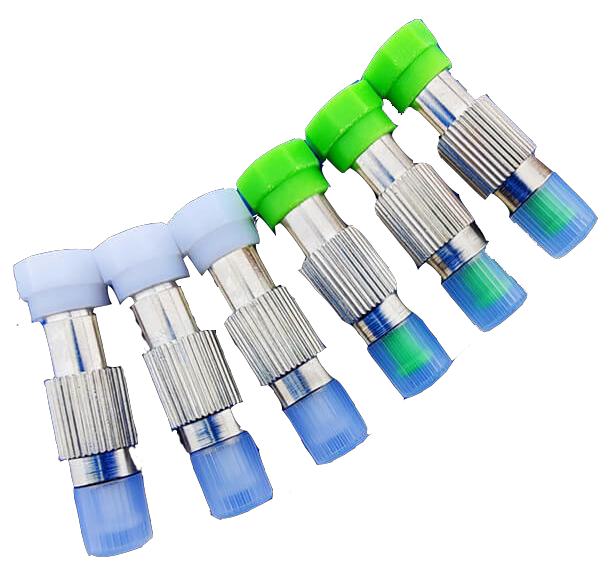

1250–1650nm Fixed Buildout Attenuator
This fixed buildout attenuator is specifically designed for the wavelength range of 1250–1650nm, suitable for optical communication systems. It provides precise optical signal attenuation, ensuring signal transmission quality, reducing reflection and interference. Made of high-quality materials and advanced craftsmanship, it features excellent durability and reliability. With a compact structure and easy installation, it is ideal for various fixed attenuation needs, widely used in telecommunications, data centers, and testing environments.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range (nm) | 1250–1650 |
| Attenuation Value (dB) | 3±0.5, 5±0.5, 10±0.7, 15±0.7, 20±1.0, 25±1.0dB |
| Maximum Power (dB) | 40dB |
| Return Loss (dB) | ≥60dB |
| FC Connection Type | Universal key type (narrow key, wide key) |
| Operating Temperature (°C) | -5~+70°C |
| Storage Temperature (°C) | -40~+85°C |
Applications
Key Features
Datasheet
