Hard Plastic Coated Quartz Fiber

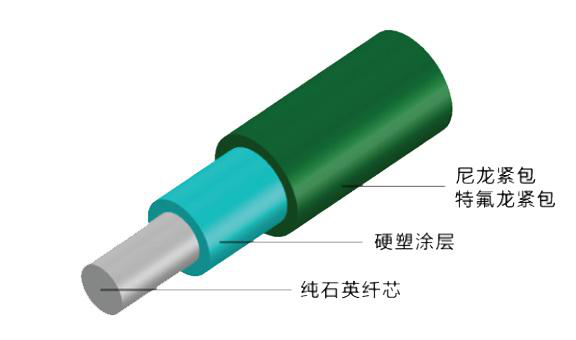

Hard plastic coated quartz fiber uses high-purity quartz glass as the core material, with an outer layer of high-performance plastic coating (such as Teflon, PVC, etc.). It features excellent optical transmission performance and mechanical durability, making it suitable for stable signal transmission and sensing applications in harsh environments.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Fiber Model HPCS225 | HPCS225 |
| Fiber Model HPCS336 | HPCS336 |
| Fiber Model HPCS447 | HPCS447 |
| Fiber Model HPCS6610 | HPCS6610 |
| Fiber Model HPCS8810 | HPCS8810 |
| Fiber Model HPCS101015 | HPCS101015 |
| Fiber Model HPCS151520 | HPCS151520 |
| Core Material | Quartz |
| Cladding Material | Hard plastic coating |
| Core Diameter (μm) HPCS225 | 200μm |
| Core Diameter (μm) HPCS336 | 300μm |
| Core Diameter (μm) HPCS447 | 400μm |
| Core Diameter (μm) HPCS6610 | 600μm |
| Core Diameter (μm) HPCS8810 | 830μm |
| Core Diameter (μm) HPCS101015 | 1035μm |
| Core Diameter (μm) HPCS151520 | 1535μm |
| Cladding Diameter (μm) HPCS225 | 230μm |
| Cladding Diameter (μm) HPCS336 | 330μm |
| Cladding Diameter (μm) HPCS447 | 430μm |
| Cladding Diameter (μm) HPCS6610 | 630μm |
| Cladding Diameter (μm) HPCS8810 | 830μm |
| Cladding Diameter (μm) HPCS101015 | 1040μm |
| Cladding Diameter (μm) HPCS151520 | 2000μm |
| Buffer Layer Diameter (μm) HPCS225 | 500μm |
| Buffer Layer Diameter (μm) HPCS336 | 650μm |
| Buffer Layer Diameter (μm) HPCS447 | 730μm |
| Buffer Layer Diameter (μm) HPCS6610 | 1040μm |
| Buffer Layer Diameter (μm) HPCS8810 | 1040μm |
| Buffer Layer Diameter (μm) HPCS101015 | 1500μm |
| Buffer Layer Diameter (μm) HPCS151520 | 2000μm |
| Bending Strength (kpsi) | ≥100 (Four-axis bending) |
| Buffer Layer Material | Teflon (UV), Nylon (IR) |
| Buffer Layer Temperature (°C) | -40~200 (Teflon), -60~105 (Nylon)°C |
