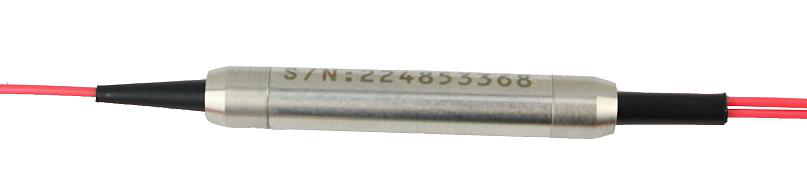

Filter WDMs 980/1064nm Series
The Filter WDMs 980/1064nm series utilizes thin-film filter technology to provide wavelength division multiplexing while maintaining high signal polarization extinction ratios. These devices are designed for low insertion loss and high isolation, making them ideal for fiber laser systems and optical communication applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength (nm) Reflect Port | 980(960~990) |
| Operating Wavelength (nm) Pass Port | 1064(1020~1080) |
| Insertion Loss (dB) Reflect Port | 0.5 (typical), 0.7 (max)dB |
| Insertion Loss (dB) Pass Port | 0.8 (typical), 1.0 (max)dB |
| Isolation (dB) Reflect Port | 15 (typical), 13 (min) |
| Isolation (dB) Pass Port | 33 (typical), 30 (min) |
| Extinction Ratio (dB) | 22dB |
| Return Loss (dB) | 50dB |
| Directivity (dB) | 55dB |
| Thermal Stability (dB/°C) | 0.005 |
| Fiber Type Reflect Port | PM980 or HI1060 |
| Fiber Type Pass Port | PM980 (Com & Pass Port) |
| Operating Temperature (°C) | -20~+85°C |
| Storage Temperature (°C) | -40~+85°C |

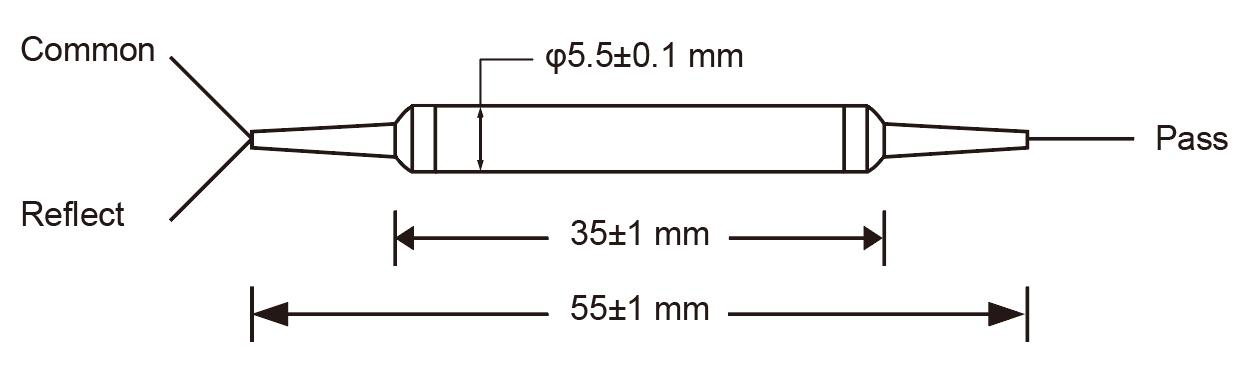

| Fiber Pigtail Type | 0.25mm, 0.9mm |
Applications
Key Features
Datasheet
