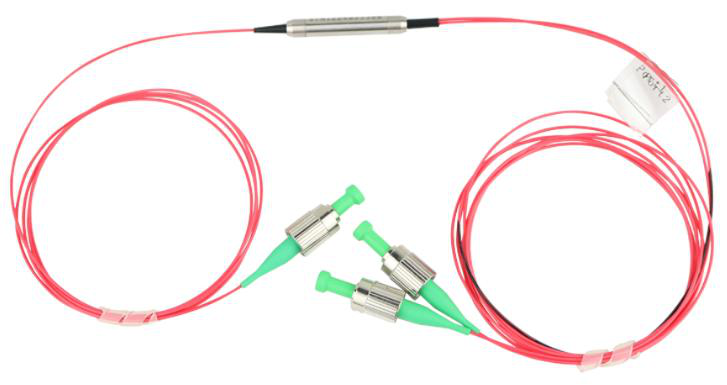

780-1550nm Polarization Maintaining Coupler

780-1550nm Polarization Maintaining Coupler

Supplier
Fibretop
Part Number
780-1550nm Polarization Maintaining Coupler
Category
Waveplates
Origin
China

The polarization maintaining coupler is a high-performance optical device designed for polarization-maintaining fiber applications. It covers a wide wavelength range from near-infrared to visible light. With a polarization-maintaining structure, it effectively preserves the input light's polarization state, ensuring minimal impact during transmission. It operates within the 780-1550nm range and is suitable for various optical systems, including optical amplifiers, optical sensors, and laser systems.

Specification Snapshot
Excess Loss (dB) 1x2
≤0.7, ≤0.8, ≤0.8
Excess Loss (dB) 2x2
≤0.8, ≤0.8, ≤0.8
Extinction Ratio (dB)
≥20
Return Loss (dB)
≥50
Package Dimensions
φ5.5×35mm
Request a Quote Download Datasheet Chat
Save to Favorites Save to Favorites

Overview

The polarization maintaining coupler is a high-performance optical device designed for polarization-maintaining fiber applications. It covers a wide wavelength range from near-infrared to visible light. With a polarization-maintaining structure, it effectively preserves the input light's polarization state, ensuring minimal impact during transmission. It operates within the 780-1550nm range and is suitable for various optical systems, including optical amplifiers, optical sensors, and laser systems.

Specifications

ParameterValue
Central Wavelength (nm) 1x21550, 1310, 1064, 980, 850, 780
Central Wavelength (nm) 2x21550, 1310, 1064, 980, 850, 780
Bandwidth (nm) 1x2±40, ±20, ±10
Bandwidth (nm) 2x2±40, ±20, ±10
Excess Loss (dB) 1x2≤0.7, ≤0.8, ≤0.8
Excess Loss (dB) 2x2≤0.8, ≤0.8, ≤0.8
Uniformity (dB) 1x2≤0.4, ≤0.5, ≤0.6
Uniformity (dB) 2x2≤0.5, ≤0.6, ≤0.8
Extinction Ratio (dB)≥20
Return Loss (dB)≥50
Maximum Optical Power (mW)500
Maximum Tensile Load (N)5

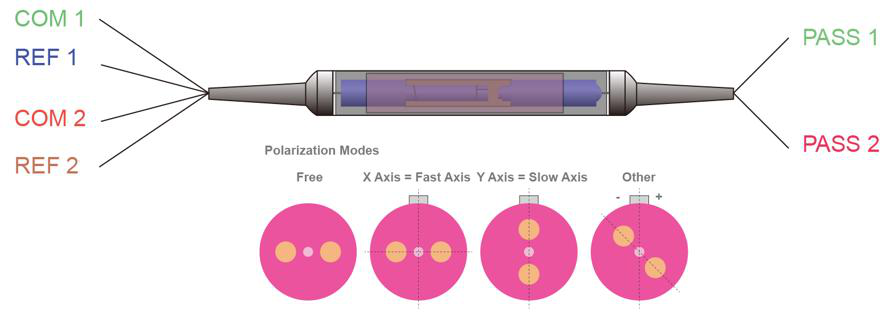

Fiber TypePM Panda fiber
Operating Temperature (°C)-5~+70
Storage Temperature (°C)-40~+85

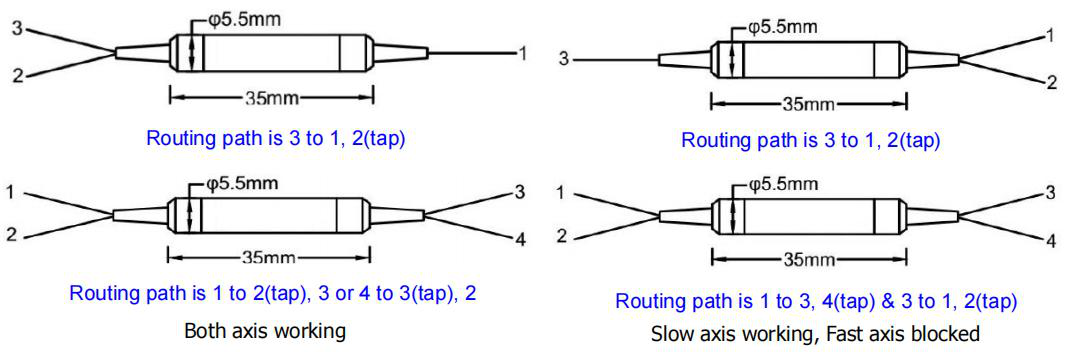

Package Dimensionsφ5.5×35mm
Fiber Tail Type0.9mm loose tube
Fiber Tail Length0.8m
Connector TypeFC/UPC, FC/APC, SC/APC

Applications

1. EDFA and laser amplifiers 2. Optical sensors 3. Optical communication systems 4. Power monitoring systems

Key Features

1. Low insertion loss 2. High extinction ratio 3. High stability and reliability

Datasheet

Product Datasheet
PDF
Download
