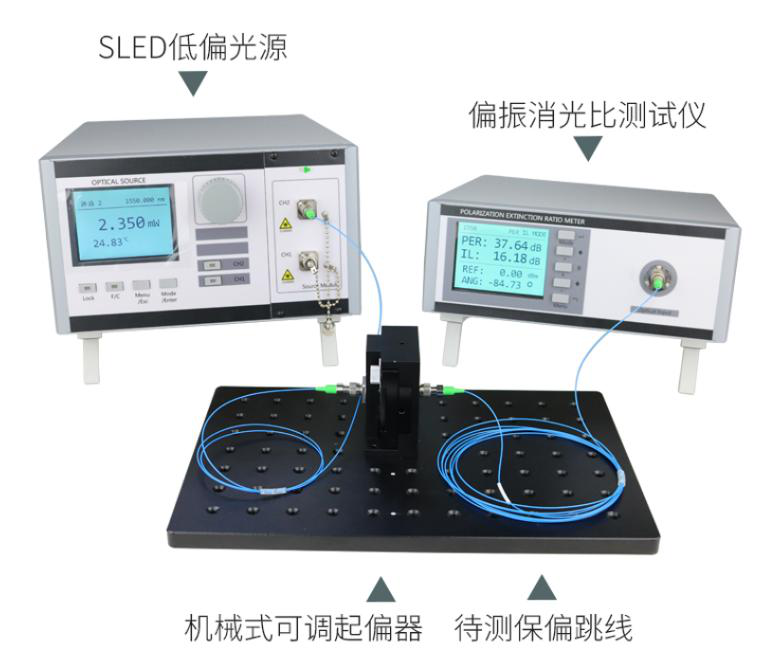

SLED Low Polarization Source and Polarization Extinction Ratio Test Platform
The SLED low polarization source features low polarization extinction ratio, meeting the production and testing requirements of polarization-maintaining devices. It provides stable output power and wavelength, making it ideal for research and production. Widely used in optical communication, optical sensing, and optical fiber applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Maximum Output Power (mW) | 2, 5, 10 adjustable |
| Polarization Extinction Ratio (dB) | ≤0.1 |
| Central Wavelength (nm) | 850, 980, 1064, 1310, 1550 adjustable |
| Spectral Width (nm) | 40~50 |
| Output Power Stability (dB) | ±0.05 (15min/1mW, 25°C), ±0.08 (8hour/1mW, 25°C) |
| Laser Type | SLED |
| Output Return Loss (dB) | ≥45 |
| TEC Stability (°C) | ±0.1 |
| TEC Working Range (°C) | ±10~±60 |
| Applicable Fiber Type | SM: 9/125 MM: 50/125, 62.5/125 |
| Light Source Interface | FC/APC (FC/PC optional) |
| Temperature Adjustment Accuracy (°C) | 0.01 |
| Power | AC220V 50Hz |
| Operating Temperature (°C) | 0~+50 |
| Storage Temperature (°C) | -40~+80 |
| Dimensions (mm) | 310×235×380 |
