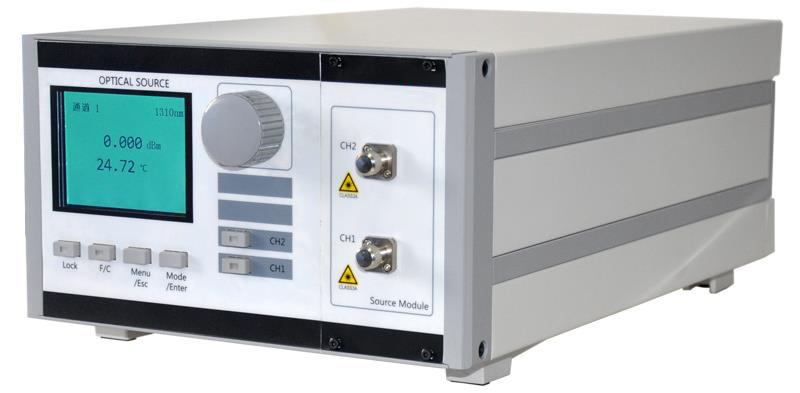

MY8001 Benchtop Stable Light Source

MY8001 Benchtop Stable Light Source

Supplier
Fibretop
Part Number
MY8001 Benchtop Stable Light Source
Category
Lamps
Origin
China

MY8001 benchtop stable light source utilizes unique Automatic Power Control (APC) and Automatic Temperature Control (ATC) technologies to ensure high output power stability and long-term reliability. It is suitable for single-wavelength output and can meet various testing requirements. Widely used in scientific research, optical fiber communication, production, and engineering fields.

Specification Snapshot
Output Return Loss (dB)
>45
Request a Quote Download Datasheet Chat
Save to Favorites Save to Favorites

Overview

MY8001 benchtop stable light source utilizes unique Automatic Power Control (APC) and Automatic Temperature Control (ATC) technologies to ensure high output power stability and long-term reliability. It is suitable for single-wavelength output and can meet various testing requirements. Widely used in scientific research, optical fiber communication, production, and engineering fields.

Specifications

ParameterValue
Laser TypeDFB or fixed wavelength
Operating Wavelength (nm)1310/1550 fixed wavelength
Maximum Output Power (mW)2, 5, 10 fixed wavelength
Output Power Stability (15min/10mW,25℃)±0.005
Output Power Stability (80hour/10mW,25℃)±0.025
Output Return Loss (dB)>45
TEC Stability (℃)±0.1
TEC Operating Range (℃)+20~+30
Optical InterfaceFC/APC (FC/PC optional)
Adjustment Step (Temperature)0.1, precision 0.01
Adjustment Step (Power)0.2, precision 0.02
Power SupplyAC220V, 50Hz
Operating Temperature (℃)0~+50
Storage Temperature (℃)-40~+80
Dimensions (W×D×H, mm)235×380×145
Weight (kg)<4

Applications

1. Scientific research 2. Optical fiber communication 3. Production 4. Engineering

Key Features

1. High output power stability, up to 0.005dB 2. Adjustable output power 3. Excellent wavelength stability 4. High precision APC and ATC circuits 5. LCD display for real-time parameters 6. CWDM or DWDM or other low wavelengths optional 7. Internal 1~4 wavelengths and up to 4 output ports optional 8. Provides two output modes

Datasheet

Product Datasheet
PDF
Download
