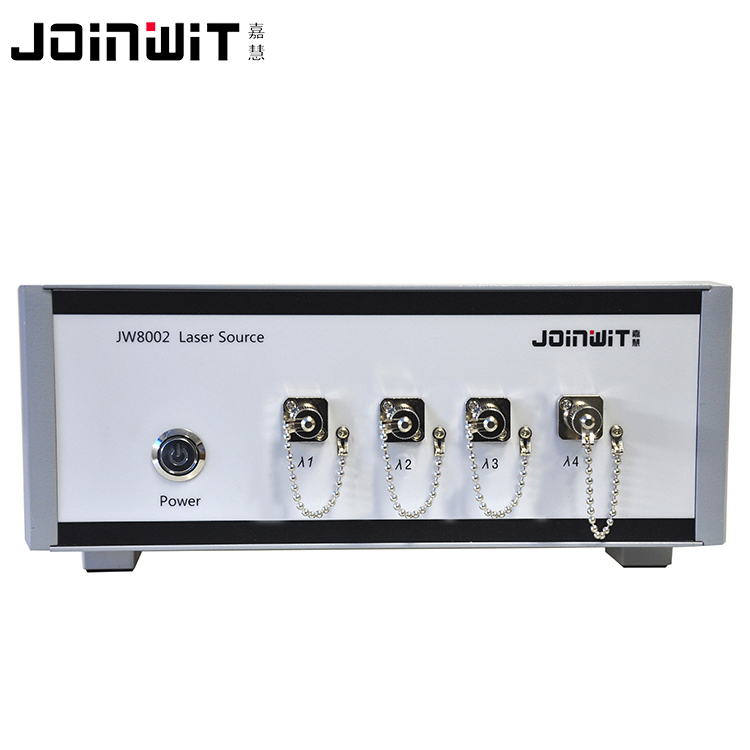

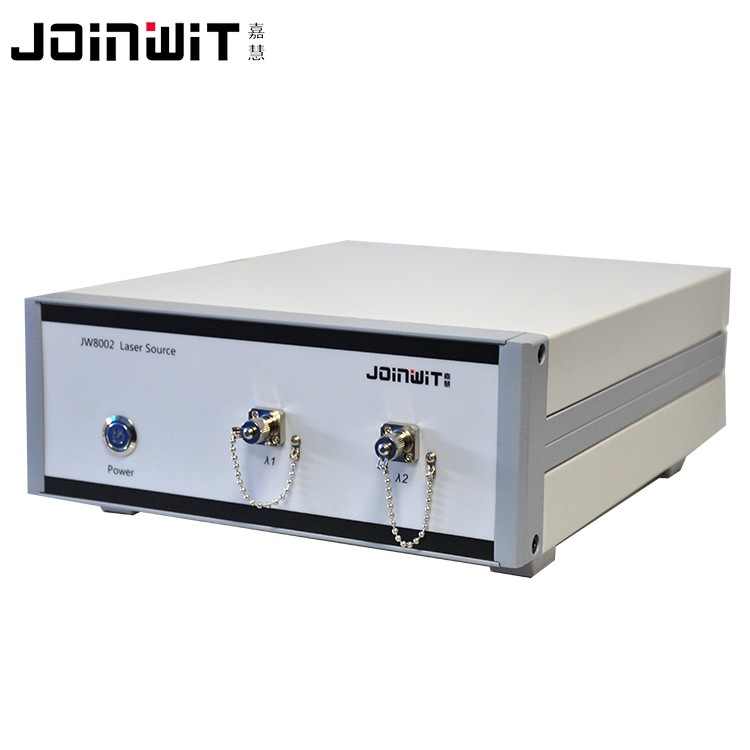

JW8002/8007 Benchtop Light Source (JW8007)
The JW8002/JW8007 are high-performance stable light sources developed by Shanghai Jiahui. They adopt APC (Automatic Power Control) and ATC (Automatic Temperature Control) technologies and feature excellent output stability and wavelength stability. They respectively offer benchtop and rack-mount installation options. They are ideal instruments for numerous optical device manufacturers, scientific research institutions, and university laboratories in application fields such as measuring optical device characteristics, device aging, monitoring, and experiments.
Specification Snapshot
Operating Temperature
0~50 °C
Weight
<3.5 kg
Request a Quote
Download Datasheet
Overview
The JW8002/JW8007 are high-performance stable light sources developed by Shanghai Jiahui. They adopt APC (Automatic Power Control) and ATC (Automatic Temperature Control) technologies and feature excellent output stability and wavelength stability. They respectively offer benchtop and rack-mount installation options. They are ideal instruments for numerous optical device manufacturers, scientific research institutions, and university laboratories in application fields such as measuring optical device characteristics, device aging, monitoring, and experiments.
Specifications
| Parameter | Value |
|---|---|
| Product Type | Rack-mount |
| Number of Channels | 1、2、3、4 |
| Output Power | 2 mW, 10 mW or customized |
| Operating wavelength | 1310 nm, 1550 nm or customized |
| Stability [15min/2mW,25℃;8h/2mW,25℃] | ±0.01 dB(15 min/2 mW,25 ℃) ±0.05 dB(8 h/2 mW,25 ℃) |
| Laser Type | DFB or customized |
| Output Return Loss | >45 dB |
| TEC Stability | ±0.1 ℃ |
| TEC Operating Range | 20~30 ℃ |
| Light source interface [FC/PC optional] | FC/APC (FC/PC optional) |
| Operating power supply [AC;DC] | 220 V AC or DC 48 V |
| Operating Temperature | 0~50 °C |
| Storage Temperature | -40~80 °C |
| External Dimensions | 483 mm × 200 mm × 44 mm |
| Weight | <3.5 kg |
Key Features
1. Output power stability reaches ±0.005dB; 2. High output wavelength stability; 3. Output power individually adjustable; 4. High-precision APC and ATC control circuits; 5. DFB/FP/LED/VCSEL and other laser types selectable; 6. Flexible configuration of 1~4 channels
Datasheet
Product Datasheet
PDF
Supplier Information
Shanghai Joinwit Optoelectronic Technology Co., Ltd. was established in 1998, specializing in the development of optoelectronic testing instruments. The company has passed ISO9001 quality system certification, 14001 environmental system certification, and Shanghai High-tech Enterprise certification, and has obtained multiple technical patents and scientific achievements in the field of optoelectronic testing.
The company's main products include light sources, optical power meters, fiber identifiers, optical talk sets, variable optical attenuators, OTDRs, insertion return loss testers, polarization extinction ratio testers, laser aging test systems, fiber optic sensing coil test systems, multi-channel comprehensive testers and other optoelectronic testing/monitoring equipment. Products are widely used in the construction and maintenance of optical communication and optical sensing networks, production of optical components/equipment, etc. Some products are exported overseas, and have won the trust of customers at home and abroad with reliable quality and professional services.
After years of practice and innovation, the company has accumulated a large number of professional technologies and mature solutions in light source control, optical power detection, polarization state control/analysis, optoelectronic testing system integration, etc. While providing standardized products, it can also provide personalized product customization, cooperative development and other services according to customer needs.
Shanghai Joinwit is located at No. 168, Huancheng North Road, Fengxian District, Shanghai, with offices in Shenzhen, Wuhan and Chengdu. We warmly welcome domestic and foreign customers to visit and guide, discuss cooperation, and create new opportunities in the industry.
