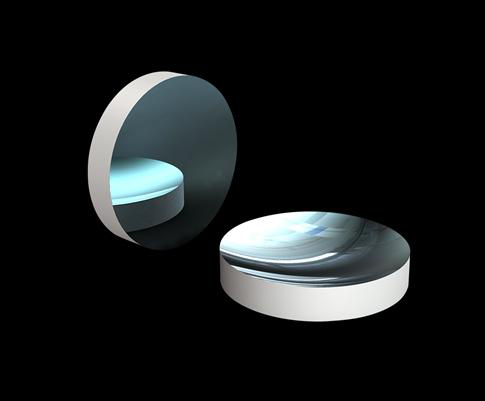

Optical Mirror
High-quality optical mirror made from BK7 or fused silica, suitable for various optical applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material | BK7/fused silica |
| Size(mm) | φ23 |
| Size Tolerance(mm) | ±0.01-0.05mm |
| Surface Quality | 40-20 |
| Aperture | 3 |
| Center Thickness Tolerance | ±0.01-0.05mm |
| Reflectivity | >99% |
| Wavelength(nm) | Visible light (UV/IR, etc.) |
| Coating | Gold/Aluminum/Silver/Dielectric coating |
Applications
Key Features
Datasheet
